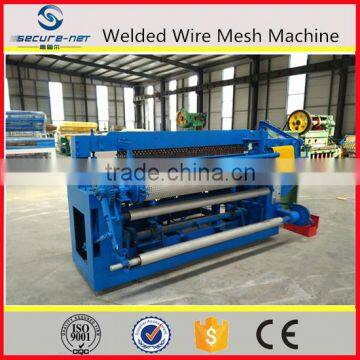

Best price automatic steel wire electric welding net machine
Characteristics of automatic steel wire electric welding net machine
Longitude wire and cross wire are both feeded from wire coils automatically. A special positioning device adopted, the automatic steel wire electric welding net machine can achieve accurate wire feeding, uniform mesh, faster welding speed, stable wire feeding and reliable wire length. Synchronousclutch wire feeding mechanism used instead of intermittent drive, the machine is low-noisy and it has low mechanical failure rate. Meanwhile, the improved new machine is more reasonable designed and easy to operate. With stable performance, machine' life time is also prolonged. Besides saving line wire materials, welding speed and mesh quality are both improved.
Main parameter of automatic steel wire electric welding net machine
| Type 1 | Type 2 | Type 3 | Type 4 | |
| Wire diameter | 0.4-0.65mm | 0.6-1.4mm | 0.6-1.8mm | 1.2-2.5mm |
| Net width | 914.4mm; 1000mm |
1219mm(4feet); 1524mm(5feet) |
1219mm(4feet); 1524mm(5feet) |
1919.2mm;1524mm; 1828.8mm;2133.6mm |
| Mesh |
6.35-12.7mm (1/4″-1/2″) |
19.05mm (3/4″) |
12.7-110.6mm (1/2″-4″) |
25.4-110.6mm (1″-4″) |
| Voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Motor power | 2.2Kw | 2.2Kw | 2.2Kw | 4.0Kw |
| Welding speed | 75 times/min | 120 times/min | 120 times/min | 80 times/min |
| Transformers | 50Kva*3 | 65Kva*5 | 65Kva*4/65Kva*5 | 65Kva*4/65Kva*5 |
| Overall dimension | 2.3*1.3*1.4m | 3.0*1.75*1.65m |
2.0*1.50*1.6m 3.0*1.75*1.65m |
2.0*1.50*1.6m 3.0*1.75*1.65m |
| Weight | 1.5 T | 2.5 T | 2.0 T;2.5 T | 2.0 T;2.5 T;3.0 T;3.5 T |
Application of automatic steel wire electric welding net machine
The automatic steel wire electric welding net machine can be used to screen, corn, animal cage net, breeding net, net garden and building net.
Package of automatic steel wire electric welding net machine
The automatic steel wire electric welding net machine is packaged by plastic film and wooden box.
1. The main machine is usually packaged by plastic film and fixed in the container by steel wire rope to make it stable.
2. The spare parts and control cabinet are loaded in wooden box.
3. One 20 feet or 40 feet container needed.
Automatic steel wire electric welding net machine
1. Warranty: 12 months after machine installed except vulnerable parts. Under warranty, we'll change broken part for free if damage caused by machine itself.
2. Technician Number: one per machine
3. 24 hours' hotline service.
4. Installation, training & maintenance: we provide complete installation instructions and circuit diagram. If needed, we'll send best technician to your factory for installation and training.
