Galvanized palisade fencing supere econo steel high security fence

Galvanized palisade fencing supere econo steel high security fence

>>>Product description<<<

Galvanized palisade fencing is a great solution for locations which need to provide a high level of security.This permanent security fencing system offers great strength and longevity and is perhaps the most traditional form of security fencing.

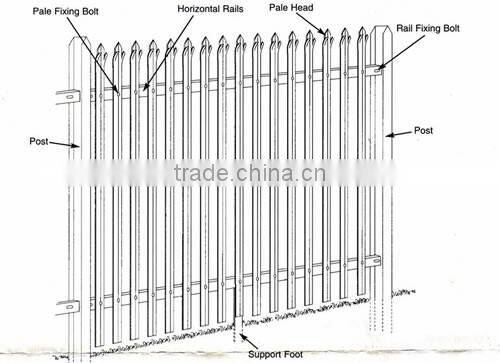

1) A standard palisade fence panel is constructed from hot and cold rolled steel sections supplied for assembly on site.

2)palisade fence panels consist of 17 vertical pales manufactured in "D" or "W" profile with a choice of tops. The pales are fixed to 2 pieces of 50x50x5mm rolled steel angle horizontals which are supported by 100 x 55x5m joist posts.

3) A fish plate passes through a slot in the post and secures the horizontal rail captive in its position.

4) The pales are connected to the horizontals to form the panel and are held securely together by utilizing vandal resistant security fasteners.

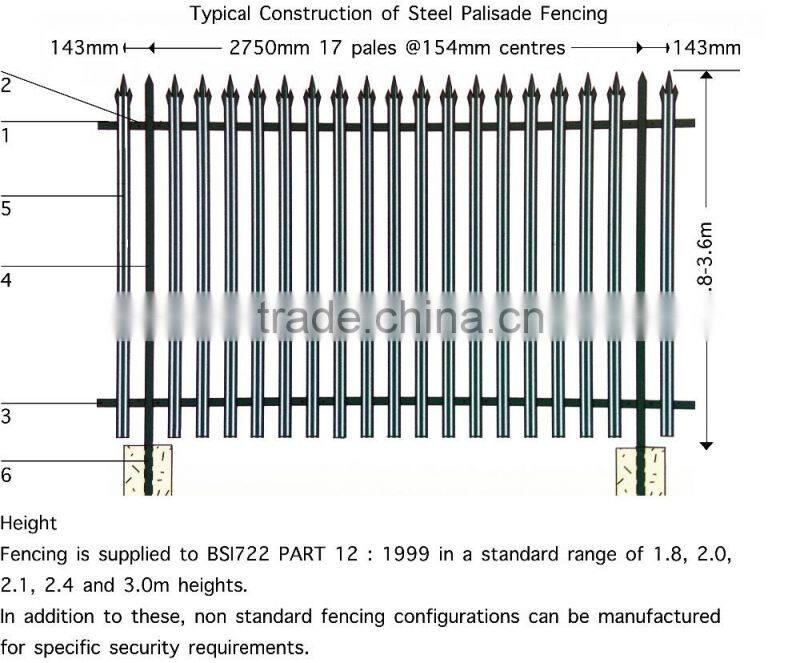

5)Palisade fence is supplied in 2.75m wide standard panels for easy assembly on site.

6) Special panels and posts to step or rack can be supplied if required.

7) Non standard posts for cranking over walls, or base plated for fixing to concrete are also available.

>>>Specification<<<

>>>Details<<<

>>>Technology<<<

Producing process

>>>Features<<<

Galvanized palisade fencing smoothly flows and adjusts to the landscape without the need for stair stepping with it's hidden pin hinge system that show no visible fasteners.
Secure design that has perfectly smooth rails on both sides - no unsightly picket-to-rail connection.
Security fasteners on all brackets add security to palisade high security fencing installations while maintaining a clean and aesthetic appearance.
surface treatment of 100% pre-galvanized coated, which means virtually maintenance free.

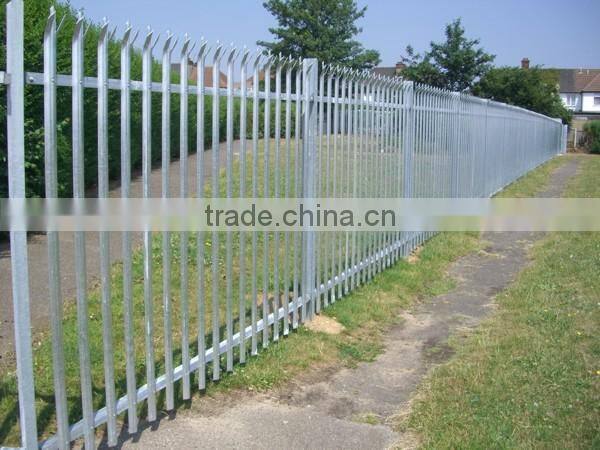

>>>Project picture<<<

>>>Technology control<<<

From raw material to product finishing, each step we will have a strict technology control, so the product quality we can guarantee.

>>>Installation<<<

M12 permacone nuts and bolts connect the rails to a fish plate that slides through slots in the posts
M12 Cup square bolts with Permacone type nuts (shear off)

>>>Packaging&shipping<<<

Piece packed with shrink film, several pieces in a bundle. Bubble Wrap for the bundle and polybags for the outside packing.
