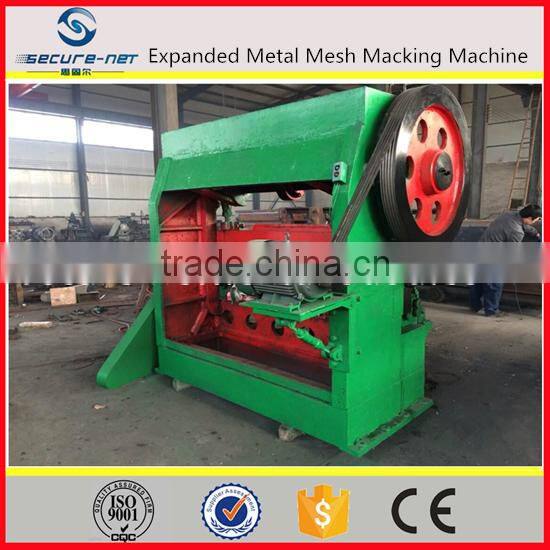

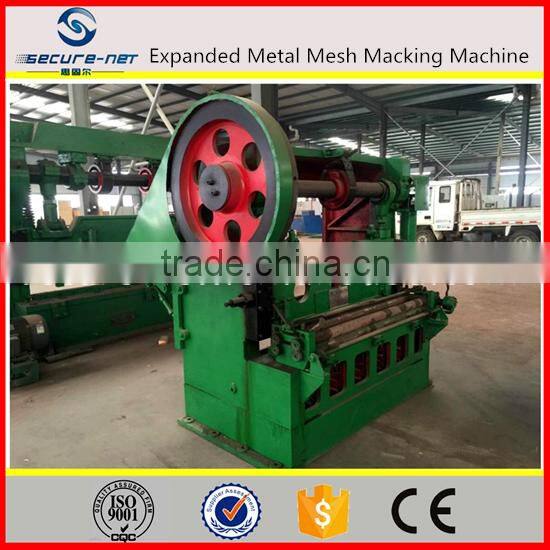

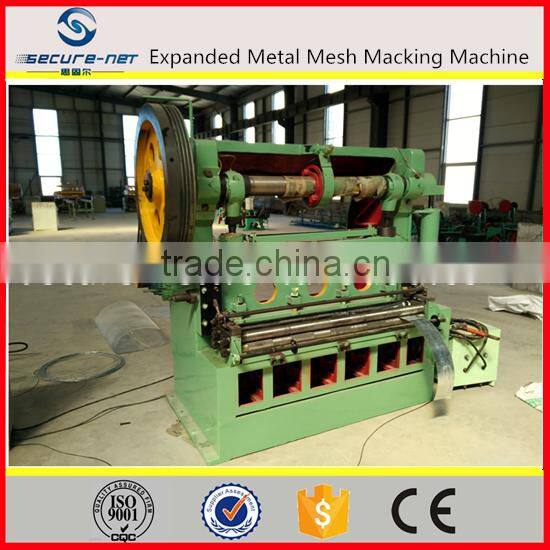

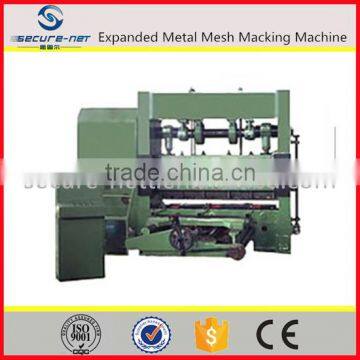

Professional perforated metal mesh machine manufacturer
Characteristics of perforated metal mesh machine
1. Mature experienced technology as well as new technology are adopted by our expanded perforated metal mesh machine, such as full-automatic lubricating and NC stepping motor feeding.
2. The expanded effect, control ability, stability and safety of machine are greatly improved.
3. Machine structure is more reasonable and elegant. Beside, energy is saved.
Suitable processing material of perforated metal mesh machine
Low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloy sheet, copper sheet and Nickel sheet.
Application of perforated metal mesh machine
Perforated metal mesh can be used in variety of fields such as filter, architecture and building, screen and fence, flooring and furniture, etc.
Main parameter of perforated metal mesh machine
| Model | 25-6.3A | 25-6.3B | 25-16A | 25-16B | 25-25 | 25-63A | 25-63B | 25-100 |
| Material thickness | ≤1.0mm | ≤1.0mm | 0.2-1mm | ≤1.0mm | ≤1.5mm | 0.5-2.5mm | 0.5-3mm | ≤6.0mm |
| Max punching width | 500/600mm | 500/600mm | 1000mm | 1000mm | 1250mm | 2000mm | 2000mm | 2000/2500 |
| Mesh long intercept | ≤20mm | 15mm | ≤25mm | ≤25mm | ≤30mm | 100mm | 150mm | ≤200mm |
| Feeding distance | 0-1.5mm | 0-1.6mm | 0-1.2mm | 0-1.6mm | 0-1.2mm | 0-4mm | 0-4mm | 0-4mm |
| Impact velocity | 195 beats/min | 195-320 beats/min | 150 beats/min | 250 beats/min | 150 beats/min | 70 beats/min | 45 beats/min | 60 beats/min |
| Motor power | 2.2KW | 2.2KW | 3.0KW | 5.5KW | 4KW | 11KW | 11KW | 18.5KW 2.5KW 22KW |
| Weight | 0.95T | 0.95T | 2.3T | 2.05T | 3.5T | 11.5T | 11.5T | 2M 13T 2.5M 14T |
Dimension (mxmxm) | 1.09x0.71x1.450 | 1.05x0.71x1.45 | 1.74x1.4x1.5 | 1.74x0.85x1.63 | 1.94x1.6x2.01 | 3.5x2.4x2.3 | 3.5x2.4x2.3 | 2M 3.6x3.1x2.28 2.5M3.6x3.7x2.28 |
Application of perforated metal mesh machine

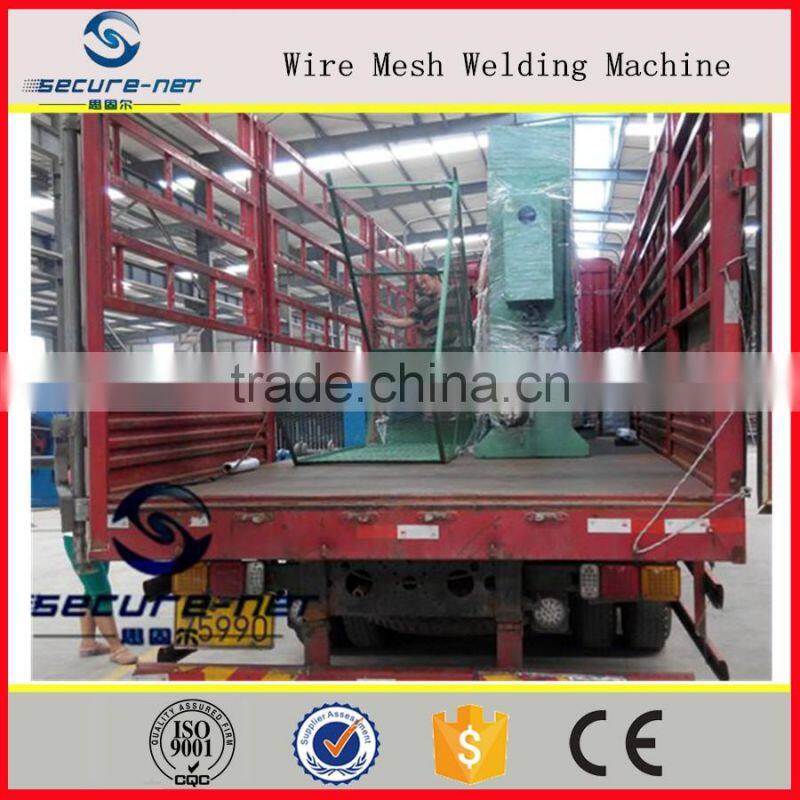

This perforated metal mesh making machine packaged by plastic film and wooden box.
1. The main machine is usually packaged by plastic film and fixed in the container by steel wire rope to make it stable.
2. The spare parts and control cabinet are loaded in wooden box.
3. One 20 feet or 40 feet container needed.
Perforated metal mesh machine
1. Warranty: 12 months after machine installed except vulnerable parts. Under warranty, we'll change broken part for free if damage caused by machine itself.
2. Technician Number: one per machine
3. 24 hours' hotline service.
4. Installation, training & maintenance: we provide complete installation instructions and circuit diagram. If needed, we'll send best technician to your factory for installation and training.
Hebei Secure-Nett Fence Facility Co., Ltd.
1. Company History
founded in 2000, certified to ISO 9001 in 2004.
16 years' experience in machinery making
self-researched and developed center,11 national patents
100-200 workers
2. Main machine products:
(Customized machines available)
building mesh welding machine,
reinforcing mesh welding machine,
fence mesh welding machine,
brick force mesh welding machine,
gabion mesh machine,
chain link fence machine,
razor barbed wire machine,
expand mesh machine,
fully automatic wire mesh welding machine
3. Global market
With competitive price and high quality, our machines are popular home and abroad. Until now, we have been exported to over 30 countries and areas.
You are warmly welcomed to visit our factory!
