expanded sheet metal machine
Why choose us:
1.Have professional machine design department
2.Have electronic Research&Development department
3.Have ISO9001:2008 certification
4.Have professional debuggers
5.Have After-sales service team(24hours online)

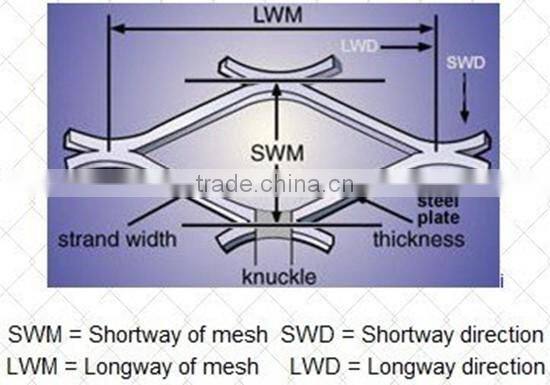

Expanded Metal Mesh Profile Drawings

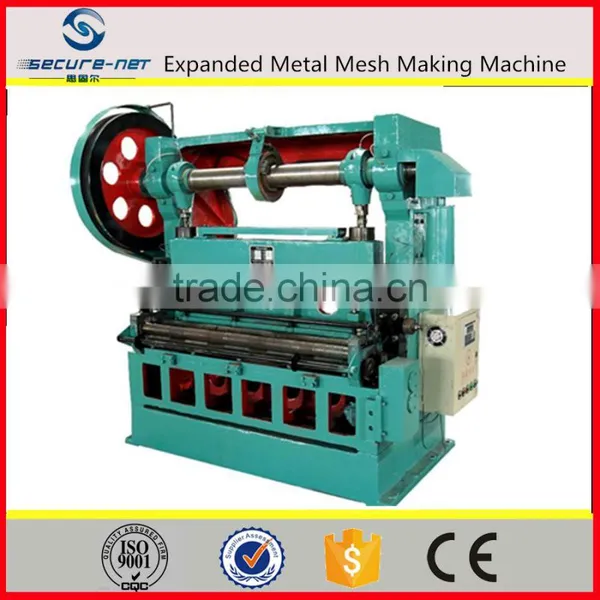

Introduction about the machine

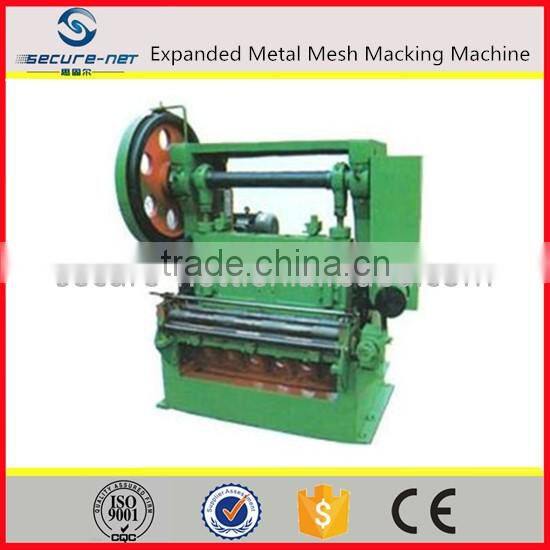

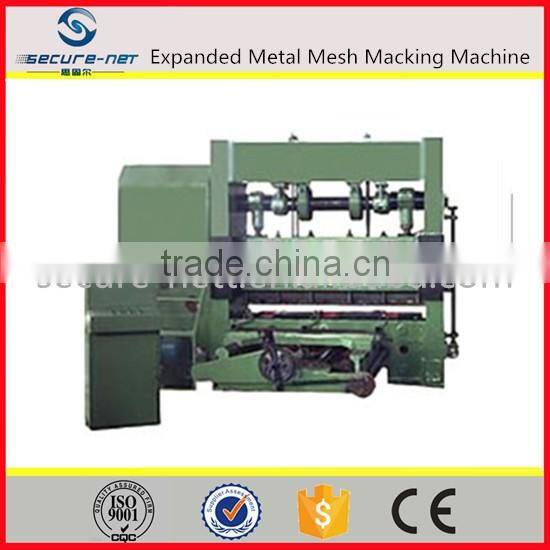

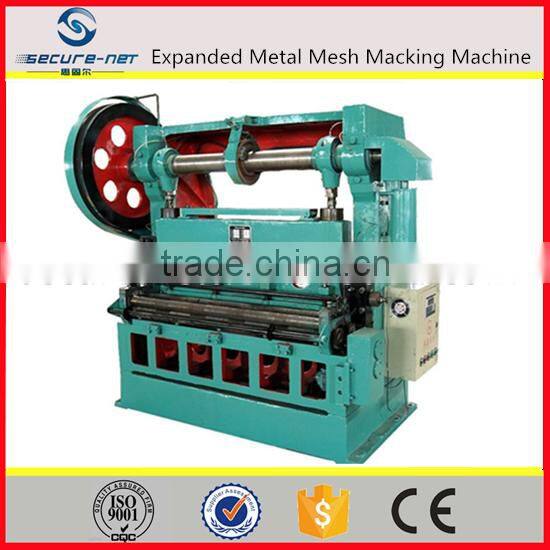

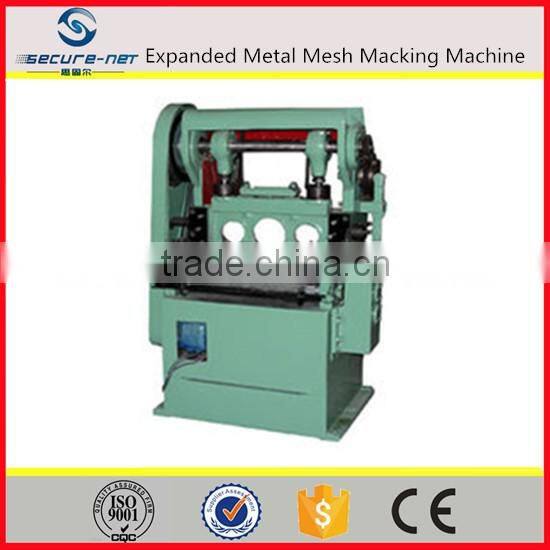

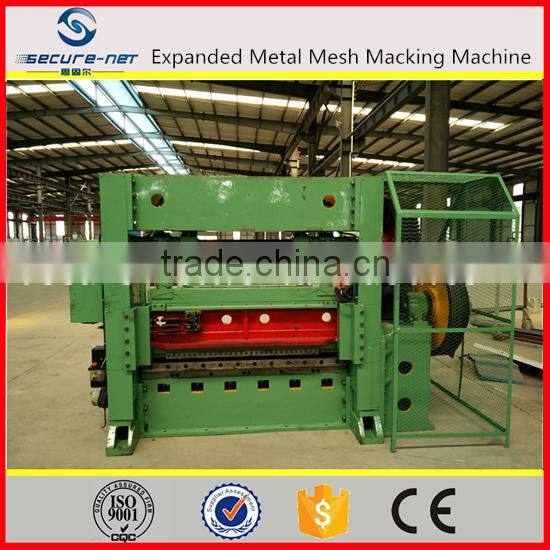

expanded sheet metal machine adopts mature technologies of the past as well as new technology,such as full-automatic lubricating etc. It has good effect, control ability,stability and safety has been greatly increased. It has reasonable structure, elegant appearance. energy saving.
Suitable material
low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloy sheet, copper sheet, Nickel sheet.
Different types for expanded machine
Small type: 6.3T , 16T ,25T Middle type: 40T , 63T Heavy type: 100T , 160T ,200T
Technical Parameter
(1) 6.3T expanded metal mesh machine
| No | Type | JQ25-6.3 |
| 1 | Material Thickness | Max1.0 |
| 2 | Net Width | Max 600 |
| 3 | Punching Speed | 300 |
| 4 | Feeding Distance | 0-10 |
| 5 | Length of Mesh | Max20 |
| 6 | Motor Power | 2.2 |
| 7 | Weight | 0.95 |
| 8 | Dimension | 950*570*1780 |
(2) 16T expanded metal mesh machine
| No | Type | JQ25-16 |
| 1 | Material Thickness | Max1.0 |
| 2 | Net Width | Max 1000 |
| 3 | Punching Speed | 160 |
| 4 | Feeding Distance | 0-10 |
| 5 | Length of Mesh | Max30 |
| 6 | Motor Power | 3.0 |
| 7 | Weight | 2.0 |
| 8 | Dimension | 1800*1320*1550 |
(3) 25T expanded metal mesh machine
| No | Type | JQ25-25 |
| 1 | Material Thickness | Max1.5 |
| 2 | Net Width | Max 1000 |
| 3 | Punching Speed | 160 |
| 4 | Feeding Distance | 0-10 |
| 5 | Length of Mesh | Max40 |
| 6 | Motor Power | 4.0 |
| 7 | Weight | 3.0 |
| 8 | Dimension | 1940*1600*2010 |
(4) 40T expanded metal mesh machine
| No | Type | JQ25-40 |
| 1 | Material Thickness | Max2.5 |
| 2 | Net Width | Max 1500 |
| 3 | Punching Speed | 80 |
| 4 | Feeding Distance | 0-10 |
| 5 | Length of Mesh | Max80 |
| 6 | Motor Power | 11 |
| 7 | Weight | 6 |
| 8 | Dimension | 2870*990*2140 |
(5) 63T expanded metal mesh machine
| No | Type | JQ25-63 |
| 1 | Material Thickness | Max4.0 |
| 2 | Net Width | Max 2000 |
| 3 | Punching Speed | 67 |
| 4 | Feeding Distance | 0-20 |
| 5 | Length of Mesh | Max 200 |
| 6 | Motor Power | 11 |
| 7 | Weight | 10 |
| 8 | Dimension | 2400*3500*2300 |
(6) 100T expanded metal mesh machine
| No | Type | JQ25-100 |
| 1 | Material Thickness | Max6.0 |
| 2 | Net Width | Max 2500 |
| 3 | Punching Speed | 55 |
| 4 | Feeding Distance | 0-20 |
| 5 | Length of Mesh | Max 200 |
| 6 | Motor Power | 15 |
| 7 | Weight | 12 |
| 8 | Dimension | 3600*2500*3000 |
Expanded machine application

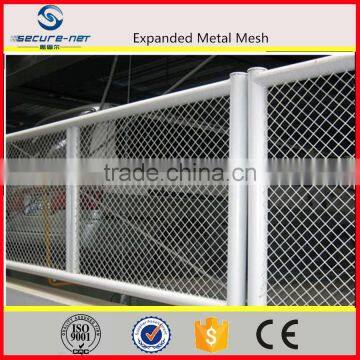

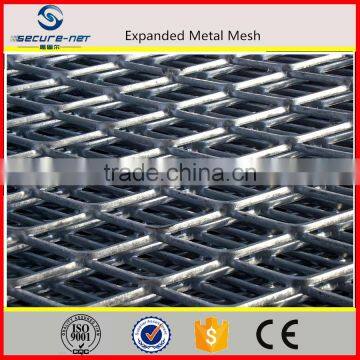

Expanded metal mesh can be used in a variety of areas, such as filter,architecture and building ,Screen and fence flooring and furniture,And it also can be used in many areas you can't guess.
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is nude packing or plastic packing.
3.Also can do as customer's request.
1.If the buyer need,we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination pory
2.Maintenance period:One year for whole machine except vulnerable parts
3.The number of technical persons :one technician per machine
4.The fees:the buyer have to pay the technical salary 100 USD per day,and the round-trip tiket,accommodation and other related fees
During the maintenance period.if the parts are broken caused by the product problem.seller will offer the parts for free,if you need we assign the tachicians to your factory ,then you will pay some related fees.
expanded sheet metal machine
1.We are professional wire mesh machine manufacture with 16 years experiences in China.
2.We are located in Anping ,The wire mesh base in China, with huge wire mesh industry support, All of our machines comply with international quality standards and customers' needs ,and are greatly appreciated in variety of markets all over the world.

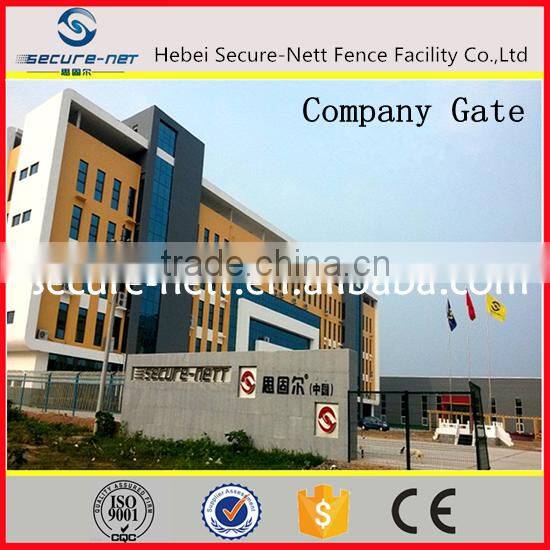

2.Hebei Secure-Nett Fence Facility Co. ,Ltd .Established in2000. In 2002 the company passed the ISO9001 quality management system certification, the end of 2006 the company has made the right to export. main products:Poultry cage welding machine, Construction mesh welding machine, Fence mesh welding machine, Reinforcing mesh welding machine ,Razor barbed wire machine ,Chain link fence machine ,Expanded machine ,Barbed wire machine and related accessories.

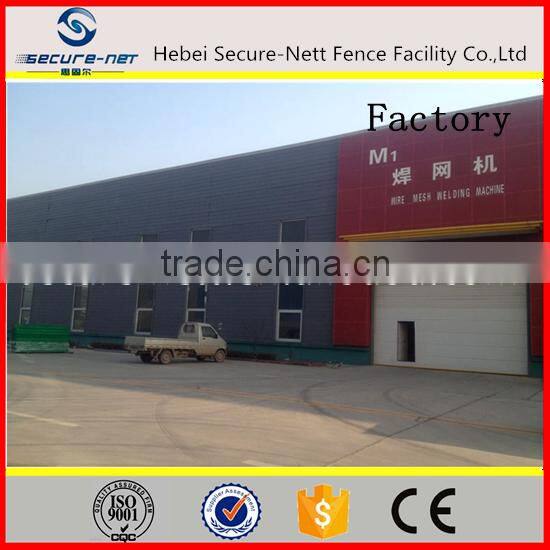

Welcome to visit our office and factory .
If you have any problem ,let me know,will help you try my best.
