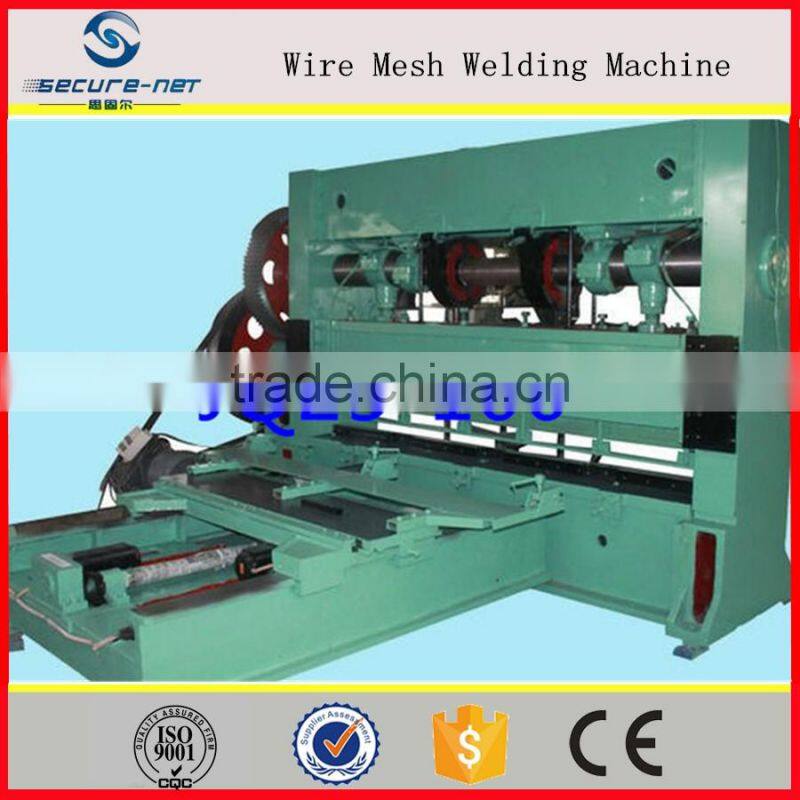

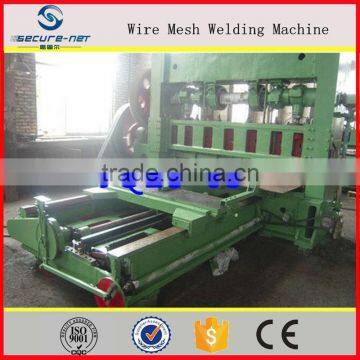

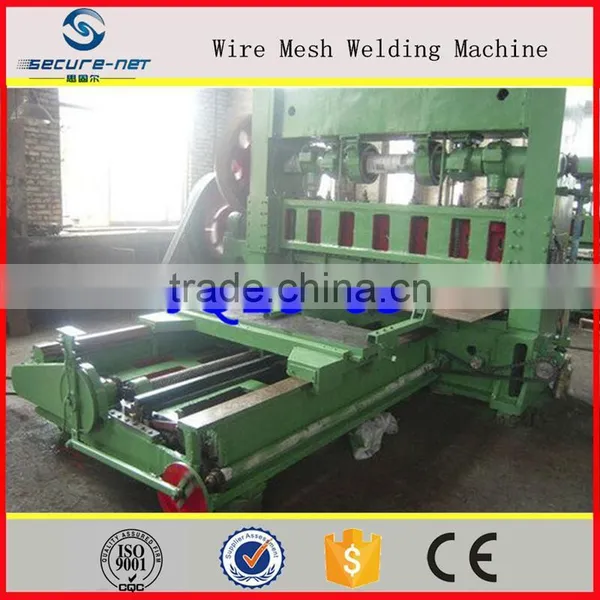

Automatic expanded metal mesh machine manufacturing
Tchnique parameter of the expanded metal mesh machine

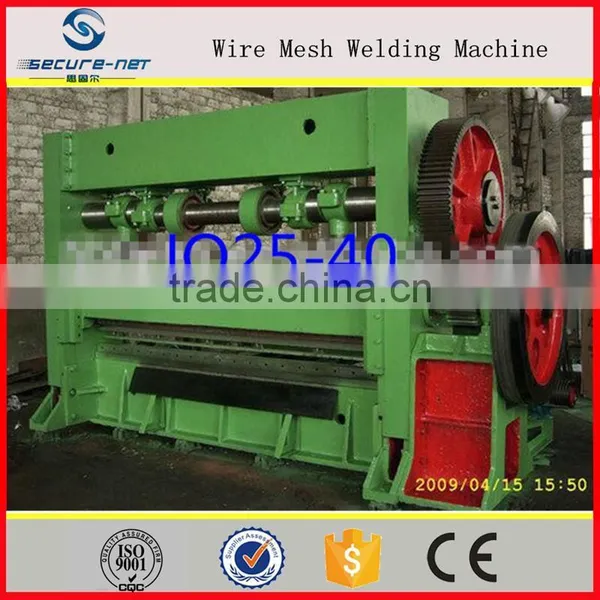

Type JQ25-6.3 JQ25-16 JO25-25 JQ25-40 JQ25-63 JQ25-100
material thickness(mm) max1.0 max1.0 max1.5 max2.5 max4.0 max6.0
net width(mm) max600 max1000 max1250 max1500 max2000 max2500
punching times/min 180 290 160 100 85 65
feedind distance(mm) 0-10 0-10 0-10 0-10 0-20 0-20
length of mesh(mm) max20 max25 max30 max80 max200 max200
motor power(kw) 2.2 3.0 4.0 11.0 11.0 15.0
weight(t) 0.95 2 3 6 10 12
oeveral diamension(mm) 950*570*1780 1800*1320*1550 1940*1600*2010 2870*990*2140 2400*3500*2300 3600*2500*3000
The advantages of expanded metal machine :
1 Advantages:This machine adopts the mature technologies of the past as well as new technologies such as:fully-automatic lubricating,NCstepping motor feedind,etc:it has good effect;controllability,stability,stability and safty has been greatly increased;it has reasonable structure,elegant appearance,it is environmental production and energy saving.
2 It is suitable for the material as low carbon steel,aluminium sheet,stainless steel sheet,aluminium magnesiumalloy sheet,copper sheet,Nickel sheet.
3 Finished product usage:usage with concrete in buildings and construction,maintenance of equipments,making of arts and crafts,covering screen for first class sound case.Also fencing for super highway ,studio,highway.Hiahway expanded metal can be used as step msh of oil tanks,working plattform,corridor and walking road for heavy model equipment,boiler,petroleum and mine well,automobile vehicle vehicles,big ships.

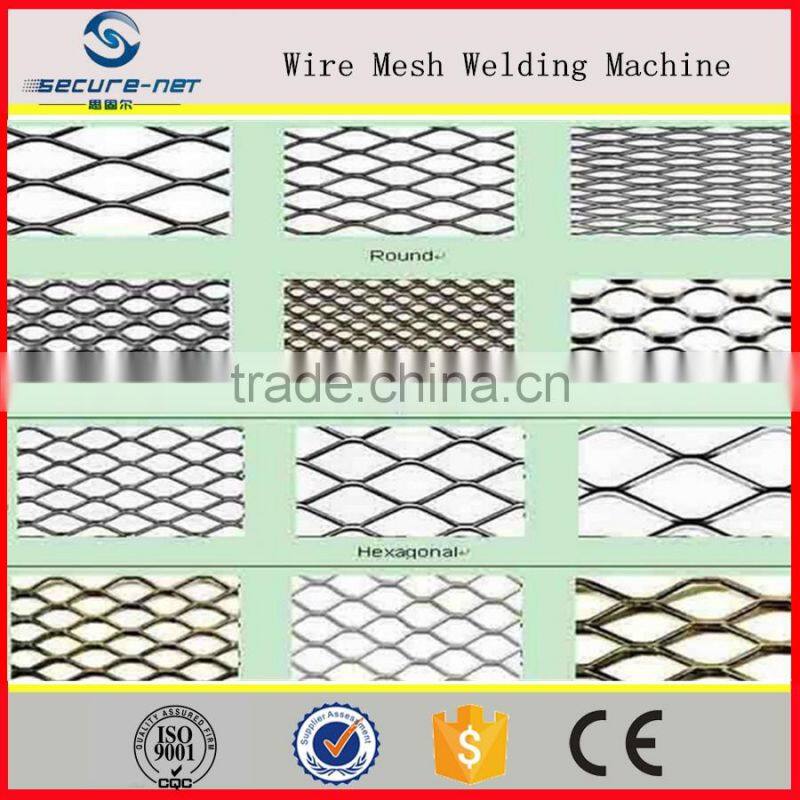

Production of the mesh
Our honor
Detailed Images
|

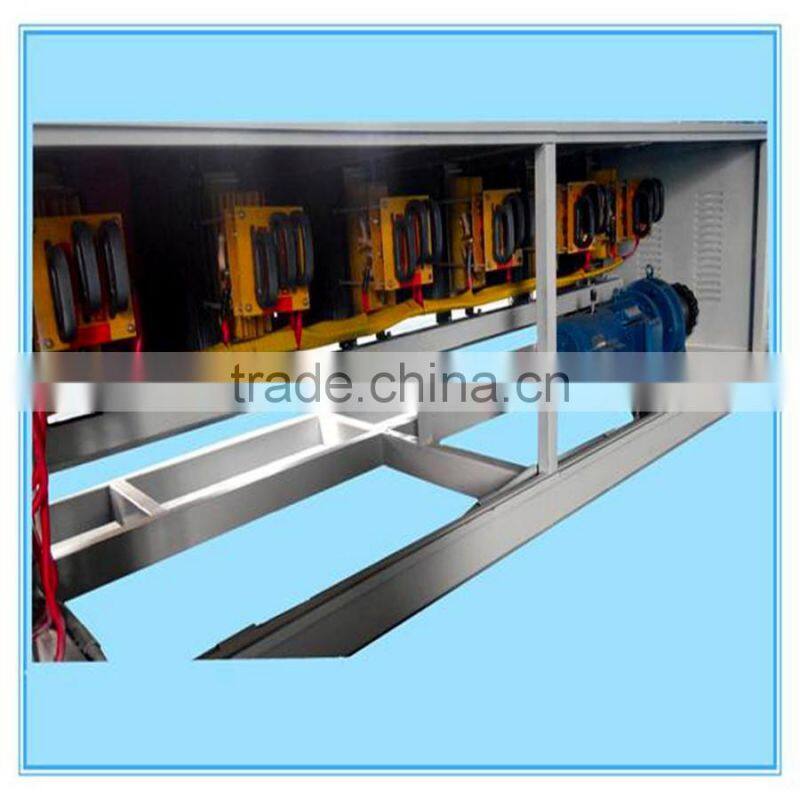

transformer |

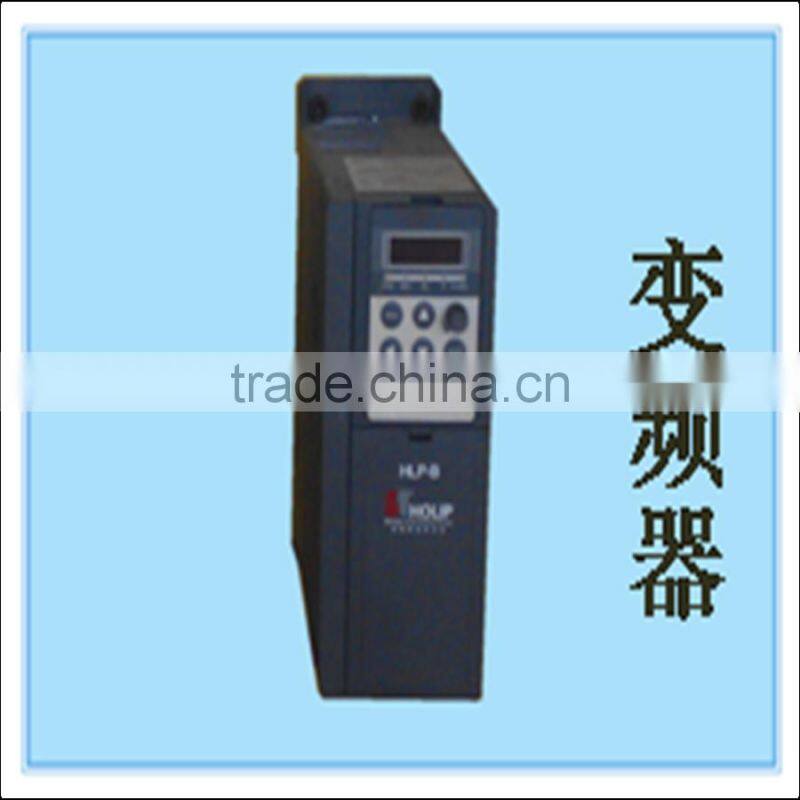

| inverter |
|
|
Circuit board |
|

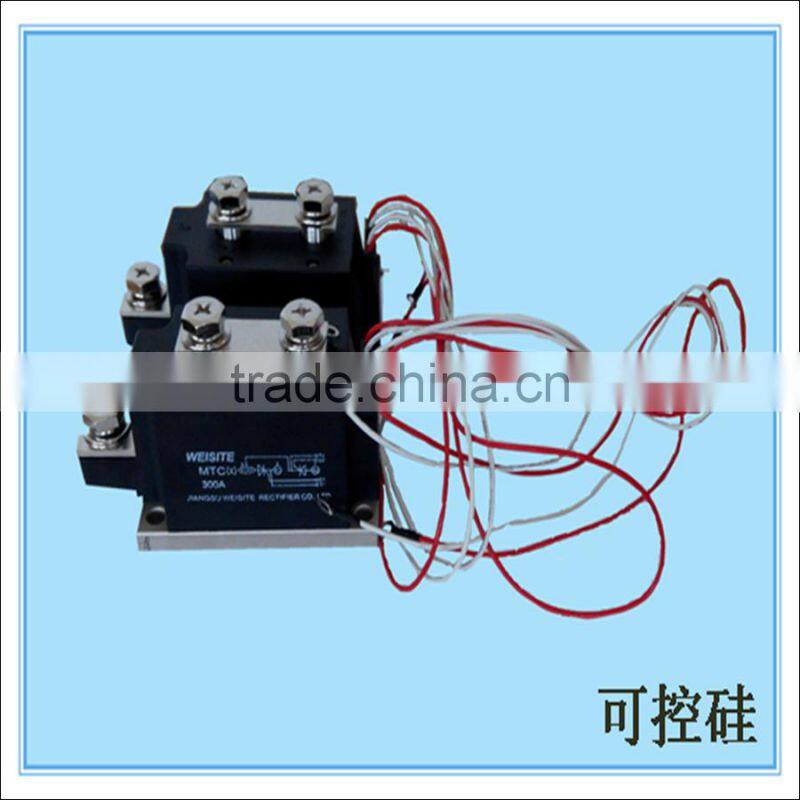

Silicon controlled rectifier |
|
Our Service
1 .Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place to
debug the machine and providing the training in 30 days after the machines
arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will
assign the expertised staff to your company. And the fees,such as round-trip
tickets, accomodation etc, are all in your account.
Packing & Delivery
Host with plastic film packaging, numerical control cabinet packed in wooden cases.
We can do all kinds of welding machine according you requirment
Contace me
Saleman:Gail
Tel:86-18031855078
Fax:86-031185245076
Wechat:18832128285
Whatsapp:+18832128285
