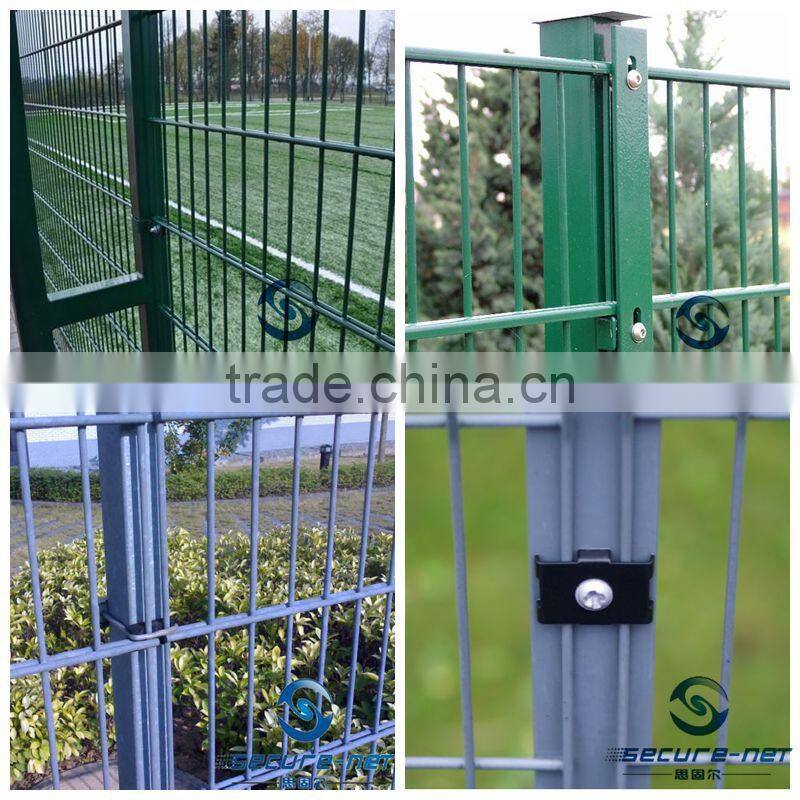

private garden use beautiful hot sale iron 8/6/8 double beam wire mesh fence
8/6/8 double wire mesh fence the horizontal double wires are an added security benefit as it more than doubles the difficulty to cut through the mesh panels.
8/6/8 double wire mesh fence is ideal for the perimeter of any premises needing a fully secured boundary as well as a neat, uniform finish for street appeal. This robust system creates an excellent first impression for visitors and by-passers.
8/6/8 double wire mesh fence make a good addition to your city,become a beautiful scenery line.
Specification of 8/6/8 double wire mesh fence
1)Column and mesh technology parameter
Raw material performance |
mesh wire tensile strength:Mpa |
500—550 Mpa |
column plate tensile strength:Mpa |
≥400 Mpa |
|
column steel strip elongation:% |
26%≤elongation≤40% |
|
Grid solder joint tensile resistance(N) |
mesh |
3000-5000 N |
2)Common Size
Panel size mm |
Mesh size mm |
Wire diameter |
Post size mm |
||
Wire diameter |
Wire diameter |
Wire diameter mm |
|||
630x2500 |
50x200 |
8x2 + 6 |
6x2 + 5 |
6x2 + 4 |
1100 |
830x2500 |
50x200 |
8x2 + 6 |
6x2 + 5 |
6x2 + 4 |
1300 |
1030x2500 |
50x200 |
8x2 + 6 |
6x2 + 5 |
6x2 + 4 |
1500 |
1230x2500 |
50x200 |
8x2 + 6 |
6x2 + 5 |
6x2 + 4 |
1700 |
1430x2500 |
50x200 |
8x2 + 6 |
6x2 + 5 |
6x2 + 4 |
1900 |
1630x2500 |
50x200 |
8x2 + 6 |
6x2 + 5 |
6x2 + 4 |
2100 |
1830x2500 |
50x200 |
8x2 + 6 |
6x2 + 5 |
6x2 + 4 |
2400 |
2030x2500 |
50x200 |
8x2 + 6 |
6x2 + 5 |
6x2 + 4 |
2600 |
2230x2500 |
50x200 |
8x2 + 6 |
6x2 + 5 |
6x2 + 4 |
2800 |
2430x2500 |
50x200 |
8x2 + 6 |
6x2 + 5 |
6x2 + 4 |
|
1.Secure-nett Technology:
1)Raw Material
Secure-Nett post uses hot-dipped galvanized steel sheet as raw material,which is strong corrosion resistance,good surface quality,uniform galvanized layer and conductive to processing.
Post Machine
Post Shape
Square post
Optional accessories
With a wide range of beautifully crafted accessories to choose from,which can satisfy your different esthetical effect demand.Secure-net will be your ultimate to go-to designer With a wide range of beautifully crafted accessories to choose from,which can satisfy your different esthetical effect demand.Secure-net will be your ultimate to go-to designer.
Wire for panel,which adopts high quality low carbon hot-dipped galvanized steel wire with tensile strength above 450N to 500N.
Welding equipment adopts the most advanced domestic automatic welding machine.The equipment adopts synchronous control technology;points in welding and welding time control are controlled by PLC digital programming system with touch screen input panel makes operation more intelligent.
2)Produce line
Fencing Produce Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Electric Galvanizing/Hot-dipped Galvanizing → Parkerizing → PVC Coating /Spraying → Packing → Loading
Fence Post Produce Process:Raw Material → Cutting → Hole Drilling → Electro Galvanizing/Hot-dipped Galvanizing → Sandblasting → PVC Coating/Spraying → Packing → Loading
Four layers surface coating treatment:
1. Hot-dip galvanizing: Extra protection against rust, corrosion;
2 Zinc phosphate: Promote the adhesion between the steel and coating film;
3. Zinc-rich epoxy powder coat: Providing long-lasting, anti-impaction and anti-corrosion;
4. Polyester color coat( With extra anti-UV rays, corrosion and self-cleaning),PVCcoated.
To achieve ideal electrostatic spraying polyester effect,our spraying power adopts AKZO NOBEL,which manufacturer is one of the world's top 500 enterprise.Our company is the only one enterprise who purchase ITW GEMA electrostatic spraying polyester equipment for fence surface treatment in fence industry.
Features
a.AkzoNobel powder coted surface makes fence easy to clean, rain wash can resume bright.
b.4-layer antiseptic treatment can preserve the newness for 10 years, decreases your expense of maintenance.
c.Advanced galvanized and powder spraying process makes rail service life 30 years even in bad conditions.
d. Colorful surface and excellent decorative pattern meet your special demands for fence
Product Quality Control
Providing high-quality products to every custom is our consistent goal.We have professional quality supervisor from the material,accessories to wire diameter, the basic sizes of finished products.Each process,we'll have a careful inspection.
- Packaging&Shipping
It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels.
It has 4 metal corners to keep the pallet more strong.
It has metal plate under the plastic bandage to reduce the apressure of fence panels.
wooden plate on top which can protect the fence panels avoid being crushed by other pallets
Company Introduction
Hebei SECURE NET Fence Facility Co., Ltd. is committed to professional and comprehensive site protection product development and production, providing global customers with high-quality advanced metal fences, gates and other protective all steel products and services. We insist on providing high-quality products to every custom is our consistent goal,and with 10 years of experience,we will find the best way to solve any problem for clients.
By now, our business has extended to many areas in China like Beijing, Tianjin, Chongqing, Fujian, Sichuan, Mongolia and so on. And also, we export our goods to America, Australia, Germany, Italy and more than 30 countries and areas.
Enterprise Culture
Promises must be kept and action must be resolute.
Result is the first,excuse is the second.
Efficiency first,success or failure second.
If you are interested in our products or some questions,please feel free ask me.
