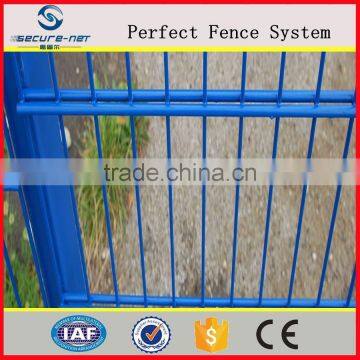

decoration beautiful double horizontal wire fence/double wire mesh fence/2d fence panels
Double wire fence adopts high quality hot dipped galvanized steel wire as raw material.It is composed of a vertical wrie and two horizotal wire welded together,which makes the double wire fence more sturdy than single wire fence.Wire diameter of 8mmx2+5mmx1;5mmx2+6mmx1,the diameter of wire is thick,which make the overall structure very strong.
Specification of double horizontal wire fence
1)Column and mesh technology parameter
Raw material performance | mesh wire tensile strength:Mpa | 500—550 Mpa |
column plate tensile strength:Mpa | ≥400 Mpa | |
column steel strip elongation:% | 26%≤elongation≤40% | |
Grid solder joint tensile resistance(N) | mesh | 3000-5000 N |
Panel size mm | Mesh size mm | Wire diameter | Post size mm | ||
Wire diameter | Wire diameter | Wire diameter mm | |||
630x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1100 |
830x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1300 |
1030x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1500 |
1230x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1700 |
1430x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1900 |
1630x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2100 |
1830x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2400 |
2030x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2600 |
2230x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2800 |
2430x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | |
Produce line
Base Material
1.Wire for panel adopts hot-dipped galvanized steel wire with 60g to 80g zinc coat,tensile strength above 450N to 500N.
2.Secure-Nett post uses hot-dipped galvanized steel sheet as raw material with zinc coat 80g-120g per square meter,which is strong corrosion resistance,good surface quality,uniform galvanized layer and conductive to processing.
Post type: Peach post, square. Holland, T-type, Y-type post.
Technology
Surfacetreatment
Electrostatic spraying polyester equipment
Our company is the only one enterprise who purchases ITW GEMA electrostatic spraying polyester equipment for fence surface treatment in fence industry.To achieve ideal electrostatic spraying polyester effect,our spraying power adopts AKZO NOBEL,which manufacturer is one of the world's top 500 enterprise.It is the largest polyester power provider in the world.
Four layers surface coating treatment:
1. Hot-dip galvanizing: Extra protection against rust, corrosion;
2 Zinc phosphate: Promote the adhesion between the steel and coating film;
3. Zinc-rich epoxy powder coat: Providing long-lasting, anti-impaction and anti-corrosion;
4. Polyester color coat: With extra anti-UV rays, corrosion and self-cleaning

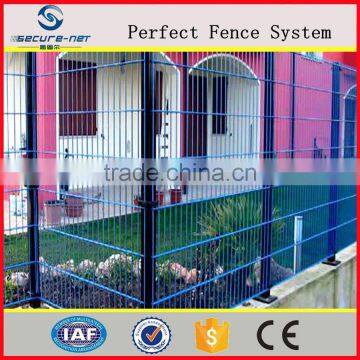

Product effect
Product Features
|
|
|
|
Providing high-quality products to every custom is our consistent goal.We have professional quality supervisor from the material,accessories to wire diameter, the basic sizes of finished products.Each process,we'll have a careful inspection.
- Packaging&Shipping
It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels.
It has 4 metal corners to keep the pallet more strong.
It has metal plate under the plastic bandage to reduce the apressure of fence panels.
wooden plate on top which can protect the fence panels avoid being crushed by other pallets
Company Introduction
Hebei SECURE NET Fence Facility Co., Ltd. is committed to professional and comprehensive site protection product development and production, providing global customers with high-quality advanced metal fences, gates and other protective all steel products and services. We insist on providing high-quality products to every custom is our consistent goal,and with 10 years of experience,we will find the best way to solve any problem for clients.
By now, our business has extended to many areas in China like Beijing, Tianjin, Chongqing, Fujian, Sichuan, Mongolia and so on. And also, we export our goods to America, Australia, Germany, Italy and more than 30 countries and areas.
Enterprise Culture
Promises must be kept and action must be resolute.
Result is the first,excuse is the second.
Efficiency first,success or failure second.
If you are interested in our products or some questions,please feel free ask me.
