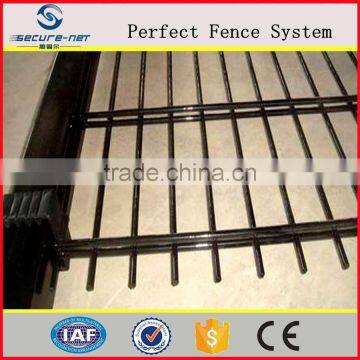

CE certificate alibaba expressed double beam fence/twin wire fence/double wire rod mesh fence
Double beam fence the horizontal double wires are an added security benefit as it more than doubles the difficulty to cut through the mesh panels.
Double beam fence is ideal for the perimeter of any premises needing a fully secured boundary as well as a neat, uniform finish for street appeal. This robust system creates an excellent first impression for visitors and by-passers.
Double beam fence make a good addition to your city,become a beautiful scenery line.
Specification of double beam fence
1)Column and mesh technology parameter
Raw material performance | mesh wire tensile strength:Mpa | 500—550 Mpa |
column plate tensile strength:Mpa | ≥400 Mpa | |
column steel strip elongation:% | 26%≤elongation≤40% | |
Grid solder joint tensile resistance(N) | mesh | 3000-5000 N |
2)Product parameter
Panel size mm | Mesh size mm | Wire diameter | Post size mm | ||
Wire diameter | Wire diameter | Wire diameter mm | |||
630x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1100 |
830x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1300 |
1030x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1500 |
1230x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1700 |
1430x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 1900 |
1630x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2100 |
1830x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2400 |
2030x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2600 |
2230x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | 2800 |
2430x2500 | 50x200 | 8x2 + 6 | 6x2 + 5 | 6x2 + 4 | |
Base Material
1.Wire for panel adopts hot-dipped galvanized steel wire with 60g to 80g zinc coat,tensile strength above 450N to 500N.
2.Secure-Nett post uses hot-dipped galvanized steel sheet as raw material with zinc coat 80g-120g per square meter,which is strong corrosion resistance,good surface quality,uniform galvanized layer and conductive to processing.
Special Equipment
Welding machine
welding equipment adopts the most advanced domestic automatic welding machine.The equipment adopts synchronous control technology;points in welding and welding time control are controlled by PLC digital programming system with screen input panel makes operation more intelligent.
Post Machine
Post type: Sqaure post.
Top with metal clip or plastic clip;Bolts or rivets combined the post with panel together,also,flat or special steel card is available.Meanwhile,it also can be designed according to customer's detail requirment. With a wide range of beautifully crafted accessories to choose from,which can satisfy your different esthetical effect demand.Secure-net will be your ultimate to go-to designer.
Electrostatic spraying polyester equipment
Our company is the only one enterprise who purchases ITW GEMA electrostatic spraying polyester equipment for fence surface treatment in fence industry.To achieve ideal electrostatic spraying polyester effect,our spraying power adopts AKZO NOBEL,which manufacturer is one of the world's top 500 enterprise.It is the largest polyester power provider in the world.
Quality Control
Four layers surface coating treatment:
1. Hot-dip galvanizing: Extra protection against rust, corrosion;
2 Zinc phosphate: Promote the adhesion between the steel and coating film;
3. Zinc-rich epoxy powder coat: Providing long-lasting, anti-impaction and anti-corrosion;
4. Polyester color coat: With extra anti-UV rays, corrosion and self-cleaning
Product effect
Product Features
|
|
|
|
Product Quality Certificate
- Packaging&Shipping
It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels.
It has 4 metal corners to keep the pallet more strong.
It has metal plate under the plastic bandage to reduce the apressure of fence panels.
wooden plate on top which can protect the fence panels avoid being crushed by other pallets
Company Introduction
Hebei SECURE NET Fence Facility Co., Ltd. is committed to professional and comprehensive site protection product development and production, providing global customers with high-quality advanced metal fences, gates and other protective all steel products and services. We insist on providing high-quality products to every custom is our consistent goal,and with 10 years of experience,we will find the best way to solve any problem for clients.
By now, our business has extended to many areas in China like Beijing, Tianjin, Chongqing, Fujian, Sichuan, Mongolia and so on. And also, we export our goods to America, Australia, Germany, Italy and more than 30 countries and areas.
Enterprise Culture
Promises must be kept and action must be resolute.
Result is the first,excuse is the second.
Efficiency first,success or failure second.
If you are interested in our products or some questions,please feel free ask me.
