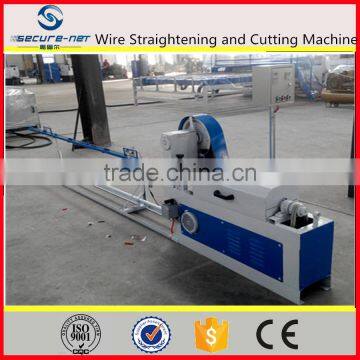

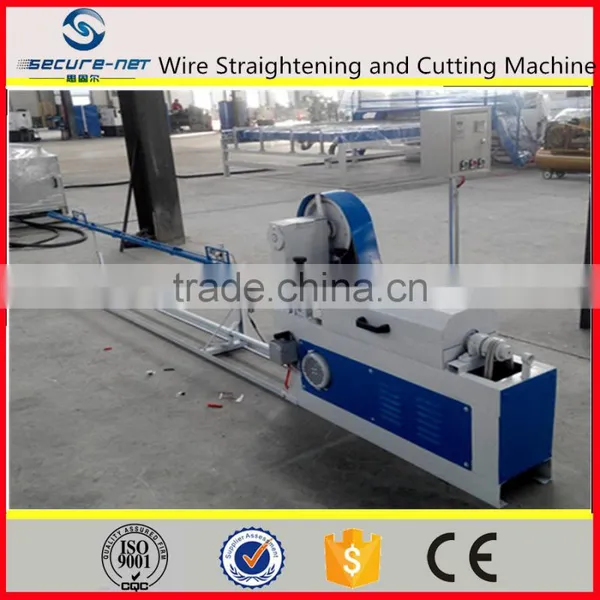

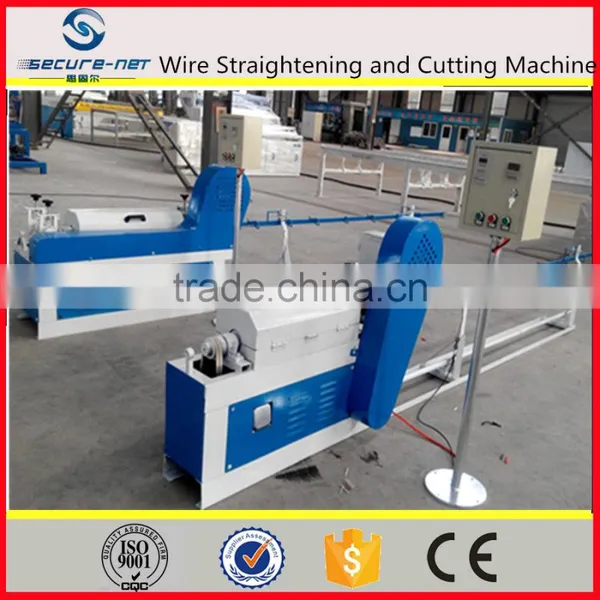

Performance wire straightening cutting machine
- 1 Set / Sets per Month
- XINGANG
- T/T L/C D/P D/A Credit Card PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
Product Details
Place of Origin: | Hebei, China | Brand Name: | SECURE-NETT | Model Number: | TZ |
After-sales Service Provided: | Overseas service center available |
Product Description
Model: Straightening and cutting machine
Product Description:
1.Wire straightener and cutting machine can straighten and cut stainless steel wire, aluminum wire, cold-drawing wire and steel wire.
2.This kind of machine wire diameter is from 1.5 to 12mm.
3.The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
4.This machine has many advantages, such as neat cutting mouth, less error and good functions.
Tchnique parameter
Model | LE1.5-3.5 | LE2-5 | LE3-6 | LE4-8 | LE4-12 | LE5-12 |
wire diameter | 1.5-3.5mm | 2.0-5.0mm | 3.0-6.0mm | 4.0-8.0mm | 4.0-12mm | 5-12mm |
Cutting length | 30-2000mm | 30-6000mm | 30-6000mm | 200-6000mm | 200-6000mm | 600-12000mm |
Cut error | +/- 1mm | +/- 1mm | +/- 1mm | +/- 1mm | +/- 1mm | +/- 1mm |
Speed | 25m/min | 30m/min | 30m/min | 35m/min | 30m/min | 45m/min |
Straight motor | 1.5kw | 1.5kw | 2.2kw | 4.0kw | 7.5kw | 11kw |
Cut motor | 0.75kw | 0.75kw | 0.75kw | 3.0kw | 4.0kw | 4.0kw |
Overall size | 1.7x0.4x0.8m | 1.2x0.4x0.9m | 1.2x0.5x1.1m | 7.3x0.6x1.2m | 8x0.8x1.3m | 2.1x0.7x1.3m |
Weight | 130KG | 150KG | 180KG | 650KG | 1000KG | 1200KG |
Packaging Details:
1. The main machine and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
Our Services
1.Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place
to debug the machine and providing the training in 30 days after the
machines arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will assign
the expertised staff to your company. And the fees,such as round-trip tickets,
accomodation etc, are all in your account. After the maintenance period: If
you need the machine parts, we will provide it as our cost. If you need the
technicians, we will assign the expertised staff to your company. And the fees,
such as round-trip tickets, accomodation etc, are all in your account.
