Product Description

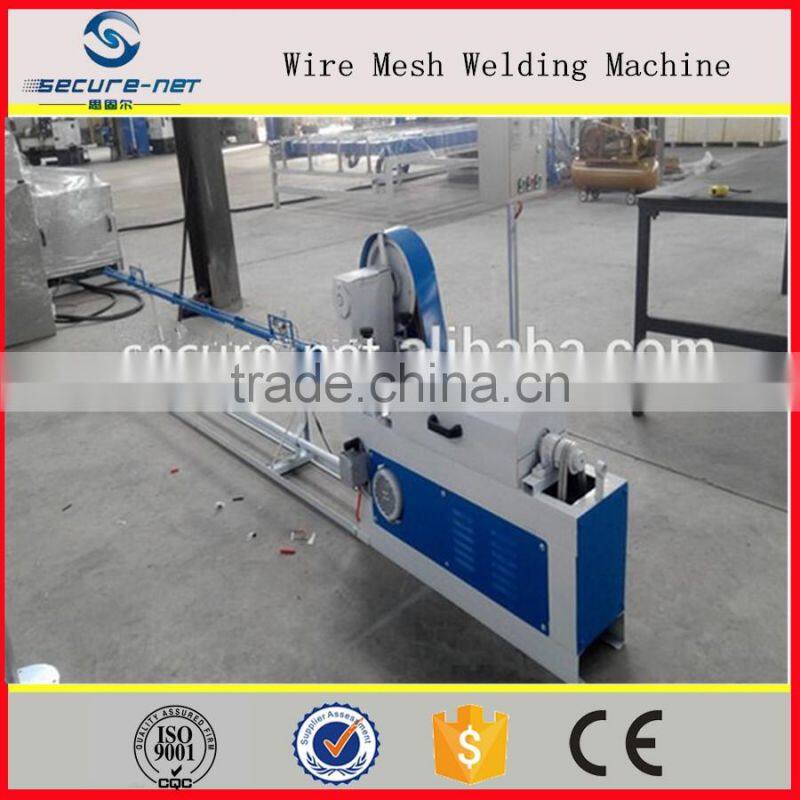

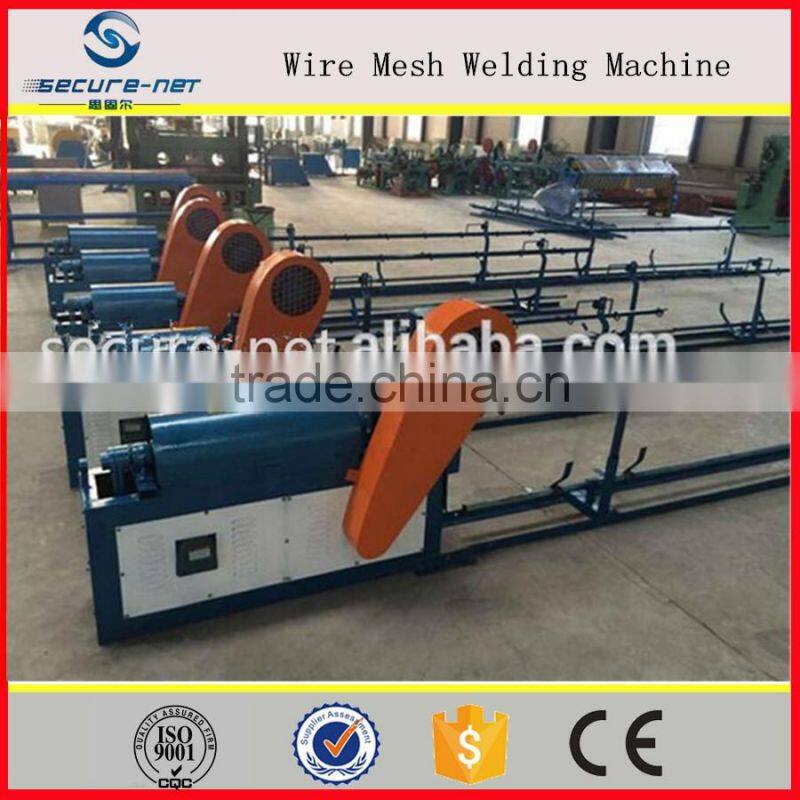

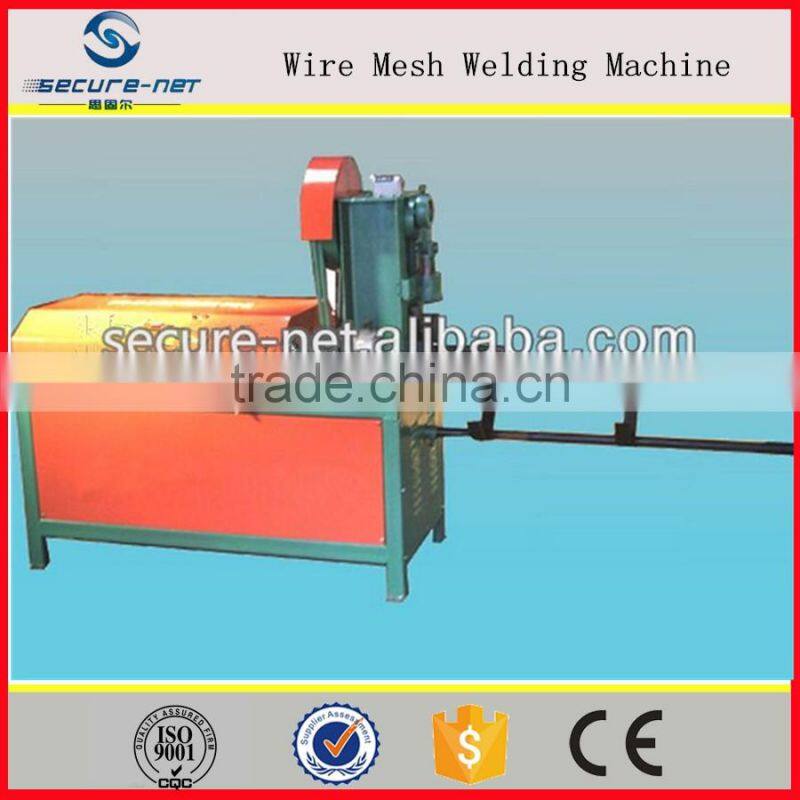

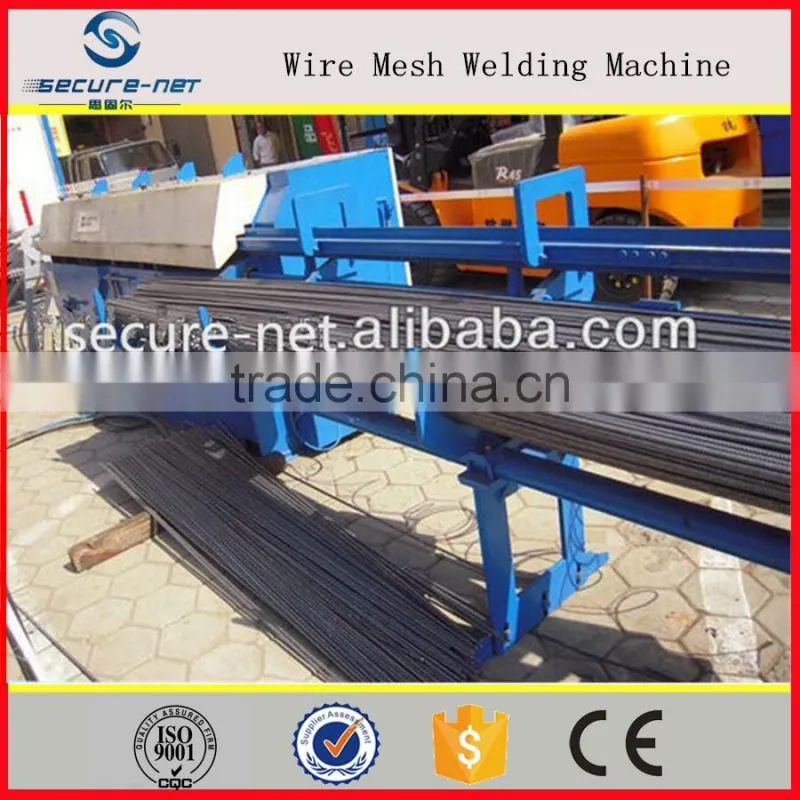

Straightening And Cutting Machine/Wire Straightening Cutting Machine
Tchnique parameter
| Model | LE1.5-3.5 | LE2-5 | LE3-6 | LE4-8 | LE4-12 | LE5-12 |
| wire diameter | 1.5-3.5mm | 2.0-5.0mm | 3.0-6.0mm | 4.0-8.0mm | 4.0-12mm | 5-12mm |
| Cutting length | 30-2000mm | 30-6000mm | 30-6000mm | 200-6000mm | 200-6000mm | 600-12000mm |
| Cut error | +/- 1mm | +/- 1mm | +/- 1mm | +/- 1mm | +/- 1mm | +/- 10mm |
| Speed | 25m/min | 30m/min | 30m/min | 35m/min | 30m/min | 45m/min |
| Straight motor | 1.5kw | 1.5kw | 2.2kw | 4.0kw | 7.5kw | 11kw |
| Cut motor | 0.75kw | 0.75kw | 0.75kw | 3.0kw | 4.0kw | 4.0kw |
| Overall size | 1.7x0.4x0.8m | 1.2x0.4x0.9m | 1.2x0.5x1.1m | 7.3x0.6x1.2m | 8x0.8x1.3m | 2.1x0.7x1.3m |
| Weight | 130KG | 150KG | 180KG | 650KG | 1000KG | 1200KG |
Product Description:
Wire straightener and cutting machine can straighten and cut stainless steel wire, aluminum wire, cold-drawing wire and steel wire.
This kind of machine wire diameter is from 1.5 to 12mm.
The length could adjust according to customers demand. It is used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
This machine has many advantages, such as neat cutting mouth, less error and good functions.
Our Services
1.Maintenance period:one year
2.If the buyers need, we can send our technical staff to the buyers’ place
to debug the machine and providing the training in 30 days after the
machines arrive at the destination port.
3.The commissioning fees: free
4.The training fees: USD100/day for each technical
5.The numbers of technical persons: one technical person per machines at most
6.The fees ,such as round-trip tickets, accomodation etc, are all in buyers’
account. During the maintenance period: the parts damaged non-artificially
will be provided free of charge. If you need the technicians, we will assign
the expertised staff to your company. And the fees,such as round-trip tickets,
accomodation etc, are all in your account. After the maintenance period: If
you need the machine parts, we will provide it as our cost. If you need the
technicians, we will assign the expertised staff to your company. And the fees,
such as round-trip tickets, accomodation etc, are all in your account.
company profile:
Hebei Secure-Net Fence Facility Co., Ltd.
Hebei Secure-Net Fence Facility Co.,Ltd. was founded in 2000,
specializing in professional customized welding net machine for 15 years,
we can according to your request custom make all kinds of welding net machine
Welcome to visit our factory
