Home > Construction & Decoration > Fence > Security Fence > Strong Tension Airway Protect Anti-climb Airport Concertina Post Fencing Razor Wire on Top

Strong Tension Airway Protect Anti-climb Airport Concertina Post Fencing Razor Wire on Top

Strong Tension Airway Protect Anti-climb Airport Concertina Post Fencing Razor Wire on Top photo-1
Strong Tension Airway Protect Anti-climb Airport Concertina Post Fencing Razor Wire on Top photo-2
Strong Tension Airway Protect Anti-climb Airport Concertina Post Fencing Razor Wire on Top photo-3
Strong Tension Airway Protect Anti-climb Airport Concertina Post Fencing Razor Wire on Top photo-4
US$ 16.3 - 22.8 MOQ: 1000 Sets
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Secure Nett
Model Number:
Wire mesh fence
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Secure Nett
Model Number Wire mesh fence
Frame Material Metal
Metal Type Steel
Pressure Treated Wood Type Heat Treated
Frame Finishing Not Coated
Feature Easily Assembled, Eco Friendly, Renewable Sources, Rodent Proof, Rot Proof, Waterproof

strong tension airway protect anti-climb airport concertina post fencing razor wire on top

Product information

Airport fence is a kind of safety and security fence around the airport.

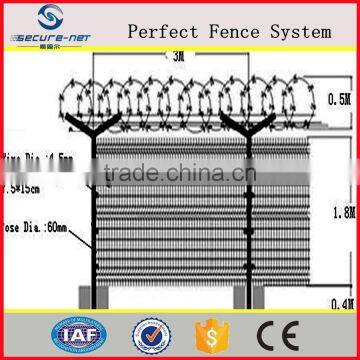

   1) Airport fence is generally Yshaped, fixed with razor barbed wire, which greatly increases the security performance.

   2) Airport fence can also be with cranked post, fixed with three line barb wire.

   3) airport fence can with welded mesh panel, but also can with chain link mesh.

 strong tension airway protect anti-climb airport concertina post fencing razor wire on top



strong tension airway protect anti-climb airport concertina post fencing razor wire on top

1. Base Material:



Wire for panel adopts high quality low carbon hot-dipped galvanizd steel wire with 60g to 80g zinc coat,tensile strength above 450N to 500N.

strong tension airway protect anti-climb airport concertina post fencing razor wire on top

Secure-Nett post uses hot-dipped galvanized steel sheet as raw material with zinc coat 80g-120g per square meter,which is strong corrosion resistance,good surface quality,uniform galvanized layer and conductive to processing.

strong tension airway protect anti-climb airport concertina post fencing razor wire on top

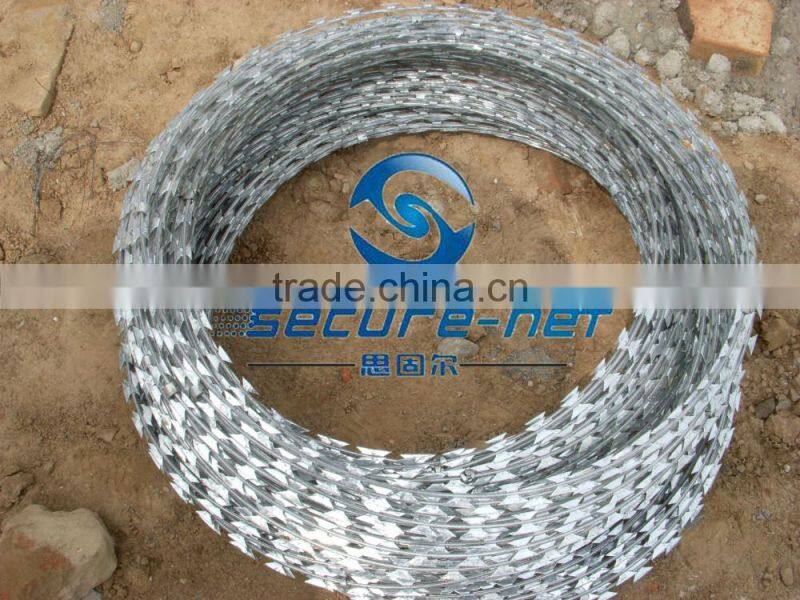

Razor barbed tape is a kind of modern security fencing materials fabricated with razorsharp steel blade and



tensile wire. Barbed Tape can be installed to achieve the result of frightening and stopping to the aggressive



perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs  making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

strong tension airway protect anti-climb airport concertina post fencing razor wire on top



2.Technology Procedure

strong tension airway protect anti-climb airport concertina post fencing razor wire on top Four layers surface coating treatment:

      1. Hot-dip galvanizing: Extra protection against rust, corrosion;

      2 Zinc phosphate: Promote the adhesion between the steel and coating film;

      3. Zinc-rich epoxy powder coat: Providing long-lasting, anti-impaction and anti-corrosion;

      4. Polyester color coat: With extra anti-UV rays, corrosion and self-cleaning.



strong tension airway protect anti-climb airport concertina post fencing razor wire on top











3. Product Features

  • AkzoNobel powder coted surface makes fence easy to clean, rain wash can resume bright.
  • 4-layer antiseptic treatment can preserve the newness for 10 years, decreases your expense of maintenance.
  • Advanced galvanized and powder spraying process makes rail service life 30 years even in bad conditions.
  • Colorful surface and excellent decorative pattern meet your special demands for fence.







4. Product Dimension

Airport mesh fence panel

Panel

 Mesh

 Wire Thickness

Surface Treatment

Panel Width

Folds NOS.

Panel Height

Fence Height

Big Panel

50x100mm 55x100mm

4.00mm 4.50mm 5.00mm

Galvanized and  Electrostatic polyester coated or PVC coated

2.50m 3.00m

4

2000mm

2700mm

5

2300mm

3200mm

6

2600mm

3700mm

2

530mm

2700mm

V panel

630mm

3200mm

730mm

3700mm

  Airport mesh fence Y post



Profile

 Wall Thickness

Surface Treatment

Length

Base Plate

Rainhat

60x60mm

2.0mm 2.5mm

Galvanized and  Electrostatic polyester powder coated

2700mm I + 530mm V

Available On request

Plastic or Metal

3100mm I + 630mm V

3600mm I + 730mm V



Special  Equipment

Welding equipment

Welding equipment adopts the most advanced domestic automatic welding machine.The equipment adopts synchronous control technology;points in welding and welding time control are controlled by PLC digital programming system with screen input panel makes operation more intelligent.

strong tension airway protect anti-climb airport concertina post fencing razor wire on top

Electrostatic spraying polyester equipment



Our company is the only one enterprise who purchases ITW GEMA electrostatic spraying polyester equipment for fence surface treatment in fence industry.To achieve ideal electrostatic spraying polyester effect,our spraying power adopts AKZO NOBEL,which manufacturer is one of the world's top 500 enterprise.It is the largest polyester power provider in the world.



strong tension airway protect anti-climb airport concertina post fencing razor wire on top

Post Machine



Raw material performance

mesh wire tensile strength:Mpa

500—550 Mpa

column plate tensile strength:Mpa

≥400 Mpa

column steel strip elongation:%

26%≤elongation≤40%

Grid solder joint tensile resistance(N)

mesh

3000-5000 N

strong tension airway protect anti-climb airport concertina post fencing razor wire on top
