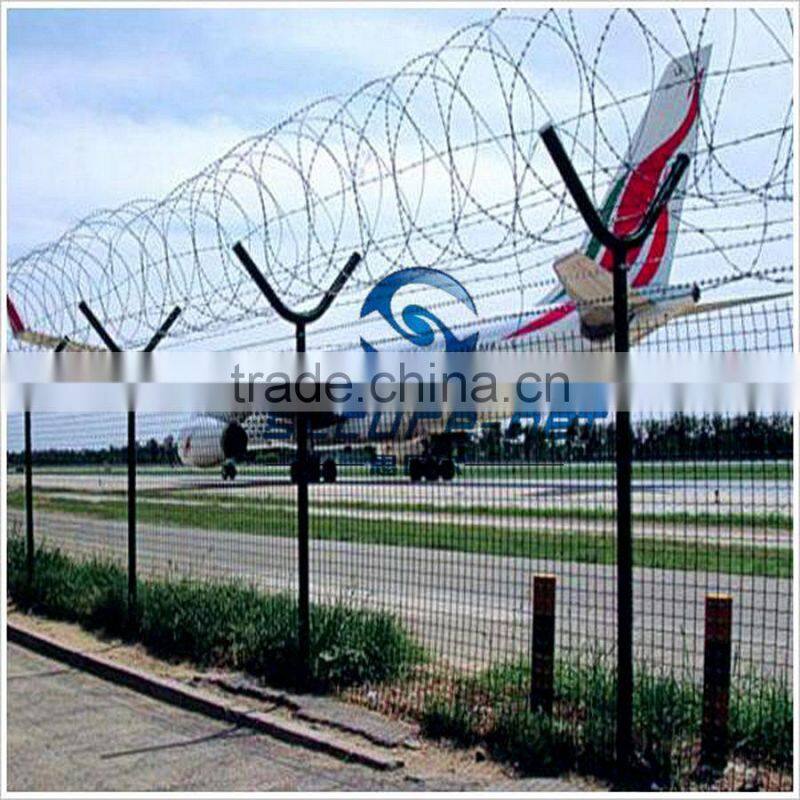

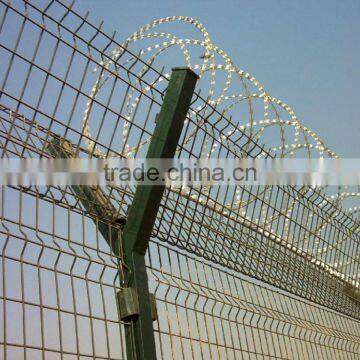

razor barbed airway protect industrial airport safety fence
1)Airport safety fence do not need any fixed parts.It is installed in a way of sequential assembly,which saves lots of time and project costs.
2)Airport safety fence with unique pothook design,flexible height to install in post,which make the fence difficult disassembly and guarantee the sturdiness.
3)Airport safety fence with fashion style,rich colors,perfect match with around environment.
4)Airport safety fence for 10-year warranty,with one-time investment,you can benefit from 10-20 years.
Specification of airport safety fence
1)Column and mesh technology parameter
Raw material performance |
mesh wire tensile strength:Mpa |
500—550 Mpa |
column plate tensile strength:Mpa |
≥400 Mpa |
|
column steel strip elongation:% |
26%≤elongation≤40% |
|
Grid solder joint tensile resistance(N) |
mesh |
3000-5000 N |
2)Common Size
Specification of airport safety fence | |||
Mesh size |
50x100, 50x150, 50x200,55x100,55x200 |
mm |
|
Panel size |
2x0.63, 2x0.83, 2x1.03, 2x1.23, 2x1.43, <p >2.5x1.63, 2.5x1.83, 2.5x2.03, 2.5x2.23, 2.5x2.43 |
m(L x H) |
|
Post dimension |
50x70, 70x100, 50x50, 60x60, (square hole) <p >48, 60 (inner diameter) |
mm |
|
Wire diameter |
4-5.5 or as customer’s request |
mm |
|
Surface treatment |
Galvanized or PVC coated |
||
Color |
Green, blue, black, white, etc |
||
Post shape |
Y-type post |
||
Modular fencing system |
Panel size (L*H) mm |
Post height mm |
Number of bending folds |
2405*1270 |
1500 |
2 |
|
2405*1570 |
1850 |
2 |
|
2405*1720 |
2130 |
2 |
|
2405*2000 |
2450 |
3 |
|
Note |
There’re common specifications of fence. Itcan also be customized |
||
Base Material
1.Wire for panel adopts hot-dipped galvanized steel wire with 60g to 80g zinc coat,tensile strength above 450N to 500N.
2.Secure-Nett post uses hot-dipped galvanized steel sheet as raw material with zinc coat 80g-120g per square meter,which is strong corrosion resistance,good surface quality,uniform galvanized layer and conductive to processing.
Special Equipment
1.Welding machine
welding equipment adopts the most advanced domestic automatic welding machine.The equipment adopts synchronous control technology;points in welding and welding time control are controlled by PLC digital programming system with screen input panel makes operation more intelligent.
2.Bending machine
Bending for strengthen the panel's stability.
Modular fencing system |
Panel size (L*H) mm |
Post height mm |
Number of bending folds |
2405*1270 |
1500 |
2 |
|
2405*1570 |
1850 |
2 |
|
2405*1720 |
2130 |
2 |
|
2405*2000 |
2450 |
3 |
3.Post Machine

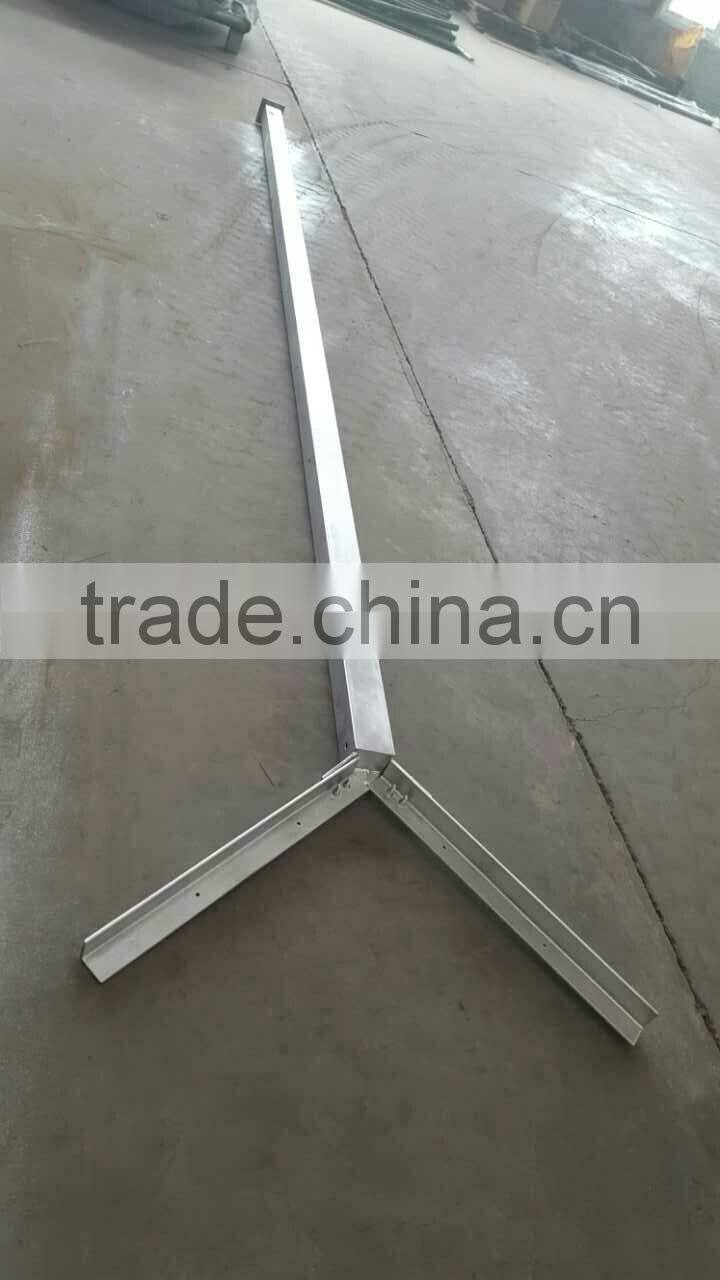

Post type: Y-type post.
With a wide range of beautifully crafted accessories to choose from,which can satisfy your different esthetical effect demand.Secure-net will be your ultimate to go-to designer.
4.Electrostatic spraying polyester equipment
Our company is the only one enterprise who purchases ITW GEMA electrostatic spraying polyester equipment for fence surface treatment in fence industry.To achieve ideal electrostatic spraying polyester effect,our spraying power adopts AKZO NOBEL,which manufacturer is one of the world's top 500 enterprise.It is the largest polyester power provider in the world.
Four layers surface coating treatment:
1. Hot-dip galvanizing: Extra protection against rust, corrosion;
2 Zinc phosphate: Promote the adhesion between the steel and coating film;
3. Zinc-rich epoxy powder coat: Providing long-lasting, anti-impaction and anti-corrosion;
4. Polyester color coat: With extra anti-UV rays, corrosion and self-cleaning
Product effect
Product Features
|
|
|
|
- Packaging&Shipping
It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels.
It has 4 metal corners to keep the pallet more strong.
It has metal plate under the plastic bandage to reduce the apressure of fence panels.
wooden plate on top which can protect the fence panels avoid being crushed by other pallets.
Company Introduction
Hebei SECURE NET Fence Facility Co., Ltd. is committed to professional and comprehensive site protection product development and production, providing global customers with high-quality advanced metal fences, gates and other protective all steel products and services. We insist on providing high-quality products to every custom is our consistent goal,and with 10 years of experience,we will find the best way to solve any problem for clients.
By now, our business has extended to many areas in China like Beijing, Tianjin, Chongqing, Fujian, Sichuan, Mongolia and so on. And also, we export our goods to America, Australia, Germany, Italy and more than 30 countries and areas.
Enterprise Culture
Promises must be kept and action must be resolute.
Result is the first,excuse is the second.
Efficiency first,success or failure second.
If you are interested in our products or some questions,please feel free ask me.
