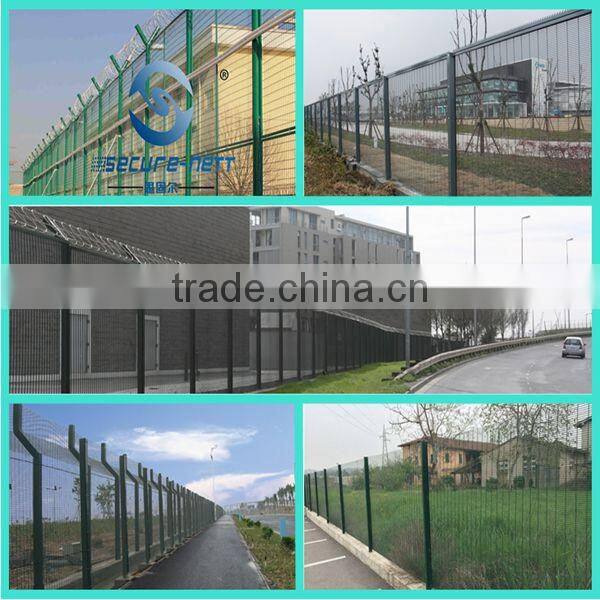

alibaba China supplier garrison heavy duty security fencing
Garrison heavy duty security fencing is also called barriers, defend fence and fencing.
We have various styles of wire mesh Fences, General welded mesh fence(2D, 3D), 358 fence(Anti-climb fence, prison fence), Chain link fence, Airport fence(prison fence), Holland wire mesh fence, temporary fence, and so on.There are different and various types of wire fencing that are used for different purposes.
Specification of Garrison heavy duty security fencing
Product name: security fence, 358 security fence, 358 fence
Material:High quality hot dipped galvanizd wire.
Surface treatment: Powder Coated,hot dipped Galvanized,pvc coated
Wire diameter:4.0mm
Opening size: 12.7mmX76.2mm(1/2''X3''),76.2x12.7mm, 75x12.5mm
Panels |
Posts |
||
Fence |
Panel Size |
Post Size |
Height |
height |
Height/Width |
|
|
m |
mm |
|
|
2.0 |
2007 x 2515 |
60x60x2.5mm |
2700 |
2.4 |
2400 x 2515 |
60x60x2.5mm |
3100 |
3.0 |
2997 x 2515 |
80x80x2.5mm |
3800 |
3.3 |
3302 x 2515 |
80x80x2.5mm |
4200 |
3.6 |
3607 x 2515 |
100x60x3mm |
4500 |
3.6 |
3607 x 2515 |
100x100x3mm |
4500 |
Base Material
1.Wire for panel adopts hot-dipped galvanized steel wire with 60g to 80g zinc coat,tensile strength above 450N to 500N.
2.Secure-Nett post uses hot-dipped galvanized steel sheet as raw material with zinc coat 80g-120g per square meter,which is strong corrosion resistance,good surface quality,uniform galvanized layer and conductive to processing.
Special Equipment

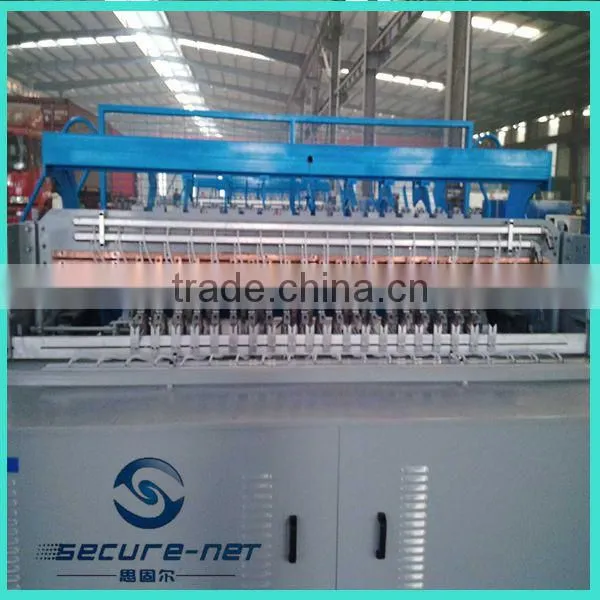

1.Welding machine
welding equipment adopts the most advanced domestic automatic welding machine.The equipment adopts synchronous control technology;points in welding and welding time control are controlled by PLC digital programming system with screen input panel makes operation more intelligent.

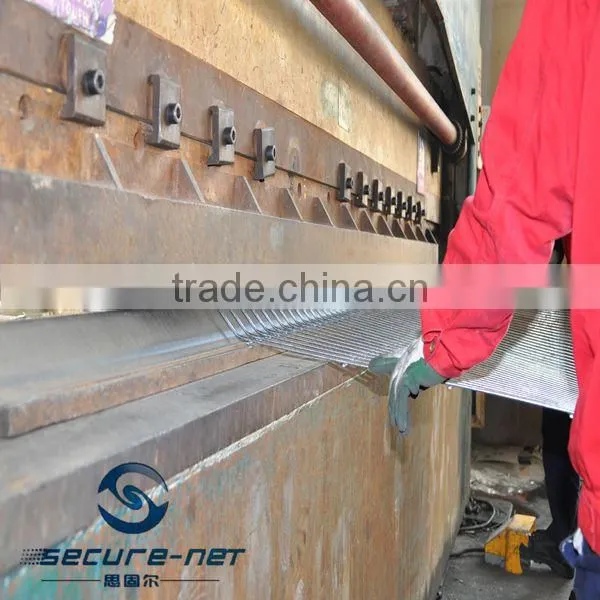

2.Bending machine
Bending for strengthen the panel's stability.
Modular fencing system |
Panel size (L*H) mm |
Post height mm |
Number of bending folds |
2405*1270 |
1500 |
2 |
|
2405*1570 |
1850 |
2 |
|
2405*1720 |
2130 |
2 |
|
2405*2000 |
2450 |
3 |
3.Post Machine
Post type: Y-type post;Square post
With a wide range of beautifully crafted accessories to choose from,which can satisfy your different esthetical effect demand.Secure-net will be your ultimate to go-to designer.

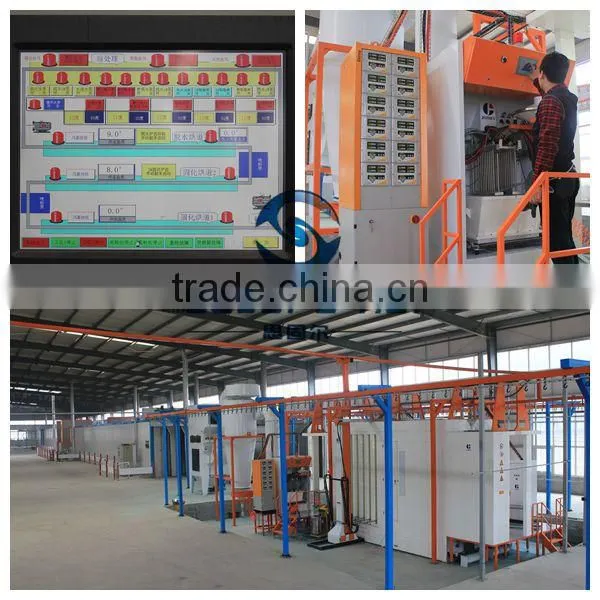

4.Electrostatic spraying polyester equipment
Our company is the only one enterprise who purchases ITW GEMA electrostatic spraying polyester equipment for fence surface treatment in fence industry.To achieve ideal electrostatic spraying polyester effect,our spraying power adopts AKZO NOBEL,which manufacturer is one of the world's top 500 enterprise.It is the largest polyester power provider in the world.
Four layers surface coating treatment:
1. Hot-dip galvanizing: Extra protection against rust, corrosion;
2 Zinc phosphate: Promote the adhesion between the steel and coating film;
3. Zinc-rich epoxy powder coat: Providing long-lasting, anti-impaction and anti-corrosion;
4. Polyester color coat: With extra anti-UV rays, corrosion and self-cleaning
Produce Process
Fencing Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds/Curves Bending → Electric Galvanizing/Hot-dipped Galvanizing → Parkerizing → PVC Coating /Spraying → Packing → Loading

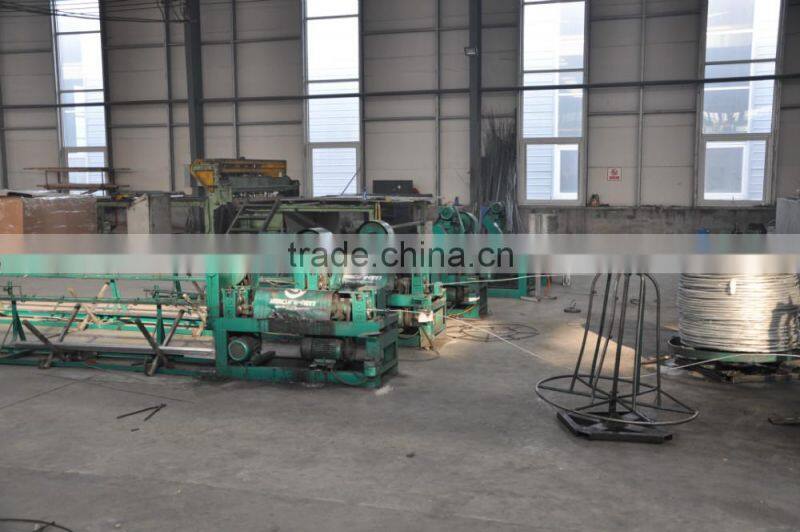

Straight&Cutting

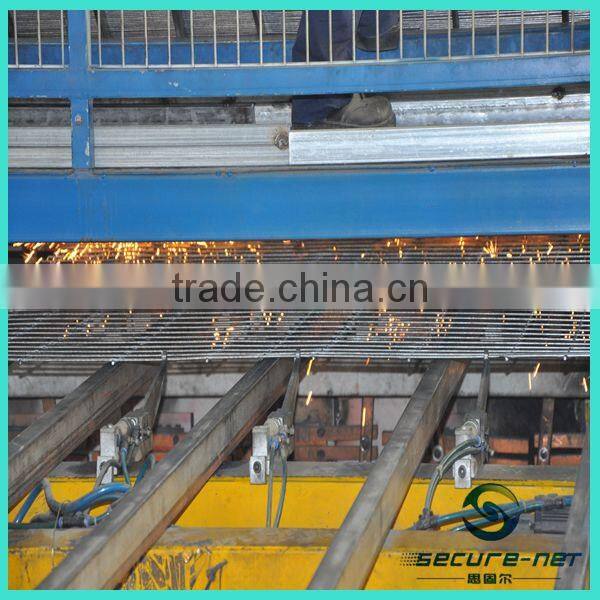

Welding
Galvanizing

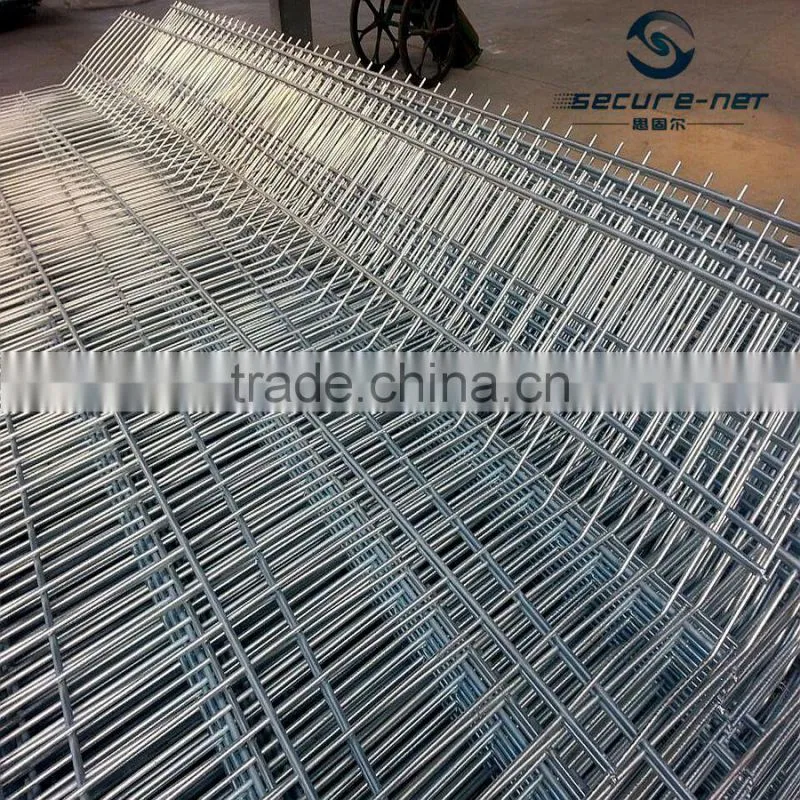

Product effect

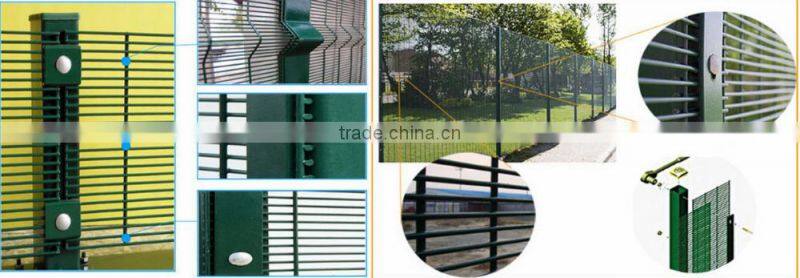

Product Features
|
|
|
|
If you are interested in our products or there are some suggestions,please feel free contact with me!We will offer you competitive price and superior product!!!
