800kg Walk-behind Vibratory Roller Small-size Road Roller Mini Vibratory Roller Light Compaction Equipment

Nivo Machinery (Jingjiang) Co., Ltd.
800kg Walk-behind Vibratory Roller Small-size Road Roller Mini Vibratory Roller Light Compaction Equipment thumbnail-1
800kg Walk-behind Vibratory Roller Small-size Road Roller Mini Vibratory Roller Light Compaction Equipment thumbnail-2
800kg Walk-behind Vibratory Roller Small-size Road Roller Mini Vibratory Roller Light Compaction Equipment photo-1
800kg Walk-behind Vibratory Roller Small-size Road Roller Mini Vibratory Roller Light Compaction Equipment photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Double Drum Roller
Travel Speed:
2.5km/h
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Double Drum Roller
Travel Speed 2.5km/h
Grade Ability 25%
Brand Name NIVO
Model Number YSZ08DB-1
Power(W) 5.68kW
Dimension(L*W*H) 2330*900*1050mm
Weight 770kg
Certification CE,ISO,OHSMS,EMS

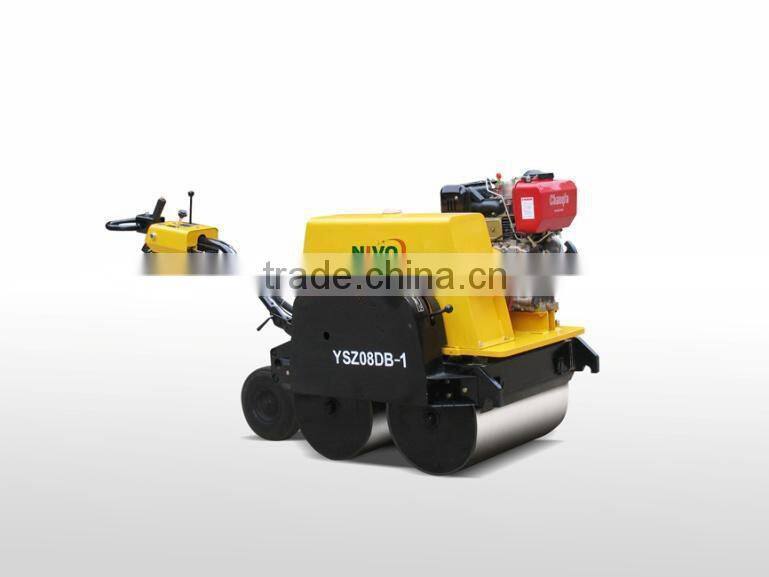

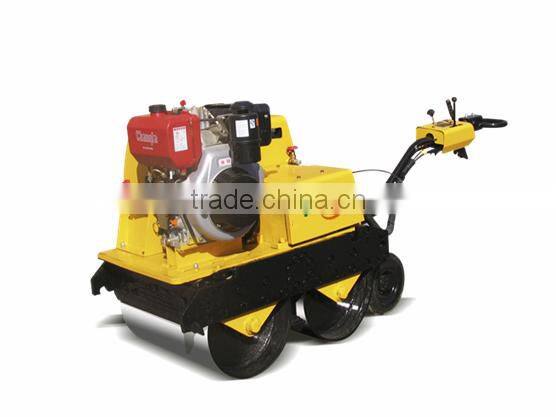

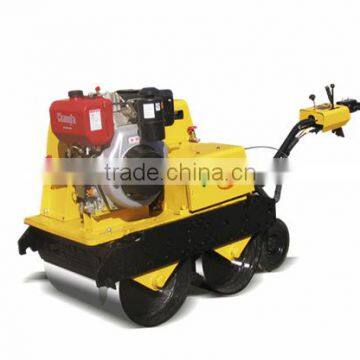

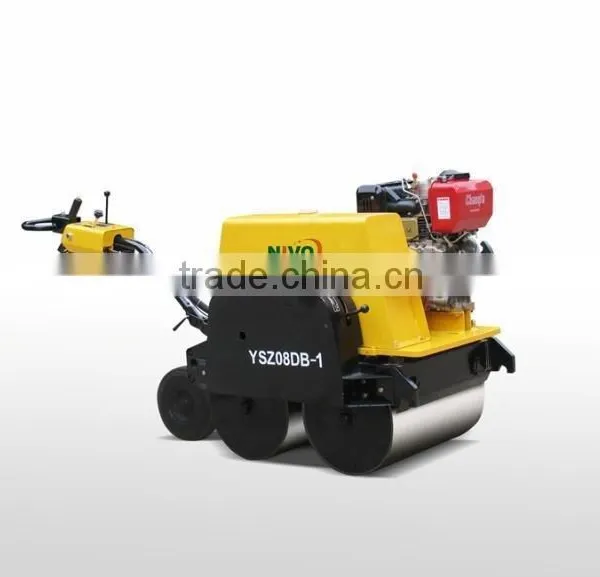

YSZ08DB-1 Walk-behind Vibratory Rollers



 800kg Walk-behind vibratory roller small-size Road Roller Mini Vibratory Roller Light Compaction Equipment800kg Walk-behind vibratory roller small-size Road Roller Mini Vibratory Roller Light Compaction Equipment

The walk-behind vibratory rollers are small-size vibratory roller, applied to mending and maintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.



Main Features

Changfa CF186F inline direct-inject air-cooled engine is adopted, with both electrical and manual startup devices, driven by double-drum and double-drum vibratory. There are two mud scraping boards besides the steel wheel. The direction is changed by rubber-tires. The roller is operated by hand on the ground.(The seat is equipped in YZC1 to make operation comfortable in the roller)



Technical Specifications

Model: YSZ08DB-1

Operating mass: 770kg

Vibration amplitude:0.25mm

Vibration frequency: 48Hz

Centrifugal force: 12kN

Max.travel speed:2.5km/h

Gradeability: 25%

Turning radius: 2700mm

Drum width: 600mm

Drum diameter:405mm

Wheelbase:470mm

Ground clearance:275mm

Diesel engine model: CF186F

Diesel engine power: 5.68kW

Overall dimensions: 2330*900*1050mm
