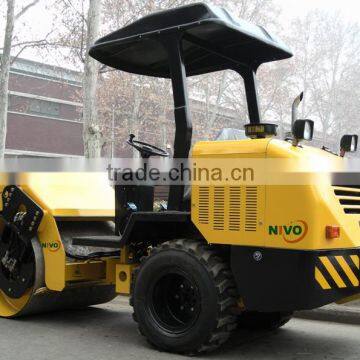

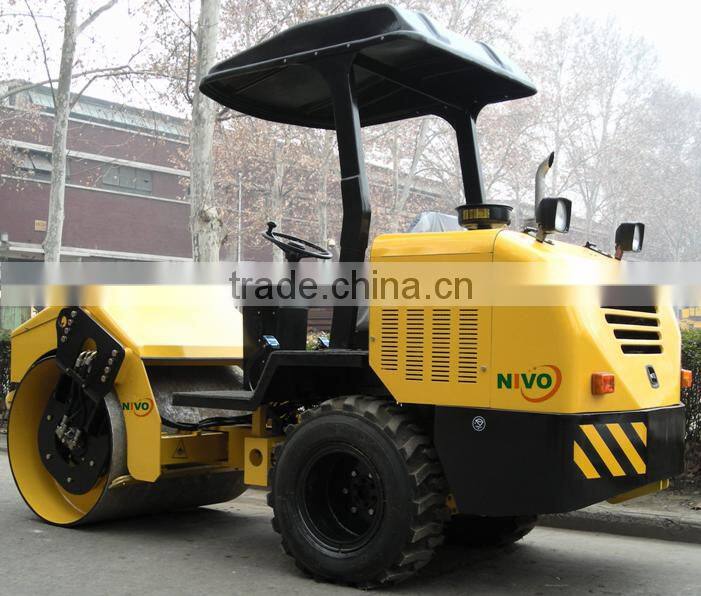

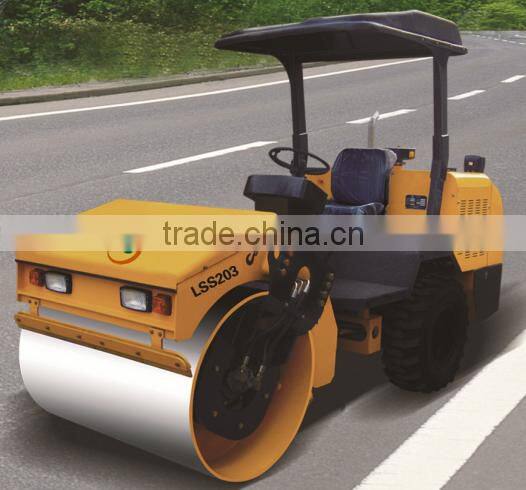

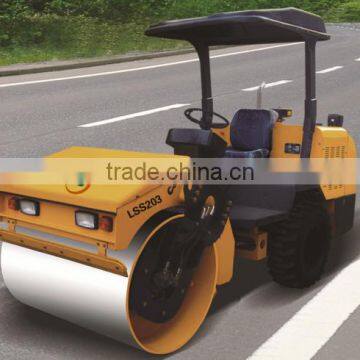

3 Ton Single Drum Vibratory Road Roller LSS203 Construction Machinery Compactor Price

LSS203 Single Drum Vibratory Rollers

The series of products is small self-propelled vibratory roller. It is mainly used for compacting building and construction materials such as all kinds of non-cohesive materials. sandy soil. graves. macadam-aggregate mixtures. stabilized soil. bituminous concrete. etc. Especially it is most economical for village highway. large community road. water conservancy construction real estate development foundation treatment and other mini-type projects.

Main Features

1.Famous brand multi-cylinder engine for high performance. integral axle and gearbox assembly with dozens of year's mature technique. features strong power. stable performance. high efficiency. wide application range.

2.High performance-cost ratio. small investment one time. quick cost recovery. convenient repair. low fittings price.

3.Compact design. low center of gravity. flexible and convenient operation. Generally it can move between sites without any transport equipment itself.

4.Hydraulic steering for easy and safe operation.

TECHNICAL SPECIFICATIONS

Model: LSS203

Operating mass: 3000kg

Static linear load: 114N/cm

Vibration frequency: 50Hz

Centrifugal force: 32kN

Gradeability: 20%

Min.Turning radius: 4600mm

Max.travel speed:7.3km/h

Drum width: 1200mm

Diesel engine model: ZN390Q

Diesel engine power: 22kW

Diesel rotational speed:2400r/min

Overall dimensions: 3505*1390*2265mm
