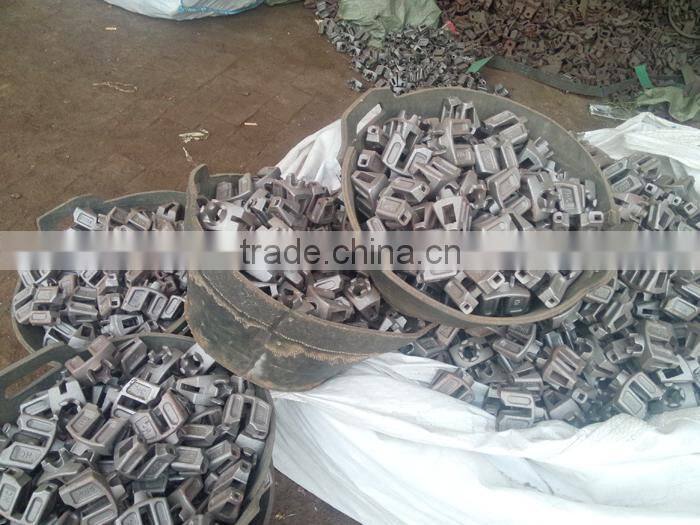

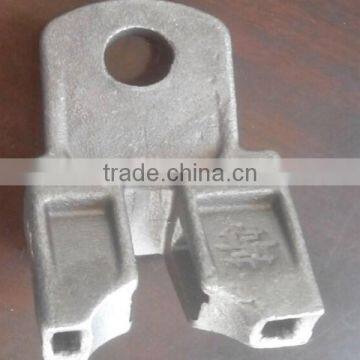

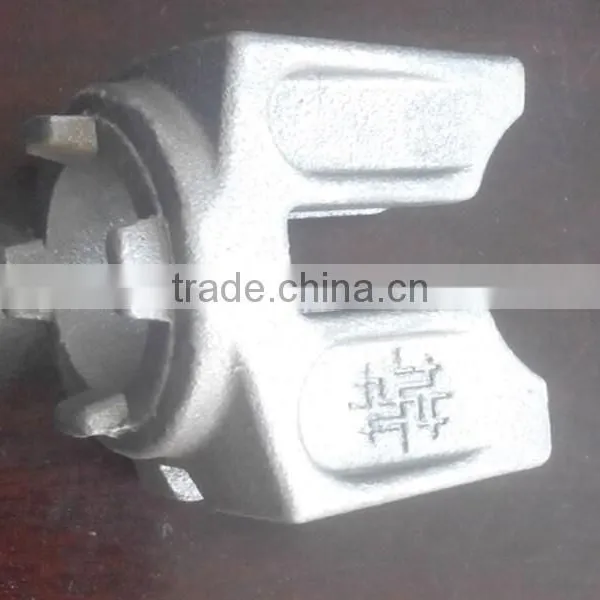

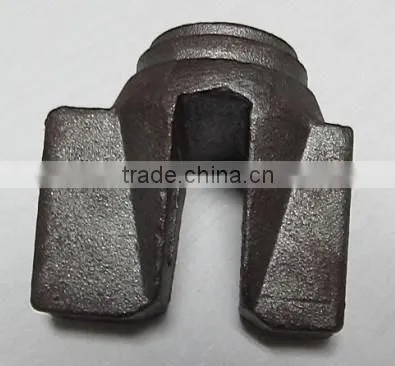

construction metal spare parts,scaffolding spare parts,ringlock ledger ends
1. Surface treatment:Hot dipped galvanized
2. Material: Q235 for standards, Q235 for other components or as your request
3. Diameter: 48.3mm
4. Thickness of the tube: 3.25MM

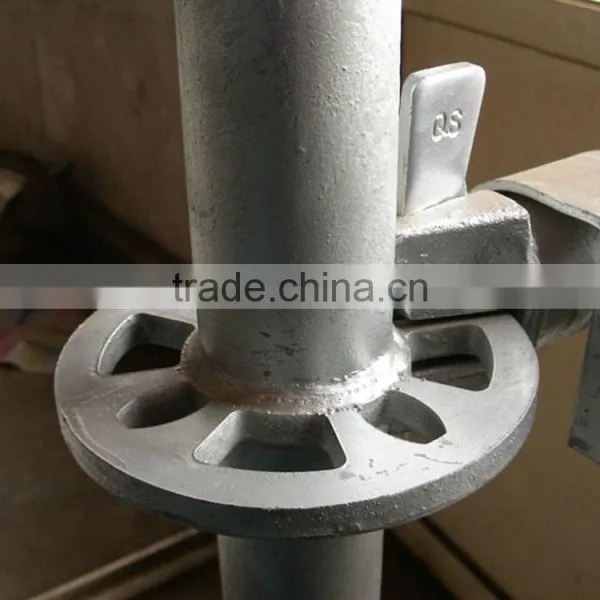

5 . Rosette: Q235, 10MM thickness
6. Components: Standard, Ledger, Brace, Metal Plank, Ladder, Base jack, Rosette, base collar
7. Standard with spigot, ledger and brace with forged connect point
8. Produced in our own factory,can control the zinc thickness much better
9. Port of loading: Tianjin
10. Samples are available
11. ISO 9001-2000 approved.
12. Performance:good bearing capacity,durable & stable
13. Test: SGS, BV or as per your request
14. OEM service is available.
Superior quality with a best price, welcome here!
Scaffolding layher System standard/48.3mm * 3.2mm
| Description | Dim(L)mm | Weight (kg) |
| 1.0m | 1000mm | 4.99 |
| 1.5m | 1500mm | 7.8 |
| 2.0m | 2000mm | 9.7 |
| 3.0m | 3000mm | 14.41 |
| 4.0m | 4000mm | 19.12 |
Scaffolding layher System Ledger/48.3mm * 3.2mm
| Description | Dim(L)mm | Weight (kg) |
| 0.425m | 425mm | 2.3 |
| 0.638m | 680mm | 3.24 |
| 0.9m | 900mm | 4.05 |
| 0.935m | 935mm | 4.18 |
| 1.25m | 1250mm | 5.34 |
| 1.8m | 1800mm | 7.36 |
| 2.7m | 2700mm | 10.36 |
Scaffolding layher System Diagonal /48.3mm * 3.2mm
| Description | Dim(L)A*Bmm | Weight (kg) |
| 0.9m * 1.25m | 900mm * 1250mm | 6.28 |
| 1.25m * 1.8m | 1250mm * 1800mm | 8.6 |
| 1.25m * 2.7m | 1250mm * 2700mm | 11.45 |
Pls noted that we can produce as per your drawing or request, and so can design for your project.
Advantages of ringlock system:
1) To be erected easily and quickly
2) Installed to different angels with rosettes of two different hole being positioned there
3) Ringlock scaffolding provides complete flexibility to lock in any angel.
4) Diagonal braces are to be tailored in
accordance with the lengths of vertical and horizontal tube
SOME PHOTOS FOR REFERENCE:
OUR WORKSHOP
OUR ADVANTAGE:
WHAT SERVICE WE OFFER?
We offer you OEM service for casting parts , especially in sand casting.
Sand casting,also known as sand molded casting, is a metal casting process characterized by using sand as the mold material. The term "sand casting" can also refer to an object produced via the sand casting process.Sand casting is relatively cheap and sufficiently refractory even for steel foundry use. In addition to the sand,a suitable bonding agent is mixed or occurs with the sand. The mixture is moistened with water to develop strength and plasticity of the clay and to make the aggregate suitable for molding.The sand is typically contained in a system of frames or mold boxes known a flask. The mold cavities and gate system are created by compacting the sand around models, or patterns, and or carved directly into the sand. Can maintains typical tolerance accuracy within CT12-CT14 standard, with a surface finish of Ra50-100.
CAN WE OFFER CNC CATING PARTS?
Yes, We offer CNC service to make the surface of casting parts as polished & precise as you request.
WHAT KIND OF SURFACE TREATMENT CAN WE GET?
Heat Treatment, shot blasting, sand blasting, machining, polishing, plating, powder coating, anodizing, zinc plated(galvanization,), oxide, etc.
HOW WE MAKE THE PARTS COMPLY TO CUSTOMER'S REQUIREMENT?
Useing our coordinate measuring machine, tensile testing machine, spectrograph and other testing equipments to make all the goods qulified.
HOW CAN WE QUOTE FOR YOU?
As our factory only supply OEM service, Please send us enquiry by email, with all the technical drawings you have, with all of your requirements, such as material grade, tolerance, machining demands, surface treatment,heat treatment, mechanical property requirements, etc. Our specialized engineer will check and quote for you, we would appreciate the opportunity and will respond in 3~5 working days or less.
It is also best if you can provide a sample, we can also quote depends on the sample.
