Help CenterQRY20 TRUCK CRANE
Related Products

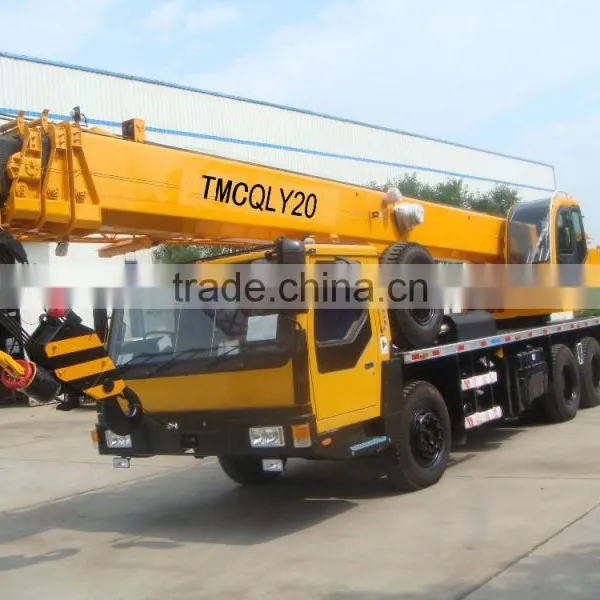

Through our innovation and improvement ,QLY20 truck crane is ahead of domestic industry by its “ environment protection , safety , reliability and advanced” ,the product integrates the advanced design and manufacturing techniques at home and abroad .the product adopted full-head luxury chassis cabin, and superstructure integral operating cabin with large view, fully covered walking plate at the left side and right side, six-axle automobile chassis , driving type 12×8,five-section telescopic boom, 5-section hexagon large curve boom , double-cylinder front support luffing ,two-section jibs(truss type and box type),double H type outrigger and attached with the front 5th outrigger which can realizes 360°full slewing lifting work, the machine adopted the pilot handle control technique, so the machine has strong lifting performance and it is easy and flexible to operate the truck crane for user.
1 |
MAX.LIFTING TORQUE |
kN·m |
1120 |
|
2 |
MAX. RATED LIFTING CAPACITY |
kg |
30000 |
|
3 |
BASIC BOOM LENGTH |
mm |
9800 |
|
4 |
FULL EXTENSION BOOM LENGTH |
mm |
31000 |
|
5 |
MAX. ELEVATON ANGLE OF BOOM |
(°) |
80 |
|
6 |
MIN.ELEVATION ANGLE OF BOOM |
(°) |
-3 |
|
7 |
LONGITUDINAL SPAN OF OUTRIGGER |
mm |
6810 |
|
8 |
LATERAL SPAN OF OUTRIGGER |
mm |
6800 |
|
9 |
MAX.SPEED OF SINGLE LINE |
m/min |
83 |
|
10 |
LUFFING TIME |
HOISTING BOOM |
s |
77 |
LOWER BOOM |
28 |
|||
11 |
TELESCOPING TIME |
FULL EXTENSION TIME |
s |
90 |
FULL RETRACTION TIME |
72 |
|||
12 |
MAX.SLEWING SPEED( WITHOUT LOAD) |
r/min |
0~2.5 |
|
13 |
OVERALL LENGTH |
mm |
12570 |
|
14 |
OVERALL WIDTH |
mm |
3000 |
|
15 |
OVERALL HEIGHT |
mm |
3700 |
|
16 |
WHEEL BASE |
mm |
3820 |
|
17 |
TRACK BASE |
mm |
2500 |
|
18 |
FRONT SUSPENSION |
mm |
1500 |
|
19 |
REAR SUSPENSION |
mm |
1500 |
|
20 |
FRONT EXTENSION |
mm |
1850 |
|
21 |
REAR EXTENSION |
mm |
1650 |
|
22 |
MIN.TURNING DIAMETER |
mm |
5500 |
|
23 |
MIN. GROUND CLEARANCE |
mm |
400 |
|
24 |
APPROACH ANGLE |
(°) |
22 |
|
25 |
DEPARTURE ANGLE |
(°) |
22 |
|
26 |
VEHICLE TOTAL WEIGHT |
kg |
28500 |
|
27 |
FRONT AXLE LOADING WEIGHT( WITH LOAD) |
kg |
14500 |
|
28 |
REAR AXLE LOADING WEIGHT(WITH LOAD) |
kg |
14000 |
|
29 |
MAX. TRAVELLING SPEED |
km/h |
41 |
|
30 |
MAX. GRADEABILITY |
% |
60 |
|
31 |
DRIVING TYPE |
- |
4x4 |
|
32 |
ENGINE |
MODEL |
|
ISDe230 30 |
TYPE |
|
IN-LINE,SIX-CYLINDER,WATER-COOLED,DIESEL ENGINE |
||
DISPLACEMENT |
L |
6.7 |
||
RATED POWER/TURNING SPEED |
kW/r/min |
169/2200 |
||
MAX.TORQUE/TURNING SPEED |
N·m/r/min |
900/1200-1700 |
||
33 |
GEAR BOX |
MODEL |
|
WG180 |
TYPE |
- |
PLANET ,POWER SHIFT |
||
CONTROLLING TYPE |
- |
ELECTRON CONTROL,POWER SHIFT |
||
34 |
FRONT AXLE |
MAIN REDUCTION RATIO |
|
19.44 |
35 |
REAR AXLE |
MAIN REDUCTION RATIO |
|
19.44 |
36 |
REDIRECTOR |
MODEL/TYPE |
- |
BZZ-500/FX |
STEERING TYPE |
- |
steering wheel |
||
37 |
BRAKE SYSTEM |
DRIVING BRAKE SYSTEM TYPE |
- |
HYDRAULIC CLIP BRAKE |
BRAKE FORCE ADJUSTING TYPE |
- |
RELIEF VALVE |
||
PARKING BRAKE TYPE |
- |
HYDRAULIC CLIP BRAKE |
||
EMERGENCY BRAKE TYPE |
|
FOOT PEDAL |
||
38 |
TIRE |
MODEL/QUANTITY |
|
16.00R25(28 LAYERS)/4 |
PRESSURE OF TIRE |
MPa |
0.9 |
||
39 |
SUSPENSION |
FRONT |
|
RIGID HANG/OIL-AIR SUSPENSION |
REAR |
|
SWING BRACKET |
||
40 |
CABIN |
PASSENGER NUMBER |
|
1 |
TYPE |
|
SINGLE DOOR |
||
