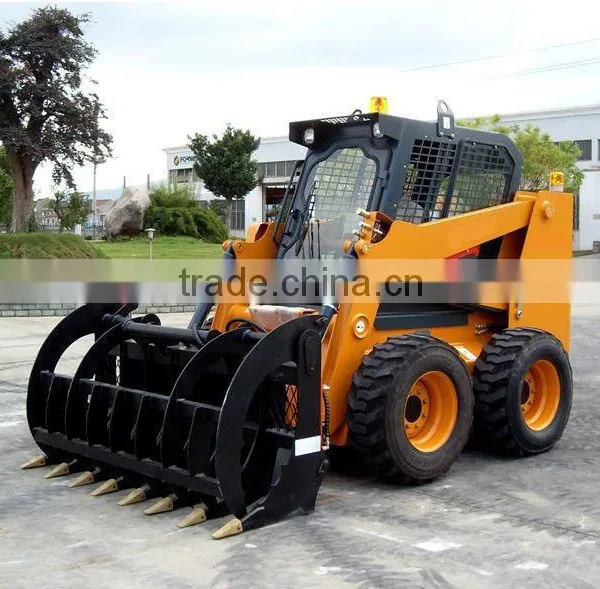

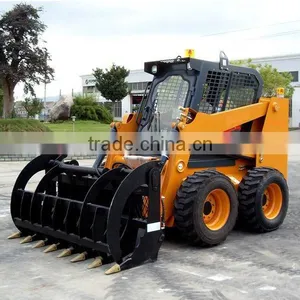

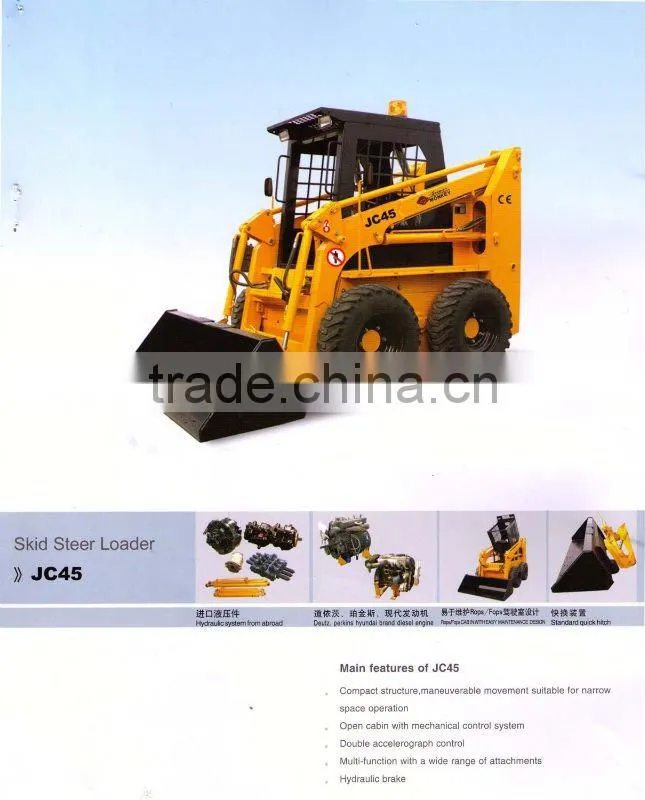

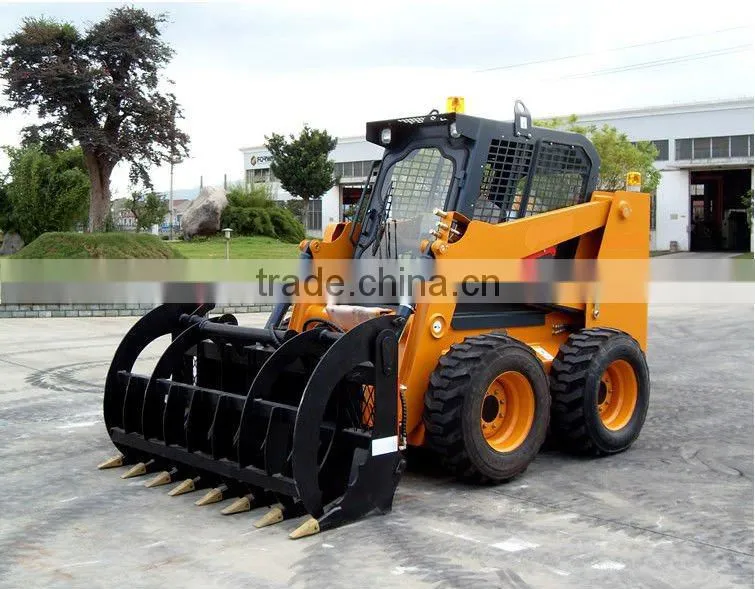

JC20XX Skid Steer Loader
Compact structure, maneuverable movement suitable for narrow space operation
Open cabin with mechanical control system
Double accelerograph control
Multi-function with a wide range of attachments
Hydraulic brake

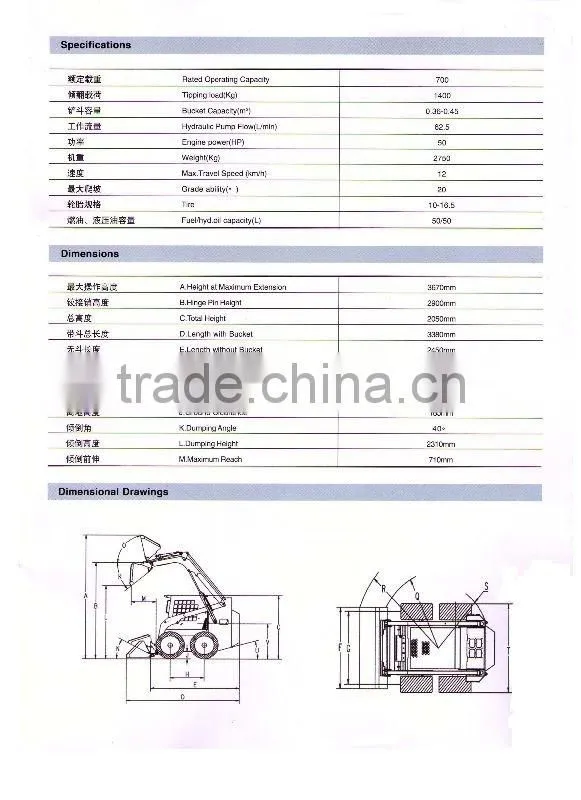

Item | description | Item | description |
Rated operating capacity(kg) | 700 | Hinge pin height (mm) | 2900 |
Tipping load (kg) | 1400 | Total height (mm) | 2050 |
Bucket capacity(m3) | 0.36-0.45 | Length with bucket (mm) | 3380 |
Hydraulic pump flow (L/min) | 62.5 | Length without bucket(mm) | 2450 |
Engine power (hp) | 50 | Width with bucket (mm) | 1740 |
Weight(kg) | 2750 | Track width (mm) | 1450 |
Max travel speed (km/h) | 12 | Wheelbase (mm) | 991 |
Grade ability | 20 | Ground clearance (mm) | 185 |
Tire | 10-16.5 | Dumping angle | 40 |
Fuel/hyd oil capacity (L) | 50/50 | Dumping height (mm) | 2310 |
Height at maximum extension | 3670 | Maximum reach (mm) | 710 |
