Help CenterSkid Steer Loader J45 OEM
Related Products

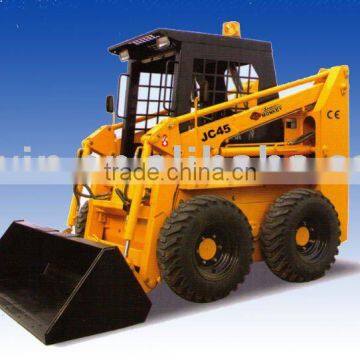

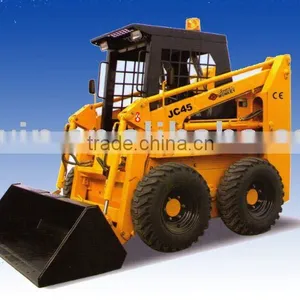

JC45 Skid Steer Loader
Compact structure, maneuverable movement suitable for narrow space operation
Open cabin with mechanical control system
Double accelerograph control
Multi-function with a wide range of attachments
Hydraulic brake

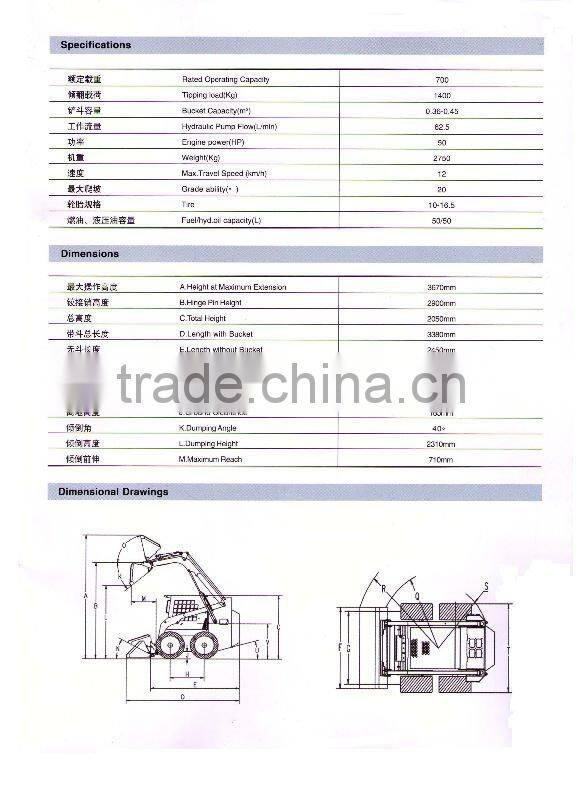

Item |
description |
Item |
description |
Rated operating capacity(kg) |
700 |
Hinge pin height (mm) |
2900 |
Tipping load (kg) |
1400 |
Total height (mm) |
2050 |
Bucket capacity(m3) |
0.36-0.45 |
Length with bucket (mm) |
3380 |
Hydraulic pump flow (L/min) |
62.5 |
Length without bucket(mm) |
2450 |
Engine power (hp) |
50 |
Width with bucket (mm) |
1740 |
Weight(kg) |
2750 |
Track width (mm) |
1450 |
Max travel speed (km/h) |
12 |
Wheelbase (mm) |
991 |
Grade ability |
20 |
Ground clearance (mm) |
185 |
Tire |
10-16.5 |
Dumping angle |
40 |
Fuel/hyd oil capacity (L) |
50/50 |
Dumping height (mm) |
2310 |
Height at maximum extension |
3670 |
Maximum reach (mm) |
710 |
