Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > BG-F-039/052 Series Agricultural Gearbox
US$ 50 - 300
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
BOWIN
Model Number:
BG-F-039/052
Gearing Arrangement:
Bevel / Miter
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BG-F-053/059 Series Agricultural GearboxUS$ 90 - 180MOQ: 200 Sets -
BG-T-010/012 Series Agricultural GearboxUS$ 80 - 150MOQ: 200 Sets
-
BG-T-013/014 Series Agricultural GearboxUS$ 120 - 180MOQ: 200 Sets
-
BW5550 L Series Irrigation Centre Motor Drive GearboxEUR 100 - 150MOQ: 200 Sets
-
BW551250001 Agricultural GearboxUS$ 80 - 180MOQ: 50 Sets
Brand Name
BOWIN
Model Number
BG-F-039/052
Gearing Arrangement
Bevel / Miter
Output Torque
20~35NM
Rated Power
30~40 HP
Input Speed
540RPM
Output Speed
800~1050 RPM
1. BG-F-030/034 Series Agricultural Gearbox
2. Ratio ranging at 1:1.47 and 1:1.92
3. Input Power: 30~40HP
4. Output Torque: 20~35NM
5. Weight: 16kg.

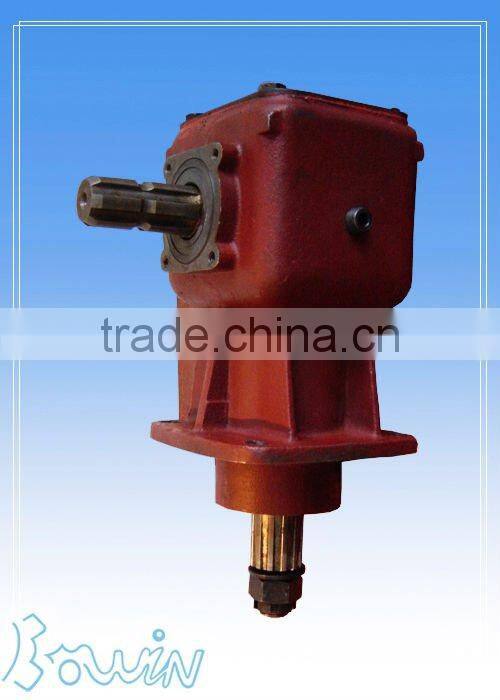

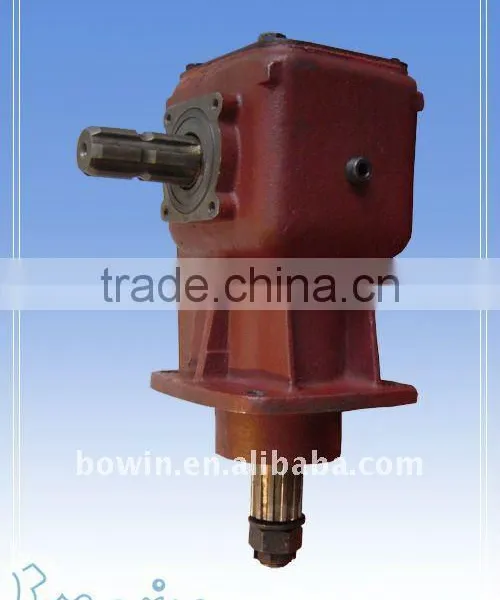

This BG-F-039/052 series agricultural gearbox prodcuts is applied on finishing movers, rotary cutters, rotary slashers and tillage machinery, etc.

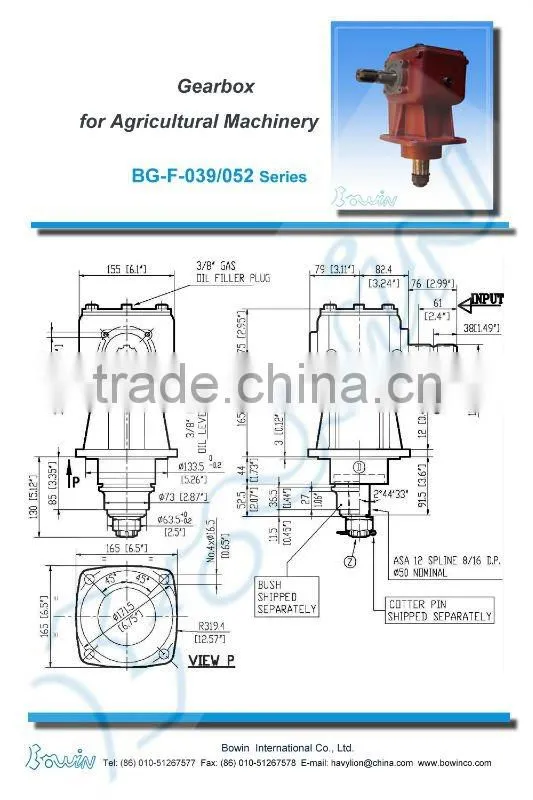

It's designed for OEM market and any modifications with drawing or specification are possible.
The most prices and terms from Chinese suppliers.
This model is quite similar to COMER gearbox LF-205J.
