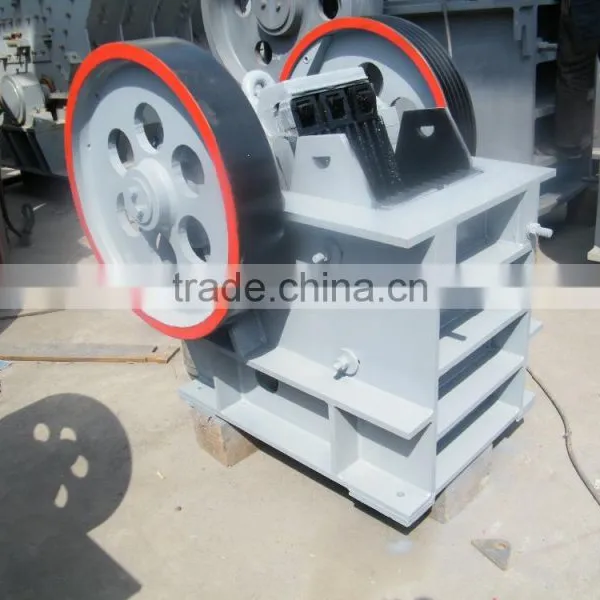

Jaw crusher is a type of effective and energy conservation crushing machinery. Medium and large scale jaw crusher is main product of AMEC.and we have reached international level on designing and producing large scale crusher. Jaw crusher is main applied in all kinds of ore and big block material medium size crushing, material's hardness should be less than 320Mpa, coarse crushing and fine crushing are available. This series has a complete range of specifications, feeding size could be 125mm~750mm, it's the first choice of primary crushing. Jaw crusher could be widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industries
Working Principle of Jaw Crusher:
Motor drives eccentric shaft rotating by belt pulley, moving jaw is forced to move to or leave from fixed jaw, material will be squeezed, twisted and been grinding, material will be crushed to smaller size and final product will fall down and discharged from discharge port.
Jaw Crusher Technical Data:
| Model | Size of Feed Opening(mm) |
Max Feeding Size(mm) | Adjustable Size of Discharge Opening(mm) |
Capacity(t/h) | Motor Power Pole |
Power(kw) | Dimension(mm) | Weight(t) |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 4 | 5.5 | 670×820×760 | 0.81 |
| PE-150×750 | 150×750 | 125 | 10-40 | 5-16 | 4 | 15 | 1050×1490×1055 | 3.8 |
| PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 4 | 15 | 1160×1300×1240 | 2.8 |
| PE-400×600 | 400×600 | 350 | 40-100 | 16-65 | 6 | 30 | 1480×1710×1646 | 7 |
| PE-500×750 | 500×750 | 425 | 50-100 | 45-100 | 6 | 55 | 1800×1796×1940 | 12 |
| PE-600×900 | 600×900 | 500 | 65-140 | 60-160 | 6 | 75 | 2235×2210×2380 | 17 |
| PE-750×1060 | 750×1060 | 630 | 80-160 | 90-320 | 8 | 110 | 2430×2302×3110 | 29 |
| PE-800×1060 | 800×1060 | 640 | 80-200 | 110-350 | 8 | 110 | 2530×2310×3110 | 30 |
| PE-900×1200 | 900×1200 | 750 | 95-210 | 140-450 | 8 | 130 | 3789×2826×3025 | 50 |
| PE-1000×1200 | 1000×1200 | 850 | 110-235 | 160-550 | 8 | 160 | 3889×2826×3025 | 57 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 8 | 220 | 4590×3342×3553 | 100.9 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 15-30 | 6 | 22 | 1750×1500×1420 | 5 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 6 | 30 | 1940×1650×1450 | 7 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-65 | 6 | 37 | 1940×1850×1450 | 7.7 |
| PEX-300×1300 | 300×1300 | 250 | 25-70 | 25-90 | 6 | 55 | 2285×2000×1720 | 11 |
Nude packing for the main machine
Wooden case for the power motor and spare parts
We have office oversea we can easy to privide the csutomer about befroe sales service, machine quality control service ,technical support and after service.
Changzhou Machinery and Equipment Import and Export Co., Ltd. (AMECCO) was founded in 1983. Taking advantage of the ownership of our six manufacturing subsidiary companies, we share our benefits in production and technology with our clients while we focus on the import and export of commodities and service. Strict quality control system, timely delivery and customer-oriented service make us have established trade relations with clients in more than 70 countries and regions.
Our main scope of our business:
Machinery and Equipment:
Power machinery, agricultural machinery, garden machinery, construction machinery, mining machine,machine tools and complete equipment
Power Transmission Parts
Chains, sprockets, taper bushes, gears and shafts
OEM components:
Machined, forged, cast, punched and welded workpiece
Micro Motors
Step motors, DC brushed & brushless motors, AC motors for aircon and paper shredder
Automobile Accessories
Auto lens and lamps, mirrors, motors and mechanical parts
Keeping the customers satisfied has been our strong wish. Please contact us for more information. We welcome your orders.
