US$ 8,280 - 13,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
Huahe
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ES10-10WA Light Electric StackerUS$ 1,000 - 1,800MOQ: 1 Unit -
ES12-12WA Light Electric StackerUS$ 1,000 - 1,800MOQ: 1 Unit
-
ES10-10WAi Light Electric StackerUS$ 1,000 - 1,800MOQ: 1 Unit
-
ES12-12WAi Light Electric StackerUS$ 1,000 - 1,800MOQ: 1 Unit
-
ES20-15ET Mini Electric Pallet TruckUS$ 1,000 - 1,800MOQ: 1 Unit
Condition
New
Place of Origin
Hubei, China
Brand Name
Huahe
Model Number
HH25Z-N1-D(VERTICAL EXAUST)
Type
Powered Pallet Truck
Power Souce
Diesel Engine
Rated Loading Capacity
2500kgs
Max. Lifting Height
6000mm
Min. Lifting Height
3000mm
Fork Length
1070mm
Fork Width
125mm
Overall Dimensions
2630x1225x2120mm
Specifications

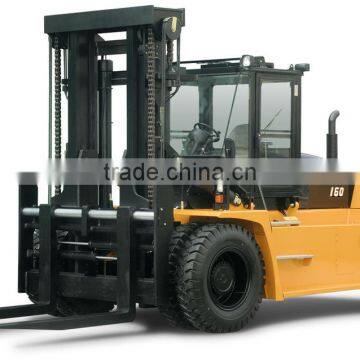

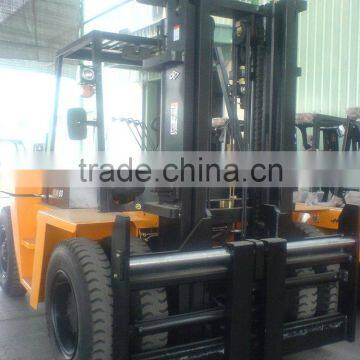

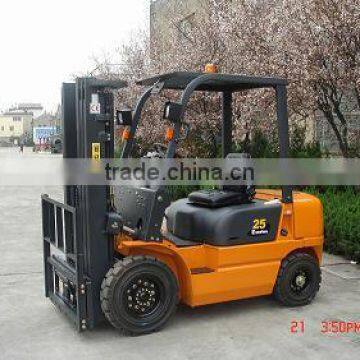

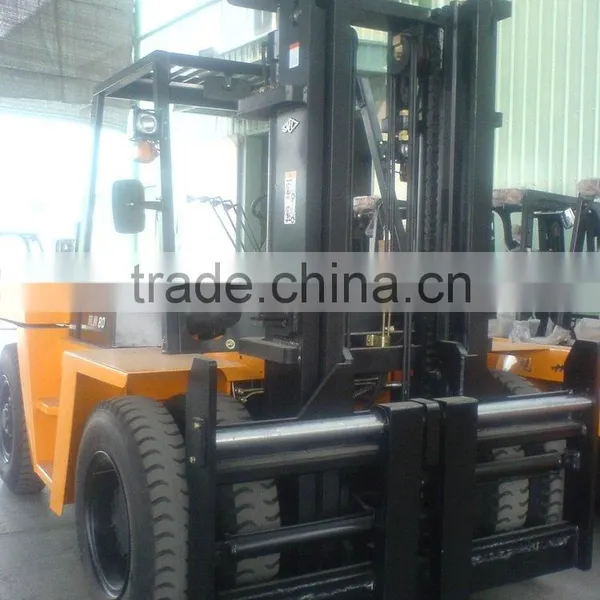

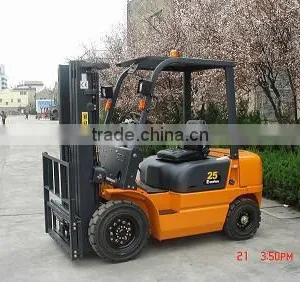

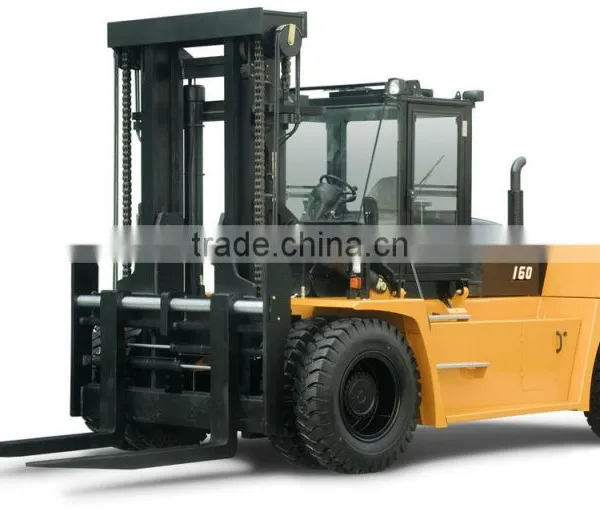

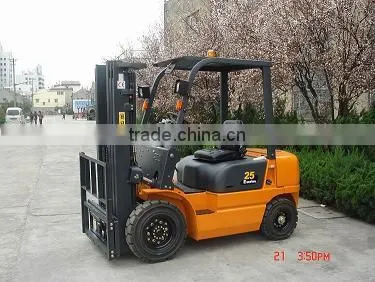

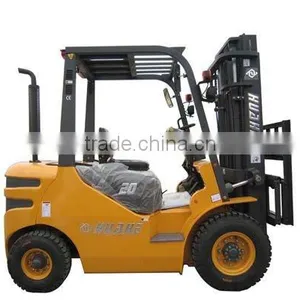

Diesel ForkliftHuahe HH20Z-N1-D(VERTICAL EXAUST)
Certificate: CE&ISO 9001:2008
XINCHAI C490BPG Engine
Capacity: 2.5T
| Generals | Model | Unit | HH20 | HH20Z | |
| Power type | Diesel | ||||
| Rated capacity | Kg | 2000 | |||
| Load center | mm | 500 | |||
| Dimensions | Lift height | mm | 3000 | ||
| Free lift height | mm | 130 | |||
| Fork size (L× W× T) | mm | 1070× 122× 40 | |||
| Mast inclination F/R | Deg | 6° /12° | |||
| Front overhang | mm | 482 | |||
| Overall Dimensions | Length to face of fork | mm | 2480 | ||
| Overall width | mm | 1150 | |||
| Mast lowered height | mm | 2095 | |||
| Overhead guard height | mm | 2120 | |||
| Turning radius | mm | 2320 | |||
| Min. right angle aisle width | mm | 1910 | |||
| Performance | Travel speed | Unload I/II | Km/h | 9/20 | |
| Full load I/II | Km/h | 8.8/18.5 | |||
| Lift speed | mm/s | 480 | |||
| Max. grade ability | % | 20 | |||
| Max. drawbar pull | Kn | 14 | |||
| Self weight | Kg | 3720 | |||
| Wheels & Tires | Tires | Front | 7.00-12-12PR | ||
| Rear | 6.00-9-10PR | ||||
| Tread | Front Q | mm | 970 | ||
| Rear S | mm | 970 | |||
| Wheelbase | mm | 1650 | |||
| Min. ground clearance (unload/full load) | Mast | mm | 152/132 | ||
| Frame | mm | 158/138 | |||
| Drive units & Control | Battery | V/Ah | 12/90 | ||
| Engine | Model | XINCHAI C490BPG | |||
| Rated output | Kw/rpm | 37/2650 | |||
| Rated torque | N. m/rpm | 148/1800 | |||
| Displacement | cc | 2540 | |||
| Transmission | Type | Hydraulic | |||
| Shift Fwd/Rwd | 1/1 Power shift | ||||
| Operating pressure | Mpa | 17.5 | |||
