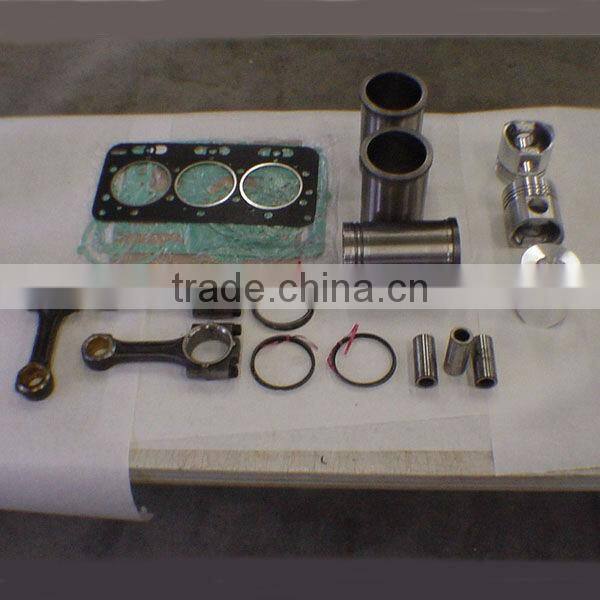

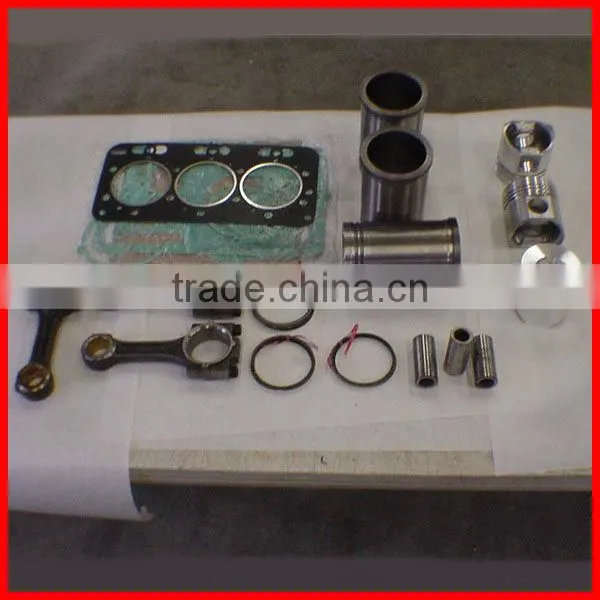

Jinma Tractor TY-395 Engine Parts

in carton

Specifications

TY-395 Engine parts for Jinma tractor
including head gasket, piston,
cylinder sleeve, Compression ring
Conecting rod bearing

Includes the following part numbers with enough of each to rebuild the engine:



Engine gasket set - TY395 - qty-1

TY395I.4.1-4   Piston - qty-3

TY395I.2-7   Cylinder sleeves - qty-3

TY295.4.1.2-1  Connecting rod - qty-3

TY295.4.1-3  Piston pin - qty-3

Circlip 37  piston pin circlip - qty-6

Compression ring set - TY395 - qty-3

TY295.4.1-6  Conecting rod bearings - qty-3 sets

TY295.2-4 Upper main bearing shell - qty-2

TY295.2-5 Lower main bearing sheel - qty-2

TY295.2-6 Upper main bearing shell - qty-2

TY295.2-7 Lower main bearing shell - qty-2

TY295.2-3  Upper thrust piece - qty-2

Lower thrust piece set - TY395 - qty-1

JD4102.2.1-2A  Front camshaft bushing - qty-1

JD4102.2.1-3 Rear camshaft bushing - qty-1

JD4102.2.1-5  Inner camshaft bushing - qty-1

 TY295.2-8  Water sealing ring - qty-6





If you want the spare parts, please send Email to fotmasale01# or fotmasale01#. Please change # to @ when sending the Email.
