Electronic VE Pump Tester

Electronic VE Pump Tester thumbnail-1
Electronic VE Pump Tester photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
12PSDW
Model Number:
VP37, VP44
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Wuhan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name 12PSDW
Model Number VP37, VP44
Power Electronic
Usage Auto Testing Machine

Specifications

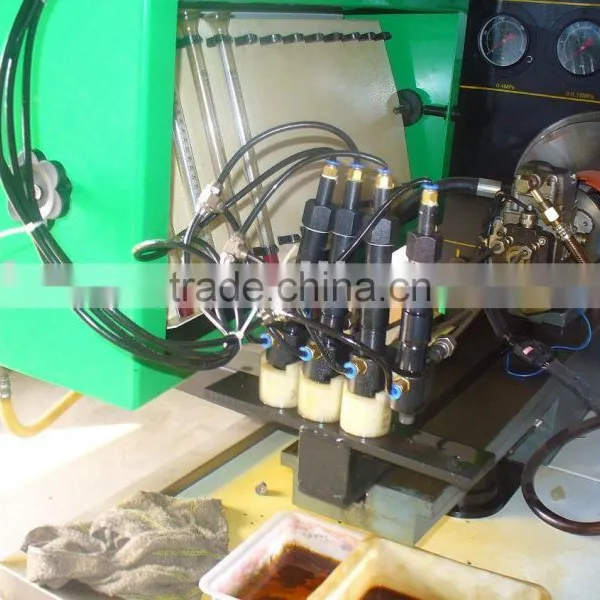

This elecronic VE pump tester is to provide signal to drive the solenoids on the pump to control injection quantity&timing

VP37 Eletronic Contorller Oil pump Calibrating data

1.Cavity pressure

Speed RPM  Voltage MV  Internal Pressure BAR    MINMUM    MAX.

500                   2510.0              8.00                         7.30       8.70

2100                  3330.0             10.70                       10.00     11.40

300                   2510.0              7.50                         6.30       8.70



2.Pistons trip timing

Speed RPM          Voltage MV     travel MM         MIN.         MAX

300                   2510.00          8.50             6.00          11.00

2100                  3330.00          12.30            11.60         13.00



3. Delivery Oil quantity500 times

Speed RPM  Voltage MV  return oil Temp.  Oil Quantity ML  Min.     Max.

100            2820.00          60           9.8           8.4          11.2(200)

400            2000.00          60            6.0           4.2         6.8

800            2650.00          60            18.2          18.1      18.3

500            2510.00          60            19.2          18.4      19.9

1100           2420.00          60            13.6          13.0      14.3

2100           3330.00          60            18.9          18.1      19.6

When test the speed range from 100-400rpm, open the advance angel (timing) electromagnetic valve switch button of the tester. When the speed is 100rpm, the oil quantity counts 200 times.

For more details, please feel free to contact us!
