Help CenterRepair Tester for CR Systems
Related Products
Specifications

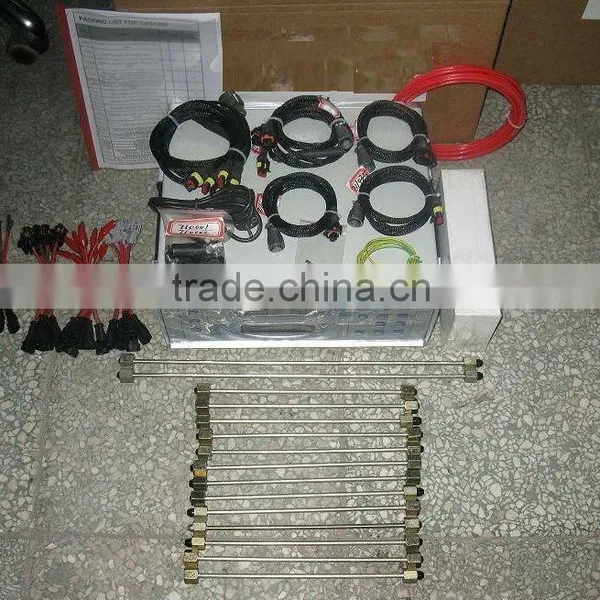

Repair Tester for CR Systems combines a CR pump tester and a 6-injector tester.This tester targets the CR systems with Bosch CP1/CP2/CP3, Delphi CRSP and Denso HP2/HP3
pumps.
It simulates an engine ECU, to drive a solenoid on CR pump and solenoids of 6 CR injectors. A
standard high pressure pump test stand with this CR system tester will fulfill most tasks for
repairing a CR system and the components, such as injection quantities, injector fuel return,
nozzle injection spray atomization, pump condition and fuel rail pressure control.
Design Features
1. Combine two independent modules for pump and injector control
2. Pump driving signal - Adjustable duty cycle, while monitoring fuel rail pressure
3. Injector driving signal - Adjustable frequency and pulse width
4. Modulated driving signal to ensure the safety of the solenoids of the injectors
5. Software based over-pressure protection
6. Short circuit protection for solenoid driving signals
7. Rich accessories, ready to test Bosch, Denso and Delphi injectors and pumps
NEW UPGRADE:
The injection cycle counter with interface to a regular pump test bench has been added to
the tester.
