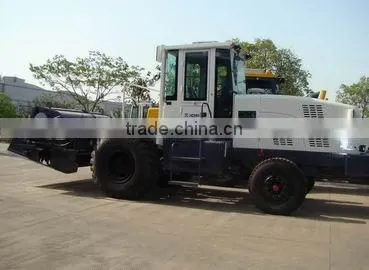

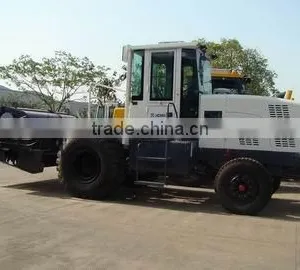

Soil Stabilizer XL230Z
US$ 20,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
XCMG
Model Number:
ZL230Z
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hubei, China
Brand Name
XCMG
Model Number
ZL230Z
Specifications
XL Series Soil Stabilizer XL210, XL250, XL230Z, with Chongqing Cummins engine, 298kw, 0~400mm mixed depth, 2100mm mixed width.XL Series Soil Stabilizers are used for highways, road, square, port, parking lot to mix stabilized soil dite work of base and sub-base layer, low-grade road construction available. They can mix / grade soil and stabilized material, aggregrate size of advanced performance, high efficiency and comfortable operation. Many key components adopt international famous products to guarantee the quality. They are the ideal machine for modern construction.
| XZ Series Soil Stabilizers Key Specifications: | ||||
| Model | XL210 | XL250 | XL230Z | |
| Engine | Chongqing Cummins | Chongqing Cummins | Chongqing Cummins | |
| Power (KW/HP) | 298/400 | 313/420 | 298/400 | |
| Mixed width (mm) | 2100 | 2500 | 2300 | |
| Mixed depth (mm) | 0~400 | 0~400 | 0~400 | |
| Traveling speed (km/h) | 0~24.5 | 0~24.5 | 0~18.5 | |
| Operating speed (km/h) | 0~3 | 0~3 | 0~2.5 | |
| Running rate (r/min) | 0~150 | 0~160 | 0~153 | |
| Wheel base (mm) | 3300 | 3300 | 5200 | |
| Front wheel base (mm) | 2200 | 2200 | 2344 | |
| Reae wheel base (mm) | 2060 | 2060 | 2150 | |
| Ground clearance (mm) | 460 | 460 | 350 | |
| Min turning radius (mm) | 7100 | 7100 | 7200 | |
| Gradeability | More than 20% (11.30°) | More than 20% (11.30°) | More than 20% (11.30°) | |
| Angle of approach | 30° | 30° | 30° | |
| Angle of departure | 18° | 18° | 18° | |
| Tire | Front | 12.00~20 | 12.00~20 | 23.5~25 |
| Rear | 23.5~25 | 23.5~25 | 17.5~25 | |
| Operating weight (kg) | 15400 | 16400;16000 | 16500 | |
| Overall measurements (L×W×H) (mm) | 8654×3240×3522 | 8748×3036×3522 | 9080×3222×3495 | |
