Changlin Wheel Loader

Hubei Fotma Machinery Co., Ltd. Gold Verified Supplier
5Yrs
Changlin Wheel Loader thumbnail-1
Changlin Wheel Loader photo-1
US$ 10,000 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
CHANGLIN
Model Number:
ZL50G-6
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name CHANGLIN
Model Number ZL50G-6
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 8215*2800*3450mm
Rated Load 5000kg
Certification CE ISO
Warranty One year
After-sales Service Provided Overseas service center available

Specifications

Convenient control;
High quality with reasonable price
Low fuel consumption and noise .
ISO,CE
Good quality with low price;

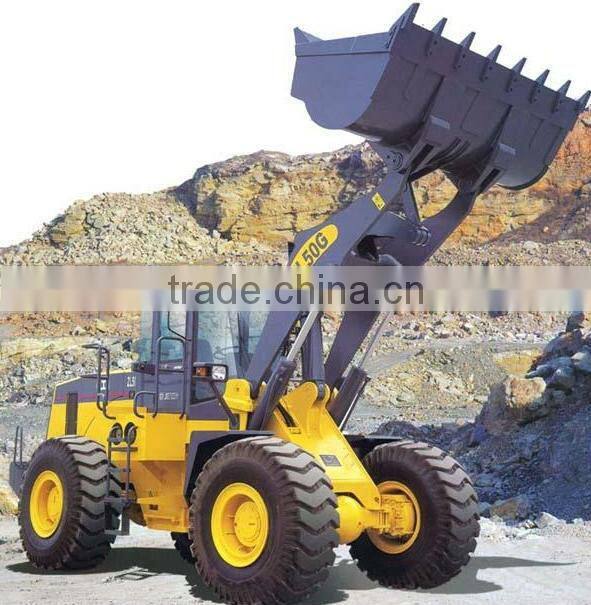

CHANGLIN ZL50G-6 Wheel Loader





Introduce:



4 forward & 3 reverse power shift transmission

KD switch operate easily and efficiently
Load-sensed full hydraulic steering system dual-pump confluent flow working hydraulic& steering system
Combined seal cylinder obtains high seal performance and more reliability



Overall Dimension

1
Length (with bucket on ground)
8215(mm)
2
Width (to outside of wheels)
2800(mm)
3
Bucket width
2946(mm)
4
Height (To the top of the cab)
3450(mm)
5
Wheel base
3350(mm)
6
Tread
2200(mm)
7
Min. ground clearance
450(mm)
Main Technical Specification
1
Rated load
5000(Kg)
2
Operating weight
16300KG
3
Rated bucket capacity
3.0(m3)
4
Max. Breakout force
160kN
5
Max. Traction
150kN
6
Max. Gradient ability
300
7
Max. dump clearance
3050(mm)
8
Dump reach
1107(mm)
9
Dump angle at any position
>450
10
Digging depth(with bucket bottom horizontal)
165(mm)
11
Min. turning radius

(1) Outside of bucket
6675(mm)
(2) Outside of rear wheel
5879(mm)
12
Pivot angle frame
400
13
Oscillating angle of rear axle
+13o
14
Lifting time of bucket
<5.8(sec.)
15
Lowering time of bucket
<3.8(sec.)
16
Dumping time
<1.2(sec.)
17
Traveling speed(Km/h),4 forward and 3 reverse

(1) 1st gear(F/R)
6.7/6.7
(2) 2nd gear (F/R)
12.2/12.2
(3) 3rd gear (F/R)
25.6/25.6
(4) 4rd gear(F)
35
Diesel engine
1
Model
 ShangChai C6121 engine
2
Type
Direct injection. Turbocharge. Water cooling
3
Rated output
158 (kW)
4
Inter-bore of cylinder/stroke
121/152(mm)
5
Total exhaust of cylinder
9.7260(L)
6
Model of starting motor
KB-24V
7
Power of start motor
7.5(KW)
8
Voltage of starting motor
24(V)
9
Rated speed
2200(r/min.)
10
Max. Torque
>843(N.m)
11
Starting type
Electric
12
Min. specific fuel consumption
<235(g/Kw.h)
13
Engine specific oil consumption
0.95-1.77(g/Kw.h)
14
Net weight
960(Kg)

changlin wheel loaderchanglin wheel loader
