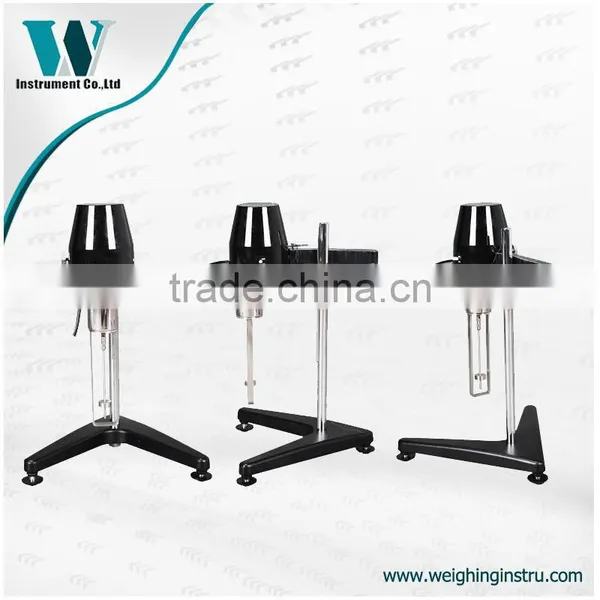

6.000.000 Mpa.s Precise Viscometer

Model

9S

Measurement Range

1-6×10⁶ mpa.s

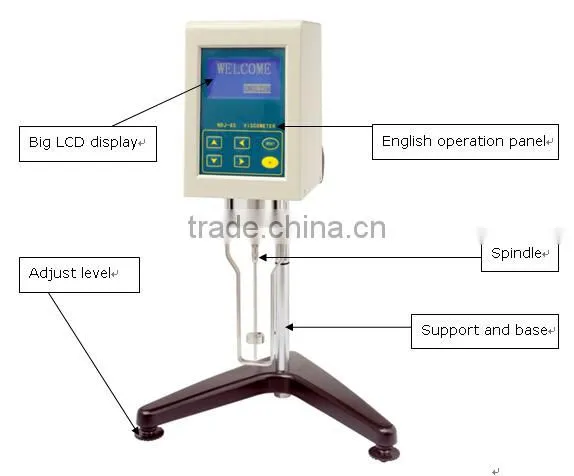

Display

LCD

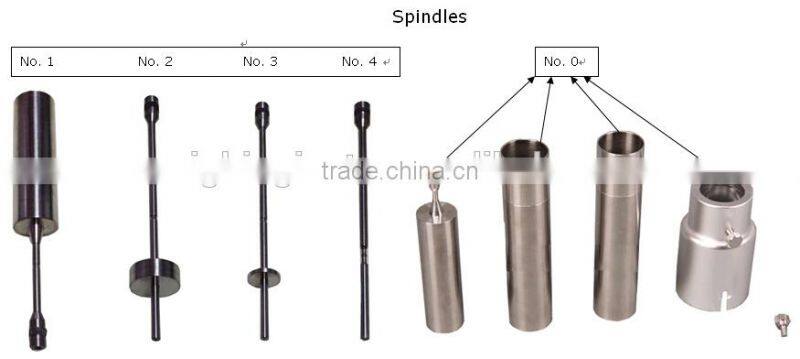

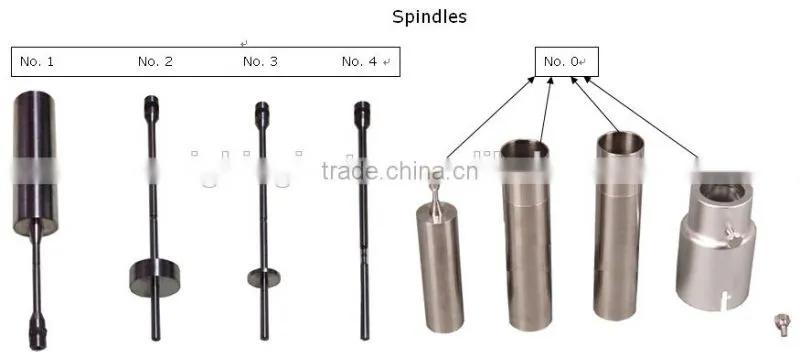

Spindles Specification

No. 1, 2, 3, 4( NO. 0 is optional)

Note: The bigger the number of the spindles, the bigger the measuring value

Rotating Speed of Spindles

0.1/ 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm/min

Interface

No

Automatic Switch

free selection of proper rotating speed or Spindles number.

Stable Cursor

Strip-type cursor fully charged displayed when reading basically stable

Measurement Tolerance

± 3%

Power

AC 220V ± 10%  50 Hz ± 10%

Working Condition

Temperature 5-35 degree

Relative humidity no more than 80%

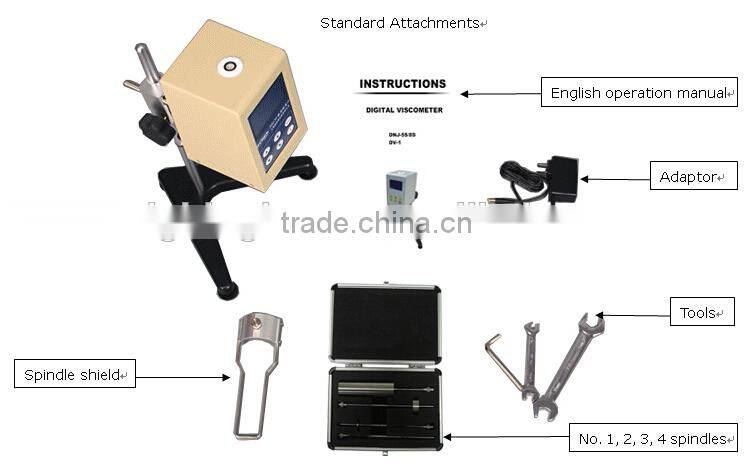

Attachments

l         No. 1,2,3,4 Spindles

l         (No. 0 Spindles is optional, if need, please contact with me.)

l         Adapter

l         Protection Frame

l         Foundation Plate

l         Up-Down Frame

l         English Manual

l         Hexagonal Spanner

l         Solid Wrench

Outline Dimension (mm)

370×325×280 mm

Packing (mm)

400×360×310 mm

Net Weight (kg)

6.8 kg

Gross Weight (kg)

9 kg

Min. Order

1 pc by Air or 10 pcs by Ship

Delivery Date (<10 pc)

Within 1 Week After Receiving Payment

H.S. Code

9027
