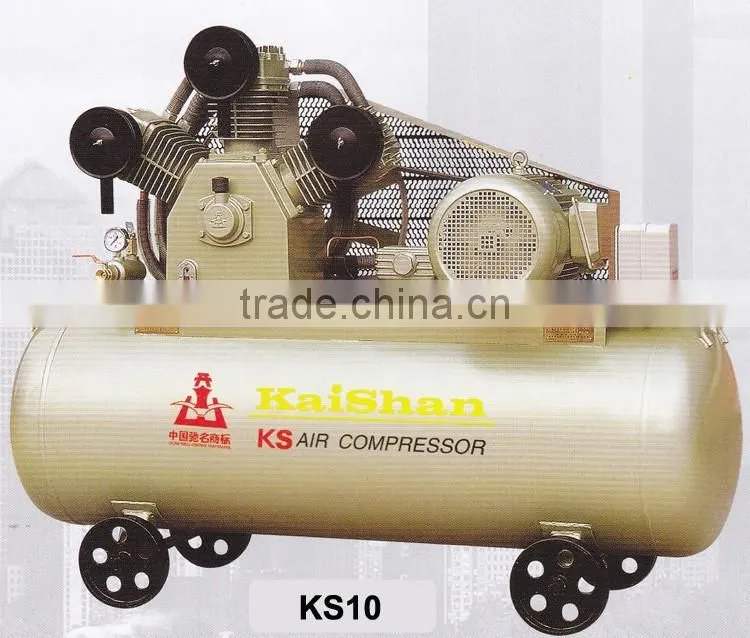

KAISHAN KS Series Electric Motor Portable Piston Air Compressor for Industrial
Features of KAISHAN Industrial Piston Air Compressor (KS series)
With a low rotational speed, compressors operate more quietly with a longer service life
The reed valve design ensures higher efficiency;
The air filter core is made of imported filter paper, which ensures excellent filtration and noise reduction effects. In addition, it features long-lasting durability;
The electromagnetic switch uses imported brand products, including Schneider and Tai’an Technology;
The Riken piston ring features long-lasting durability without the addition of oil;
The breather channel is structured with a maze pattern to prevent oil leaks;
Precisely balanced, motion components operate steadily with low noise level;
One-way valve core uses advanced composite materials, preventing air leaks;
Our fan wheels are patented technology, achieving better results in lowering temperature;
Suitable for 16 hours of continuous operation.
The Technical Data of Industrial Piston Air Compressor (KS series)
| Model | Working pressure | Capacity | Motor power | Cylinder Dia.φ * Qty | Air tank | Weight | Dimension | |
| bar | m³/min | kw | hp | mm * pcs | L | kg | mm | |
| KS-10 | 8 | 0.08 | 0.75 | 1 | φ55*1 | 50 | 65 | 810*240*800 |
| KS-15 | 8 | 0.12 | 1.1 | 1.5 | φ70*1 | 50 | 75 | 860*350*710 |
| KS-20 | 8 | 0.18 | 1.5 | 2 | φ55*2 | 80 | 130 | 980*370*800 |
| KS-30 | 8 | 0.26 | 2.2 | 3 | φ70*2 | 80 | 150 | 1000*450*750 |
| KS-40 | 8 | 0.40 | 3 | 4 | φ70*3 | 175 | 230 | 1500*520*1050 |
| KS-55 | 8 | 0.55 | 4 | 5 | φ70*3 | 175 | 280 | 1500*520*1050 |
| KS-75 | 8 | 0.75 | 5.5 | 7.5 | φ100*2 | 248 | 305 | 1600*570*1110 |
| KS-100 | 8 | 1.00 | 7.5 | 10 | φ100*3 | 200 | 340 | 1650*600*1200 |
| KS-150 | 8 | 1.50 | 11 | 15 | φ110*3 | 310 | 465 | 1850*650*1370 |
| KS-200 | 8 | 2.00 | 15 | 20 | φ125*3 | 410 | 580 | 1850*680*1420 |
| KS-240 | 8 | 2.40 | 15 | 20 | φ125*3 | 500 | 600 | 1850*710*1440 |
| KSH-20 | 12.5 | 0.13 | 1.5 | 2 | LPφ70*2 HPφ55*1 | 175 | 230 | 1500*520*1050 |
| KSH-30 | 12.5 | 0.21 | 2.2 | 3 | LPφ70*2 HPφ55*1 | 175 | 260 | 1500*520*1050 |
| KSH-40 | 12.5 | 0.30 | 3 | 4 | LPφ70*2 HPφ55*1 | 175 | 290 | 1500*520*1050 |
| KSH-55 | 12.5 | 0.45 | 4 | 5 | LPφ70*2 HPφ55*1 | 175 | 300 | 1500*520*1050 |
| KSH-75 | 12.5 | 0.60 | 5.5 | 7.5 | LPφ100*2 HPφ80*1 | 248 | 320 | 1650*600*1200 |
| KSH-100 | 12.5 | 0.80 | 7.5 | 10 | LPφ100*2 HPφ80*1 | 248 | 350 | 1650*600*1200 |
| KSHD-100 | 10 | 1.05 | 7.5 | 10 | LPφ100*2 HPφ80*1 | 248 | 350 | 1650*600*1200 |
| KSH-150 | 12.5 | 1.20 | 11 | 15 | LPφ125*2 HPφ100*1 | 310 | 480 | 1650*650*1400 |
| KSHD-150 | 10 | 1.60 | 11 | 15 | LPφ125*2 HPφ100*1 | 310 | 480 | 1650*700*1400 |
| KSH-200 | 12.5 | 1.70 | 15 | 20 | LPφ125*2 HPφ100*1 | 410 | 600 | 1850*800*1550 |
| KSH-240 | 12.5 | 2.10 | 15 | 20 | LPφ125*2 HPφ100*1 | 500 | 650 | 1850*800*1600 |

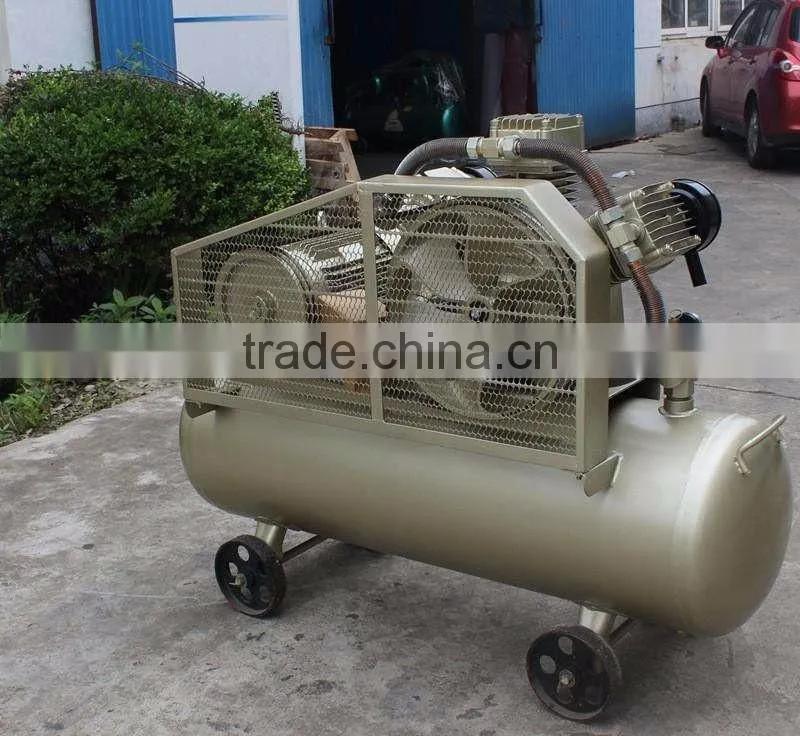

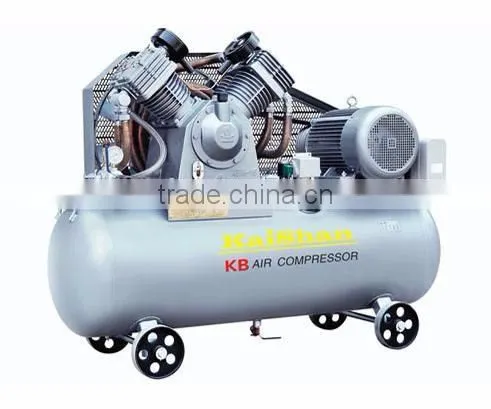

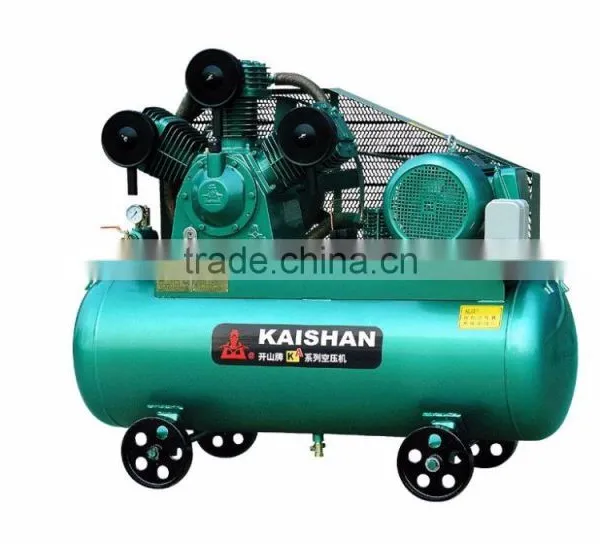

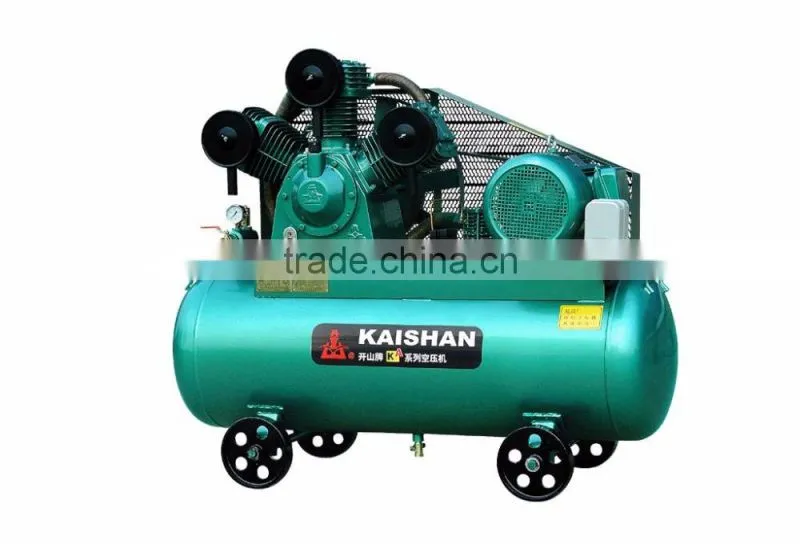

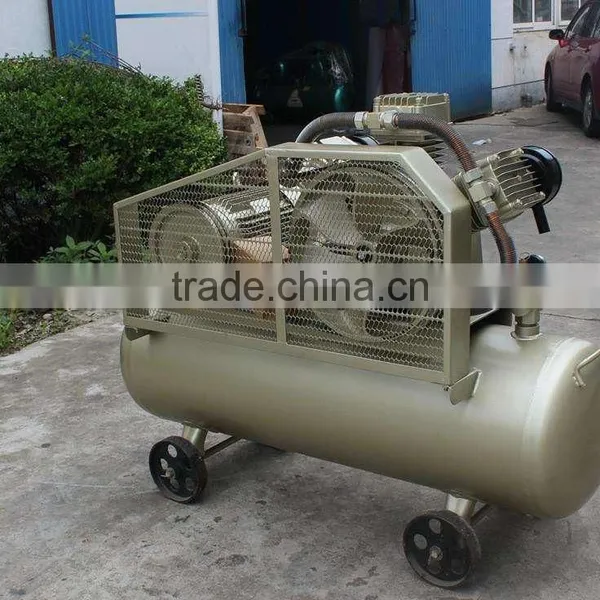

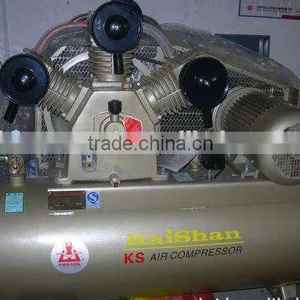

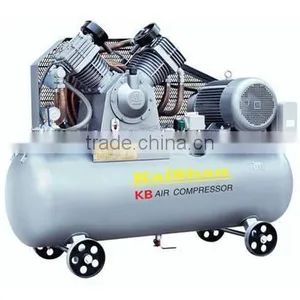

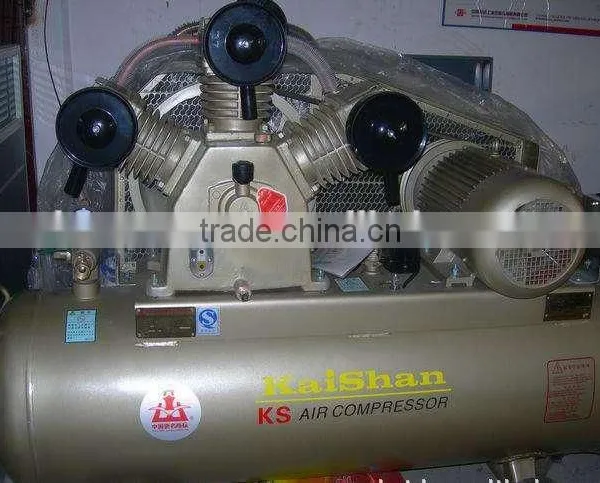

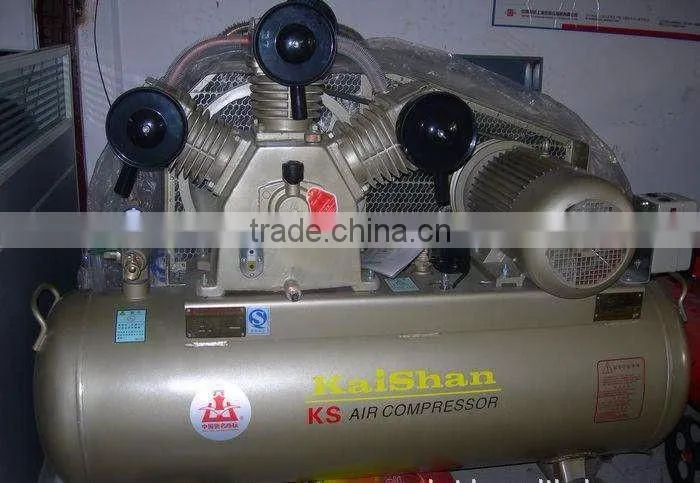

Photoes Detailed:
For more details, pls contact me.
