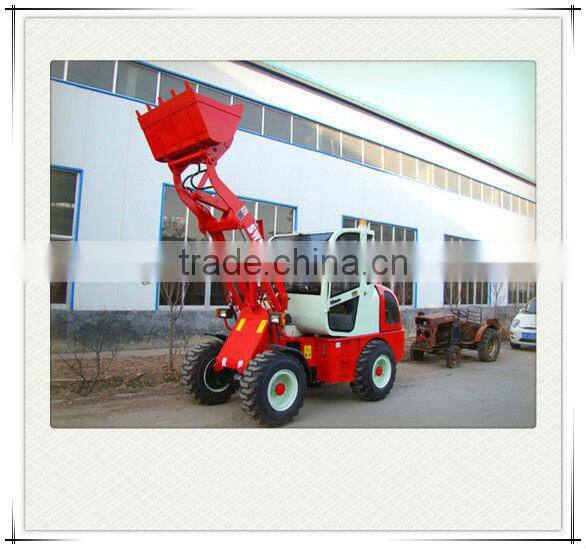

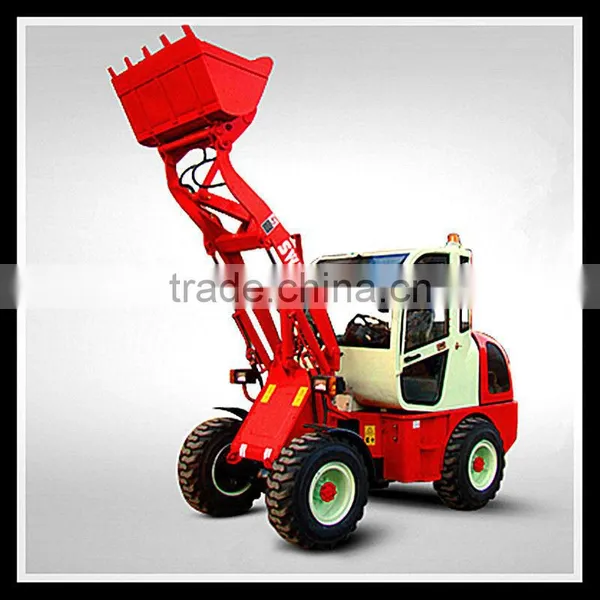

Help CenterWheel Loader SWM610
Related Products
Specifications
-Hot sale front loader-Manipulation of deft and agile
-Joystick valve pilot control
-Hydraulic machanical transmission
SHANDONG WEILI WORLD MACHINERY CO.,LTD
Features
1. The SWM610 wheel loader uses the Japan Yanma engine that has the advantages of small engine sound, high power, and low oilconsumption.
2. Equipped with the electronically controlled traveling and manipulation system, the wheel loader can greatly reduce the labor intensity.
3. The wheel loader is equipped with an advanced hydraulic system.
4. It has a reliable torque converter, gearbox and drive axle.
5. The wheel loader has a highly reliable brake system.
6.Using the hard structural parts and powerful working device, the wheel loader can strengthen the excavating force.
7. The wheel loader features unique machine design, perfect color matching and high-comfort.
Technical Specifications
Main Technical Parameter of SWM610 | |
| Item | Parameter |
| Rated load (kg) | 1000 |
| Bucket capacity (m3) | 0.5 |
| Wheel tread (mm) | 1170 |
| Wheel base (mm) | 1790 |
| Min turning radius (mm) | 4450 |
| Min ground clearance (mm) | 240 |
| Dumping height (mm) | 2300 |
| Corresponding dumping reach (mm) | 1080 |
| Lifting time (s) | 4 |
| Hydraulic cycle time (s) | 9 |
| Maximum excavating force (KN) |
Bucket24.6 Swiming arm13.45 |
| Drive mode | Four are Drive |
| Machine weight (kg) | 2500 |
| Overall dimensions (mm) (Length*width*height) | 4530*1500*2500 |
| Engine model | 4TNV88-BSBKC |
| Rated power of engine (kw) | 25.2 |
| Rated speed of engine (rpm) | 2200 |
CE ,ISO 9001-2008
We are the professional and big manufacturer of the loaders and forklifts for over 17 years .
Our main products are as follows:
Wheel Loaders
800kg wheel loader ZL08A ZL08B
1000kg wheel loader ZL10A ZL10B ZL10F SWM610
1200kg wheel loader ZL12F (best sell model) SWM615 SWM618
1600kg wheel loader ZL16F
2000kg wheel loader SWM620
3500kg wheel loader SWM635
5000kg wheel loader SWM952
Rough Terrain Forklift --Hot Sale
2800kg CPCY28
3500kg CPCY35
5000kg CPCY50
10000kg CPCY100
Diesel Forklift
3000kg and 3500kg CPC30 CPC35
Electric Forklift
1500kg CPD15
It is our great pleasure to receive your specific inquiries .
Please send us inquiries or send email to directly.
Our best wishes to you and your esteemed company . :) O(∩_∩)O
