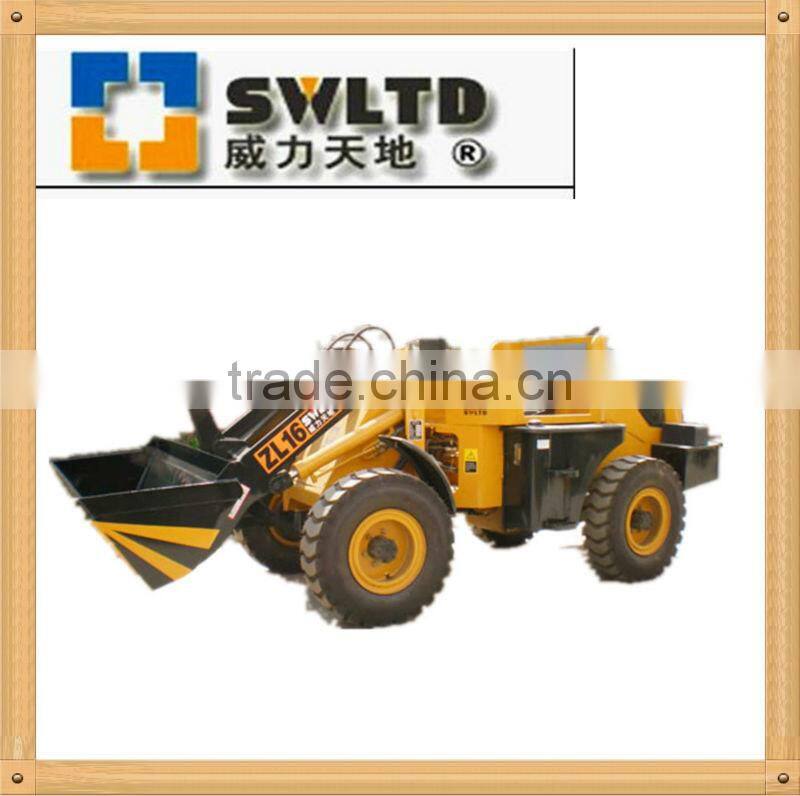

ZL16 China New Construction Tools

SHANDONG WEILI WORLD MACHINERY CO.,LTD

Loader zl16 specifications

1.0 Engine Details

(1) Model Weifang ZH4100K14-3
(2) Engine type: In-line arrangement
(3) Rated Power 45KW(61HP)
Water cooled, four-cycle diesel Engine
(4) Rated Speed 2400 r/min(rpm)
(5) Fuel Consumption ratio in standard
(6) Total displacement 26L working condition 251.6g/kw. H
(7) Lubrication mode pressure splash complex lubrication

2.0 Transmission System

(1) Type Countershaft Power shift
(2) Torque convertor 3-element, single strage
(2) Clutch control oil pressure 1373~1569MPa
(3) Rated input speed 2500 (rpm)
(4) Number of gearshift: Forward ( 2 gearshifts ) Reverse ( 2 gearshifts )

3.0 BUCKET

(1) Bucket Capacity: 0.9 m3
(2) Bucket width: 1910mm
(3) Bucket type: Heavy duty bolt on teeth
(4) Max. Breakout Force: A. Tipper hopper cylinder: 4887, Lifting Cylinder: 2856
(5) Rated Load: 1800kg
(6) Operating Weight: 4800kg

4.0 OVERALL DIMENSION

(1) Overall Length ( Bucket on ground position ): 4952mm
(2) Overall Height
(a) Ground to Cabin Top: 2750mm
(b) Ground to exhaust pipe: It is below from the top of cab
(c) Dumping Height: 2330mm
(3) Overall Width: 1910mm

5.0 OPERATING SPECIFICATIONS

(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4500mm
(3) Driving System: Fluid converter

6.0 Brake System

(1) Service Brake: Hydraulic disc brake on four wheels
(2) Parking Brake: Flexible-shaft external-beam stroke brake

7.0 Wheelbase: 2150mm
8.0 Track: 1440mm
9.0 Tyre type: 16/70 20 Air pressure: Front 0.22Mpa rear: 0.18Mpa
