Home > Products > ZL16 Series Wheel Loader with CE > 4 in 1 Bucket Backhoe Loader ZL16F

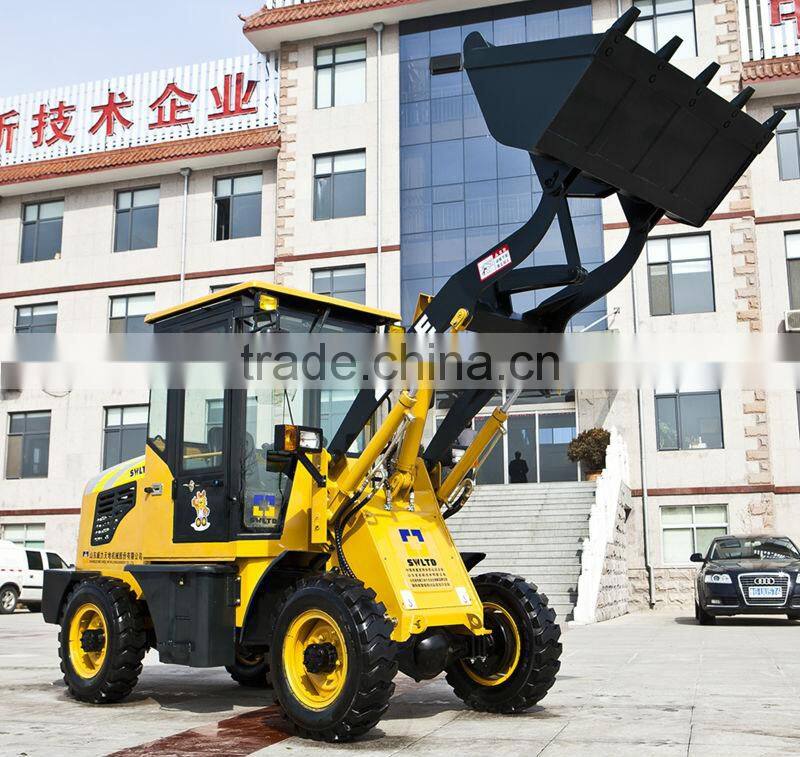

4 in 1 Bucket Backhoe Loader ZL16F
- Qingdao China
- T/T Money Gram
You May Like
Product Details
| Condition | New | Brand Name | SWLTD | |
| Model Number | ZL16 | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 5630*2100*2850 | Rated Load | 1600KG | |
| Certification | CE BV EPA ISO | Warranty | 1 year or 2000 hours | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1)CE ISO2)Loading shovel
3)Engine:Xinchai,Changchai,Weichai
4)Joystick valve


ZL16 wheel loader is used for tunnel-type mining operations.
Features
1. The wheel loader uses a hydro-mechanical transmission which can make full use of engine power, and can have an automatic variable transmission according to the external resistance. It avoids power failure of the engine due to the suddenly increased external load. The wheel loader can absorb and eliminate the vibration and impact of external load on engine. It protects the drive system and engine, increases the service life, and facilitates the operation and achieves higher economical and production efficiency.
2. The wheel loader uses the central articulated frame and load sensing hydraulic steering gear. The machine can achieve short turning radius and superposition of the front and rear tracks upon turning (this will ensure safe driving). The wheel loader has the advantages of easy operation on narrow sites, flexible operation, safety, convenient maintenance and so on.
3. The wheel loader uses four-wheel drive, low-pressure wide base off-road tires and an oscillating rear axle, so it has sound off-road performance, good trafficability and larger traction.
4. The wheel loader is equipped with a single-pipe type hydraulic four-wheel brake.
5. The wheel loader has a fully enclosed cab and the seats have the functions of vibration reduction and easyadjustment. The wheel loader offers the driver a comfortable drive and wide view.
Technical Specifications
| Main Technical Parameter of ZL16 | ||
| Item | Performance Parameters | Note |
| Rated load (kg) | 1600 | |
| Bucket capacity (m3) | 0.8 | |
| Wheel tread (mm) | 1440 | |
| Wheel base (mm) | 2150 | |
| Min turning radius (mm) | 4640 | |
| Min ground clearance (mm) | 310 | |
| Dumping height (mm) | 2405 | |
| Corresponding dumping reach (mm) | 855 | |
| Lifting time (s) | 3.7 | |
| Hydraulic cycle time (s) | 7.7 | |
| Maximum excavating force (KN) | 48.9 | |
| Drive mode | Four-wheel drive | |
| Machine weight (kg) | 4800 | |
| Overall dimensions (mm) (Length*width*height) | 4750*1700*1830 | |
| Engine model | Weichai ZH4100K14-3 | |
| Rated power of engine (kw) | 45 | |
| Rated speed of engine (rpm) | 2400 | |
| Max climbing capacity (°) | 35 | |
Weili World is a major manufacturer of wheel loaders, based in China. We offer various typ
echnical Specifications
Application
The ZL16F wheel loader is used for loading or transporting sands, coal residue, sandstone and so on for road construction, environmental sanitation, small and medium-sized civil engineering, or in the station, warehouses and other places. The wheel loader can be combined with auto trucks of 3-5tons to load and unload goods, and can conduct bulldozing, digging, hoisting and other operations.
WeLvo is a major manufacturer of wheel loader, based in China. We offer various types of products such as wheel loader, loader pitchfork, internal combustion forklift trucks and so on. Our products are high quality and competitively priced. We can complete the full chain of manufacturing rim, wheel loader parts, etc. right here in China. Our lower manufacturing cost can save your purchasing cost. A more detailed description of our product is shown on the page.
Certification
Contact Us
- Shandong Weili World Machinery Co., Ltd.
- Contact nameJeff Jiang Chat Now
- Phone86-536-3815576
- AddressSouth Of Xiaojiandian Village, Mihe Town, No. 11117, Nanhuan Road, Qingzhou, Weifang, Shandong, China
