Help CenterBest Wheelloaders,Europe Three Standard
Related Products
Specifications
1. Rated load:1000Kg2. Bucket capcity:0.5m3
3.Hydrolick pilot control
4.CE Certification
Features

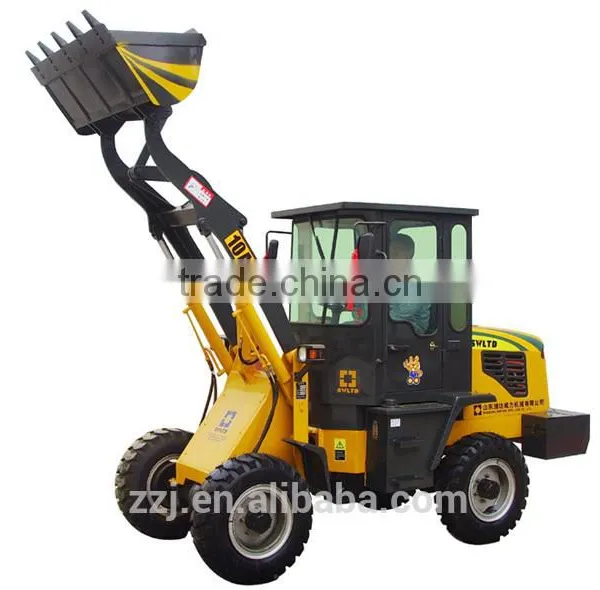

1. The SWM610 wheel loader uses the Japan Yanma engine that has the advantages of small engine sound, high power, and low oilconsumption.
2. Equipped with the electronically controlled traveling and manipulation system, the wheel loader can greatly reduce the labor intensity.
3. The wheel loader is equipped with an advanced hydraulic system.
4. It has a reliable torque converter, gearbox and drive axle.
5. The wheel loader has a highly reliable brake system.
6.Using the hard structural parts and powerful working device, the wheel loader can strengthen the excavating force.
7. The wheel loader features unique machine design, perfect color matching and high-comfort.
Technical Specifications
Main Technical Parameter of ZL10A | ||
Item |
Parameter |
Note |
Rated load (kg) |
1000 |
|
Bucket capacity (m3) |
0.5 |
|
Wheel tread (mm) |
1170 |
|
Wheel base (mm) |
1790 |
|
Min turning radius (mm) |
4450 |
|
Min ground clearance (mm) |
240 |
|
Dumping height (mm) |
2300 |
|
Corresponding dumping reach (mm) |
1080 |
|
Lifting time (s) |
4 |
|
Hydraulic cycle time (s) |
9 |
|
Maximum excavating force (KN) |
Bucket 24.6 Swing arm 13.45 |
|
Drive mode |
Four-wheel drive |
|
Machine weight (kg) |
2500 |
|
Overall dimensions (mm) (Length*width*height) |
4530*1500*2500 |
|
Engine model |
4TNV88-BSBKC |
|
Rated power of engine (kw) |
25.2 |
|
Rated speed of engine (rpm) |
2200 |
|
Weili World is a major manufacturer of wheel loader, based in China. We offer various types of products such as wheel loaders, internal combustion forklift trucks, wheel loader parts and so on. Our products are high quality and competitively priced. We can complete the full chain of manufacturing loader pitchforks, rims, etc. right here in China. Our lower manufacturing cost can save your purchasing cost. A more detailed description of our product is shown on the page.
