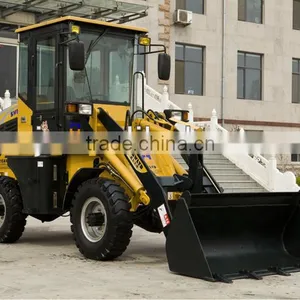

Help CenterZL10B,0.5m3 Wheel Loader Bucket
Related Products
Specifications
wheel loader bucket1. Rated load:1000Kg
2. Bucket capcity:0.5m3
3.Certificate:CE
4.Power:26Kw
1ton Mini Wheel loader, Chinese wheel loader manufacturer , wheel loader bucket
1. Specification
Item |
ZL10B |
Rated load (kg) |
1000 |
Bucked capacity(m3) |
0.5 |
Wheel tread(mm) |
1320 |
Wheel base(mm) |
2020 |
Mini turning radius(mm) |
4200 |
Mini ground clearance (mm) |
220 |
Dumping height (mm) |
2450 |
Corresponding dumping reach (mm) |
1050 |
Lifting time(s) |
4.5 |
Hydraulic cycle time(s) |
9 |
Maximum excavating(KN) |
24 |
|
Drive mode
|
Four-wheel drive |
Machine weight(kg) |
2880 |
Overall dimensions(mm)(length*width*height) |
4930*1600*2570 |
Engine model |
Changchai ZN485Q |
Rated power of engine(KW) |
26 |
Rated speed of engine(RPM) |
2200 |
The advantages to the customer:
· CE Certificate.
· Multi-function, high-efficient and flexible machine.
· Fast and efficient service.
· Coordination of shipments from multiple plants.
· Specialists of the overseas shipping process.
· A more competitive price.
