Specifications

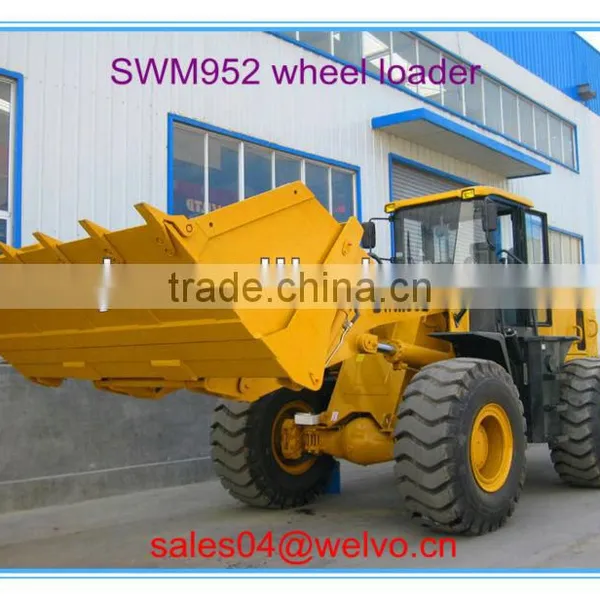

wheel loader SWM952 with ce1. Rated load:5000Kg
2. Bucket capcity:2.5m3
3.Certificate:CE
4.Power:162Kw ,A/C
SHANDONG WEILI WORLD MACHINERY CO.,LTD
Features
1. Heavy Duty Design
(1). The wheel loader uses a high-rigidity frame which is made of thickened steel and characterized by a large frame structure. The machine has the advantages of load-proof,automatic robot welding andanti-torsion.
(2). Equipped with a large-wheelbase underpan, the wheel loader can enhance the driving and operational stability, increase the traction and so on.
(3). With a heavy-duty transmission system featuring high overload resistance coefficient, fatigue resistance and long service life, the wheel loader is especially suitable for continuous high-intensity operation.
(4). Its large-diameter front and rear transmission shaft has the advantages of powerful anti-torsion capability, difficult deformation under heavy load, and stable transmission of kinetic energy.
Technical Specifications
Main Technical Parameter of SWM952 | |
| Item | Parameter |
| Rated load (kg) | 5000 |
| Bucket capacity (m3) | 2.5 |
| Wheel tread (mm) | 2200 |
| Wheel base (mm) | 3310 |
| Min turning radius (mm) | 7150 |
| Min ground clearance (mm) | 395 |
| Dumping height (mm) | 3580 |
| Corresponding dumping reach (mm) | 1292 |
| Lifting time (s) | 5.9 |
| Hydraulic cycle time (s) | 11.4 |
| Maximum excavating force (KN) | 186 |
| Drive mode | Four are Drive |
| Machine weight (kg) | 17150 |
| Overall dimensions (mm) (Length*width*height) | 8365*3220*3390 |
| Engine model | TWD615G-220 |
| Rated power of engine (kw) | 162 |
| Rated speed of engine (rpm) | 2200 |
Factory
B

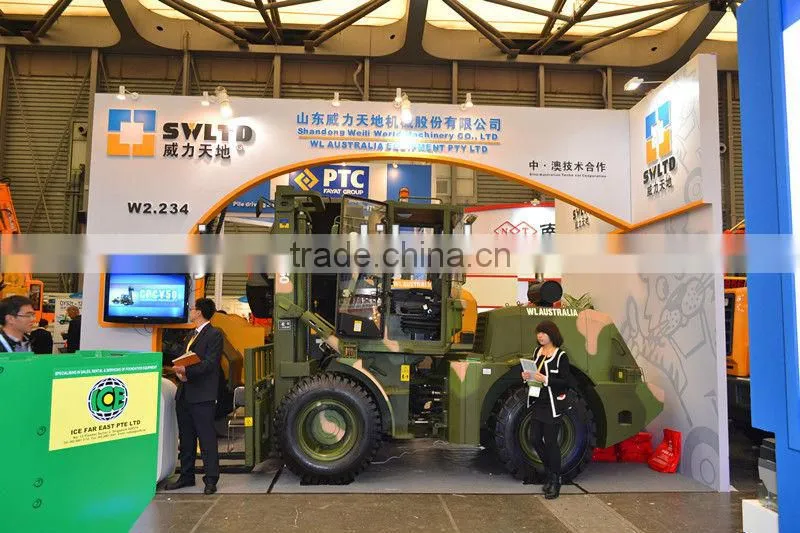

BAUMA CHINA 2012 IN SHANGHAI
Certificartes and Honors of Weili

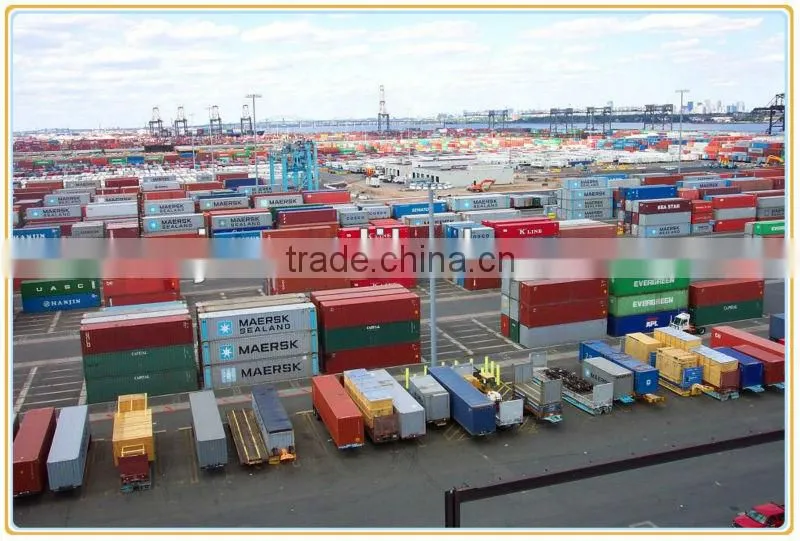

Shipping in Qingdao Port
