Specifications
wheel loader 3 tonCE,with pallet fork
Engine Weichai 5100
Hydraulic pilot control
quick attach,pallet forks
Features
1. The SWM635 wheel loader features firm structure and has the advantages of easy operation and convenient maintenance.
2. The wheel loader is equipped with a bucket leveling device and swinging arm limitation device.
3. The wheel loader has an electronic sound-light alarm system and fuel indicator.
4. The wheel loader possesses high-strength and durable frame and swinging arm.
5. The cab of the wheel loader features comfort, safety, large space and wide vision and has the advantages of dustproof, sound insulation, vibration reduction, and UV protection and so on.
6. Made of the international advanced manufacturing technology, the high quality and molding sofa seat features damping spring.
7. The wheel loader has a firm and rigid bucket structure. All the buckets use the rib plate reinforced structure to prevent bending and distortion.
8. The wheel loader uses a various series of buckets to meet the demands of differentcustomers.
Technical Specifications
Main Technical Parameter of SWM635 | |
| Item | Parameter |
| Rated load (kg) | 3500 |
| Bucket capacity (m3) | 1.7 |
| Wheel tread (mm) | 1800 |
| Wheel base (mm) | 2630 |
| Min turning radius (mm) | 5600 |
| Min ground clearance (mm) | 360 |
| Dumping height (mm) | 3110 |
| Corresponding dumping reach (mm) | 1040 |
| Lifting time (s) | 6 |
| Hydraulic cycle time (s) | 11 |
| Maximum excavating force (KN) | 120.6 |
| Drive mode | Four are Drive |
| Machine weight (kg) | 9940 |
| Overall dimensions (mm) (Length*width*height) | 7120*2400*2200 |
| Engine model | GA6110/125G5-DG10 |
| Rated power of engine (kw) | 92 |
| Rated speed of engine (rpm) | 2200 |

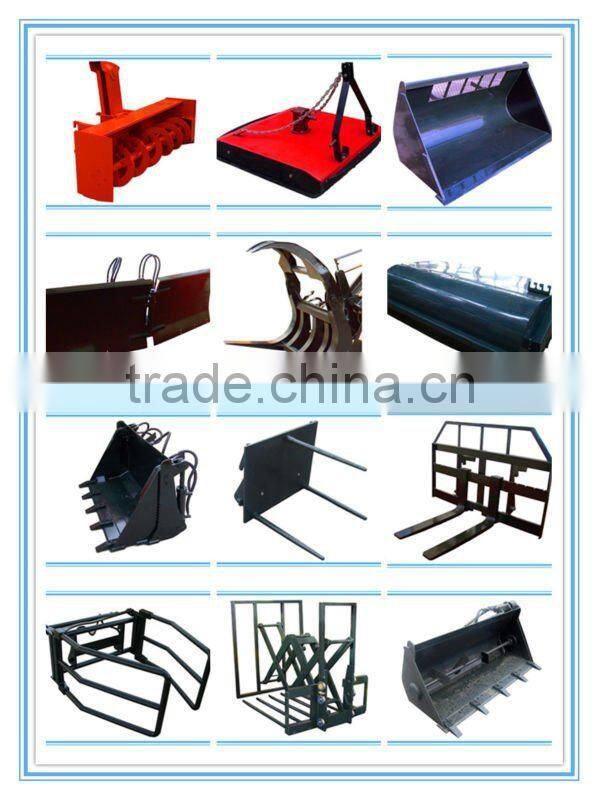

The SWM635 wheel loader can fit alll kinds of quick attach ,working devices as follows:
