A6110 ENGINE OF 92KW5300KG OF LIFT CAPACITY, 1.7-2.4CBM OF BUKET CAPACITY
TORQUE CONVERTER,
JOYSTICK,QUICK HITCH
SHANDONG WEILI WORLD MACHINERY CO.,LTD
Tel:+86 186 6398 9591 Our Mean products are ZL12F & ZL10F, ZL16F, SWM635, SWM952 (24 hours Cellphone Service)
Welcome to enquire the products from WEILI. We will supply you with quality products at competitive price and after-sales services. We have several to meet your job demands.
|
Model |

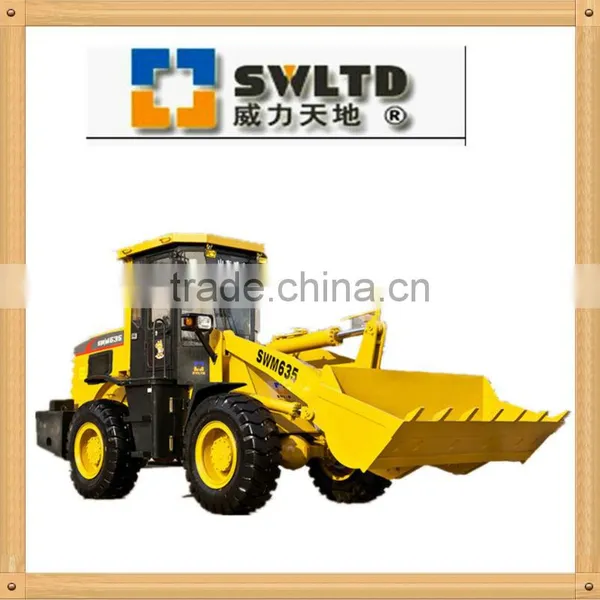

SWM635 WHEEL LOADER |
|
Engine |
Model: |
Xichai CA6110/125G-DG10 |
Engine type: |
In-line arrangement, water-cooled, four-cylinder diesel Engine |
|
Rated Power: |
92KW (125HP) |
|
Rated Speed: |
2200 R/MIN (RPM) |
|
Fuel consumption |
Rated in standard working condition: 251.6g/kw.h |
|
Transmission system |
Type: Countershaft Power shift |
|
Shift gear control oil pressure: 1373 ~1569MPa | ||
Rated input speed: 2200 (rpm) | ||
Bucket |
Bucket Capacity: |
1.7 m3 |
Bucket width: |
1910mm |
|
Bucket type: |
Heavy-duty bolt on teeth |
|
Max. Breakout Force: |
120.6KN |
|
Rated Load: |
3500kg |
|
Operating Weight: |
9940kg |
|
Overall Dimensions |
Overall Length: |
(Bucket on ground position): 7120mm |
Overall Height: |
3120mm |
|
Ground to Cab Top: |
2880mm |
|
Ground to exhaust pipe: |
It is below from the top of cabin |
|
Dumping Height: |
3110mm |
|
Overall Width: |
2400mm |
|
Operating Specifications |
Drive Means: |
Four-wheel drive |
Steering System |
Articulated Frame with hydraulic power steering |
|
Min Turning Radius: |
5600mm |
|
Driving System: |
Hydraulic converter |
|
Brake System |
Service Brake: |
Four Wheel Hydraulic disk brake |
Parking Brake: |
Hand operated |
|
Tyre |
Model: |
17.5-25 |
Width: |
41cm |
|
Diameter: |
128cm |
|
Wheelbase |
2630mm |
|
Track |
1800mm |
|
wheel loader for sale from 0.8T to 5T, Including
1.Model:
ZL08A. ZL08B, ZL10A, ZL10B, ZL10E, ZL10F, ZL12F, SWM610, SWM612, SWM615, SWM618, SWM620, SWM635, SWM952
2.Drive model:
ZL08A,ZL08B : 2WD,
Others : 4WD
3. Transmission Type:
ZL08A,ZL08B,ZL10E,ZL10A,ZL10B : Mechanical transmission
Others:Hydraulic transimission
4.Engine type:
Chinese famouse brand or Cummins or Yammar orginal engine.
5.Optional devices such as the Air-conditioning,wider tyre,or high hitch ,
Different implement :Snow bucket,log grapple, Fork ,Road sweeper,Screening bucket,pitchfork,and so on,
6.We can process all types of multi-devices according to customers'requirement.
More details ,Please Email me or call us directly.Wish we can give you our professional guidance.
