Home > Products > CPD15-FR Electric Forklift with CE > CE mark(CPD15) 1.5ton small battery forklift

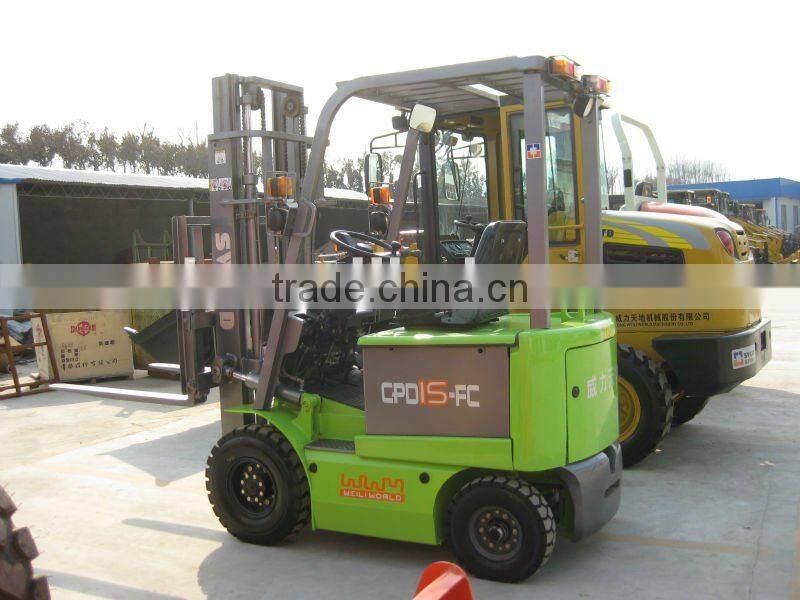

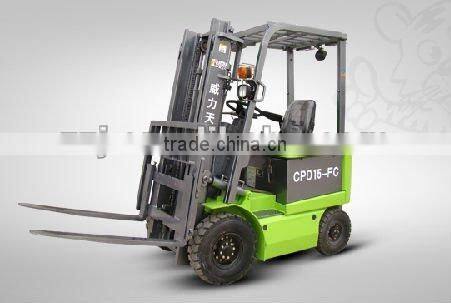

CE mark(CPD15) 1.5ton small battery forklift
- 3000 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | SWLTD |
Model Number: | CPD15 | Type: | Powered Pallet Truck | Power Souce: | AC Motor |
Rated Loading Capacity: | 1500KG | Max. Lifting Height: | 3000mm | Min. Lifting Height: | 100mm |
Fork Length: | 1090mm | Fork Width: | 100mm | Overall Dimensions: | 3090*1150*3900(mm) |
Certification: | CE |
Product Description
Specifications
small battery forklift1.Rated:1.5TONS
2.Certificate:CE
3.Easy operation.
4.Save engery
mini electric forklift, price is relatively low and save engery, battery operated forklift , small battery forklift
Specification
CPCD15 main technical parameter | |||||
Serial number | Project | Parameter | Note | ||
1 | (KG) Rated load | 1500 | |||
2 | (Mm) Load center | 500 | |||
3 | (Mm) Ascent | 3000 | |||
4 | (Mm) The freedom lifts the altitude | 100 | |||
5 | Wheel base(mm) | 1235 | |||
6 | Front wheel base | 900 | |||
7 | Rear wheel base | 900 | |||
8 | (/°)Gate incline front/after | 6/12 | |||
9 | (mm/s)Lifts most greatly the intensity(full load) | 260 | |||
10 | (mm/s)Lifts most greatly the intensity(empty load) | 400 | |||
11 | (km/h) Running rate | Full load | 9 | ||
12 | Empty load | 10 | |||
13 | (%)Max climbing power (full load) | 20 | |||
14 | (mm/s) Max dec lind speed(full load) | 480 | |||
15 | (mm/s)Max dec lind speed(empty load) | 500 | |||
16 | (Mm) Min turning radius | 1820 | |||
17 | External dimensions | Mm Length(mm) | 3090 |
| |
Mm Width(mm) | 1150 | ||||
Mm total Height(mm) | 3900 | ||||
18 | (Kg) Dead weight | 3036 | |||
19 | Engine model | XQ-5-4A4 | |||
20 | Battery | 274A |
