Home > Products > CPCY28 Rough Terrain Forklift with CE > forklift ramp CPCY28

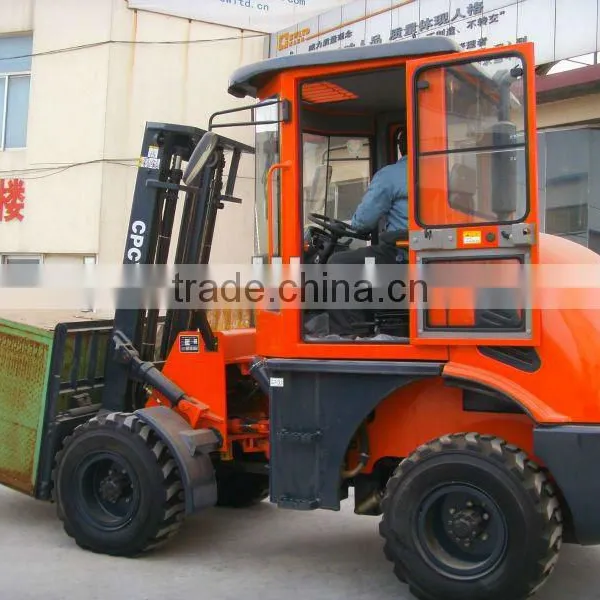

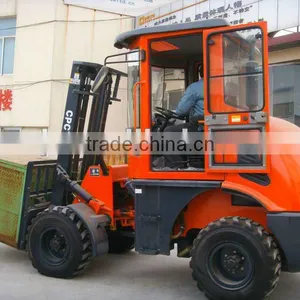

forklift ramp CPCY28
- 3000 Set / Sets per Month
- Qingdao China
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | SWLTD |
Model Number: | CPCY 28 | Type: | Powered Pallet Truck | Power Souce: | Diesel Engine |
Rated Loading Capacity: | 2800 Kg | Max. Lifting Height: | 3700 mm | Min. Lifting Height: | 100 mm |
Fork Length: | 1400 mm | Fork Width: | 45 mm | Overall Dimensions: | 4585*1700*2720(mm) |
Certification: | CE ISO9001 | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1.Manufacture car-frame for SEM CATERPILLAR2.Full hydraulic transmission
3.Small Turning Radius
4.CE Certification;ISO 9001
Features
1. The CPCY28 four drive rough terrain lift truck has perfect ground clearance and special off-road tires.
2. Its front axle is equipped with four-wheel drive with an anti-skating device. The four driverough terrain lift truck is characterized by the compact structure design between engine and gearbox, so it can operate on rough terrain, sand or mud basin.
3. Its front frame has no fork working device or front drive axle and there are no operating devices or rear drive axle on rear frame.
4. The four drive rough terrain lift truck has a steering cylinder between the rear and front frames.
5. Its rear frame has the power devices which are respectively connected to front and rear drive axle.
6. Using four-wheel drive, the four drive rough terrain lift truck can increase its forklift power for effective material loading, unloading and transporting and so on. It has sound traffic ability, larger traction force and so on. Since there is not need for the front drive axle with steering device, the machine can use the same drive axle with the rear drive axle to lower the cost.
Technical Specifications
Main Technical Parameters of CPCY28 | |||
Item | Parameter | Note | |
Rated load (KG) | 2800 | ||
Load center (mm) | 565 | ||
Lifting height (mm) | 3000 | ||
Free lift height (mm) | 150 | ||
Mast tilt angle front/rear (°) | 6/12 | ||
Max lifting speed (full load) (mm/s) | 372 | ||
Running speed (km/h) | Advance:Ⅰ gear/II gear | 8/16 | |
Backlash:Ⅰ gear/II gear | 8/16 | ||
Max climbing gradient (%) (full load) | 50 | ||
Max traction (Kgf) | 2587 | ||
Max steering angle (°) | ±35 | ||
Swinging angle of rear axle (°) | ±12 | ||
Min turning radius (mm) | 4500 | ||
External dimensions | Length (mm) | 4585 | Tooth |
Width (mm) | 1700 | ||
Height (mm) | 2720 | ||
Min ground clearance (mm) | 260 | ||
Dead weight (Kg) | 3268 |
Weili World is a major manufacturer of four drive rough terrain lift truck, based in China. We offer various types of products such as four drive rough terrain lift truck, wheel loader bucket, wheel loader and so on. Our products are high quality and competitively priced. We can complete the full chain of manufacturing loader oil drum clamp, rim, etc. right here in China. Our lower manufacturing cost can save your purchasing cost. A more detailed description of our product is shown on the page.
Contact Us
- Shandong Weili World Machinery Co., Ltd.
- Contact nameJeff Jiang
- Phone86-536-3815576
- AddressSouth Of Xiaojiandian Village, Mihe Town, No. 11117, Nanhuan Road, Qingzhou
