Forklift Cpcy 50
- Qingdao China
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | SWLTD | Model Number | CPCY 50 | |
| Type | Powered Pallet Truck | Power Souce | Diesel Engine | |
| Rated Loading Capacity | 5000 Kg | Max. Lifting Height | 4000 mm | |
| Min. Lifting Height | 210 mm | Fork Length | 1300 mm | |
| Fork Width | 150 mm | Overall Dimensions | 5730*1905*1880(mm) | |
| Certification | CE ISO9001:2008 | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.Manufacture Car-Frame for SEM CATERPILLAR2.Electronic control gear box
3.FAW or Cummins engine
4.CE ; ISO 9001:2008

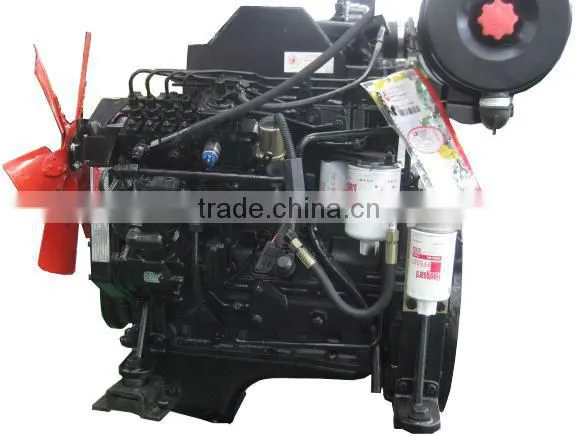

n Dongfeng CUMMINS 4BTA 3.9-C100
l 100 horse power engine

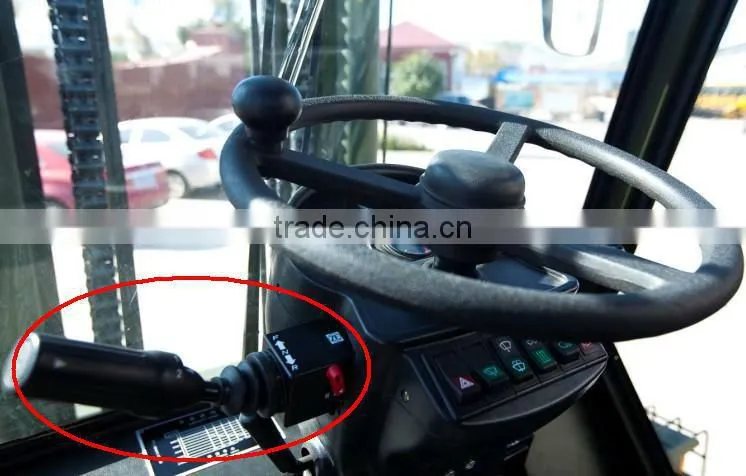

l ZF brand electric operation stick
Grammer Brand seat in cabin
l Breathable
l Suitable for long time driving
l Multiaspect adjustment
Easy repair

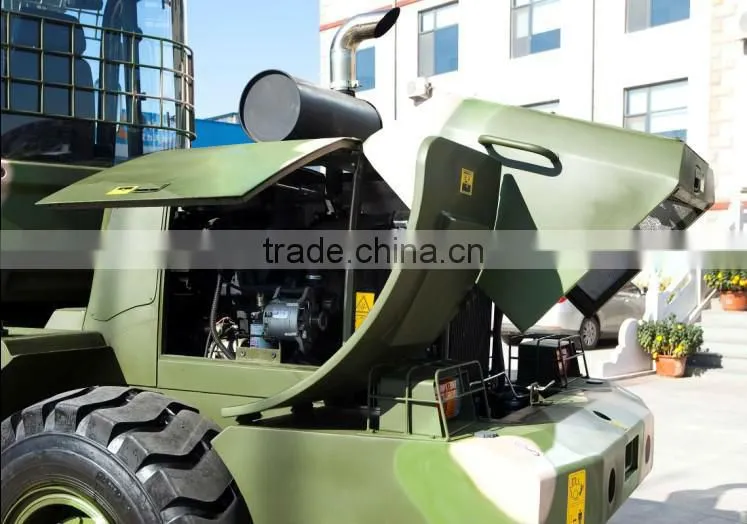

l Engine hood can be open 70%
l Easy change the air filter
l Easy to repair all pumps
Parameter
Overview | Model of driving power | Diesel | ||
Rated load | 5000kg | |||
Load center distance | 500mm | |||
Lifting height | 3000mm / 4500mm | |||
Performance |
Speed | Running speed (no load) | 22Km/h | |
Lifting speed(full load) | 300 mm/s | |||
Max. grade ability | 20° | |||
Dead weight | 9500kg | |||
Tires | Tires | Front wheel | 11.00-20 | |
Rear wheel | 16/70-20 | |||
Tread | Front wheel | 1575mm | ||
Rear wheel | 1545mm | |||
Wheelbase | 2185mm | |||
Min ground clearance | 285mm | |||
Driving power and transmission | Battery | Voltage | 24V | |
Engine | Model | CUMMINS 4BTA3.9-C100 | ||
Place of Origin | Xiangyang Hubei | |||
Output power | 74 KW | |||
Rated torque | 410 | |||
Number of cylinders | 4 | |||
Cylinder size X trip | n.a | |||
Displacement | n.a | |||
Fuel tank capacity | 40L | |||
Transmission | Gear(front and rear) | 2/2 | ||
Work pressure | 16 Mpa | |||
Weili World is a major manufacturer of four drive rough terrain lift truck, based in China. We offer various types of products such as four drive rough terrain lift truck, wheel loader bucket, wheel loader and so on. Our products are high quality and competitively priced. We can complete the full chain of manufacturing loader oil drum clamp, rim, etc. right here in China. Our lower manufacturing cost can save your purchasing cost. A more detailed description of our product is shown on the page.
