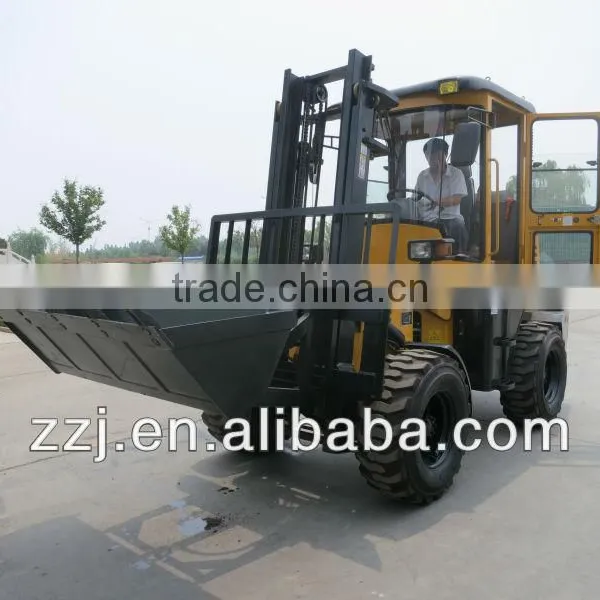

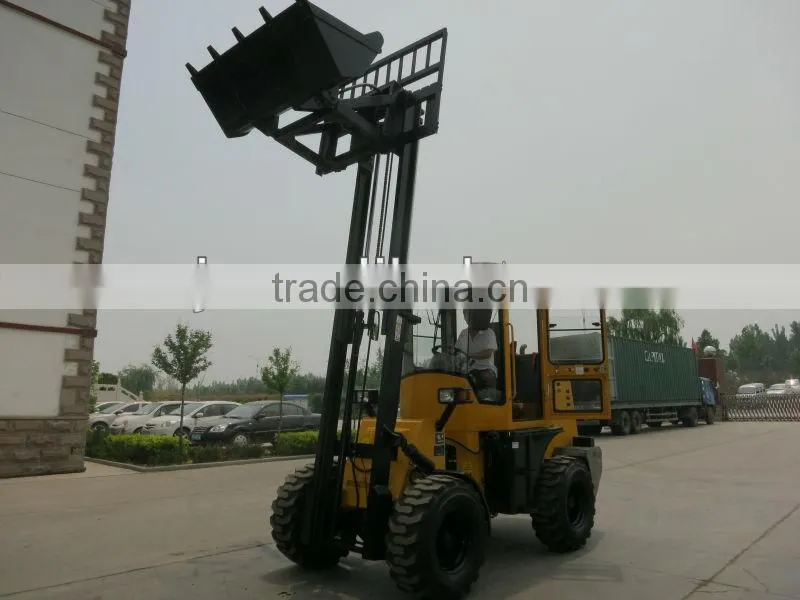

Rough Terrain Forklift With BUCKET With CE

Name: Rough Terrain Forklift With BUCKET With CE
Brand: SWLTD
SKU: 140828296
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

SWLTD

Shandong Weili World Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name SWLTD

Model Number CPCY28

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 2800

Max. Lifting Height 3700mm, 4500mm

Min. Lifting Height 2175mm

Fork Length 1070mm, 1800mm,2400mm

Fork Width 12.5MM

Overall Dimensions 4585*1730*2720

Certification CE

After-sales Service Provided Overseas service center available

Model		CPCY28 Forklift(with CE)
Engine	Model	CUMMINS B 3.3( EuroIII emissions standard)
	Rated output(kw)	45KW
	Type	In line,vertical,water cooled,four-stroke
	Number of cylinders	4
	Cylinder bore	98
	Cylinder sroke	105
	Rated speed(r/min)	2200
	Method of starting	Electric
	Total displacement (L)	3.168
Rated load(kg)		2800
Load center distance(mm)		565
Lift height(mm)		3700
The freedom lifts the altitude(mm)		150
Max lifts the speed(full load)(mm/s)		372
Gate inclination angle (F/R)(°)		6/12
Moving velocity (idling)(km/h)		19
Max climbing power(%)		50
Overal dimensions(LWH)(mm)		458517302720
Dead weight(kg)		3268
Min ground clearance(mm)		260
Wheel distance(mm)		1320
Axle-base(mm)		2040
Forks the tooth size(LWH)(mm)		107013045
Max traction(kgf)		2587
Max steering angle(°)		±35°
The after brige swing angle(°)		±12°
Min turning radius(mm)		4500
Drive Mean		Four Wheel drive
Detailed Info Equipped with European III emissions engine, Air-conditioning(warm and cold), Triple valve pilot control system, 30cm wider tubeless tires(12-16.5 or 14-17.5 tires), Side shifter, Quick change devices, Adjustable steering wheel, adjustable suspension seat, A wide range of accessories available
