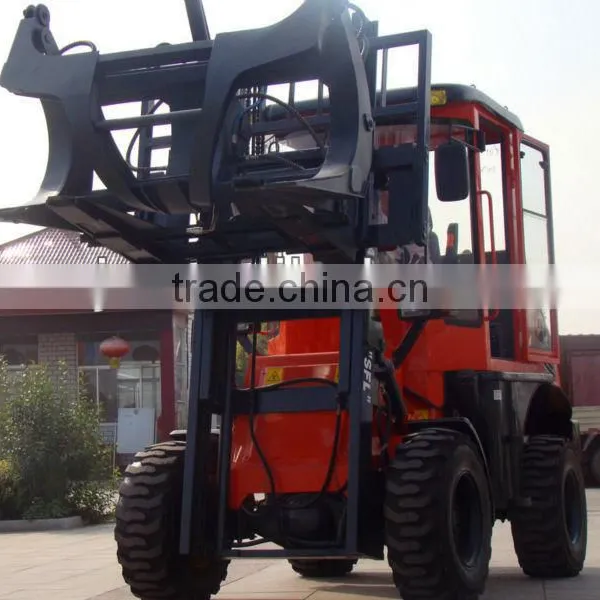

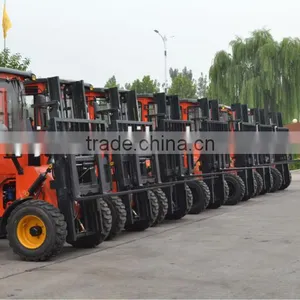

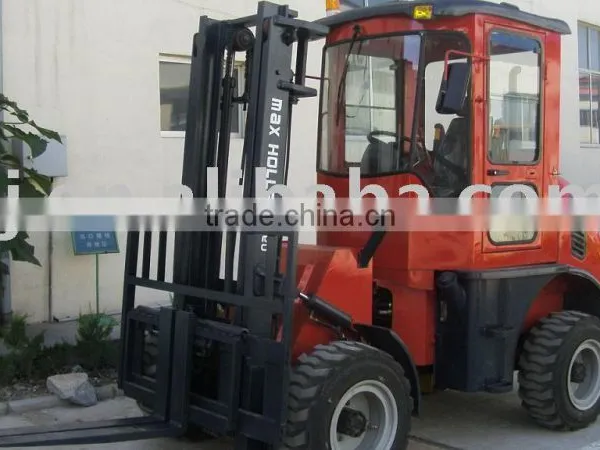

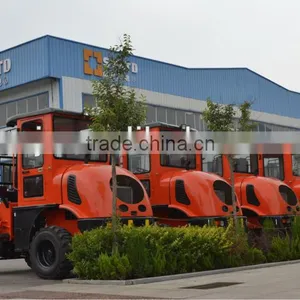

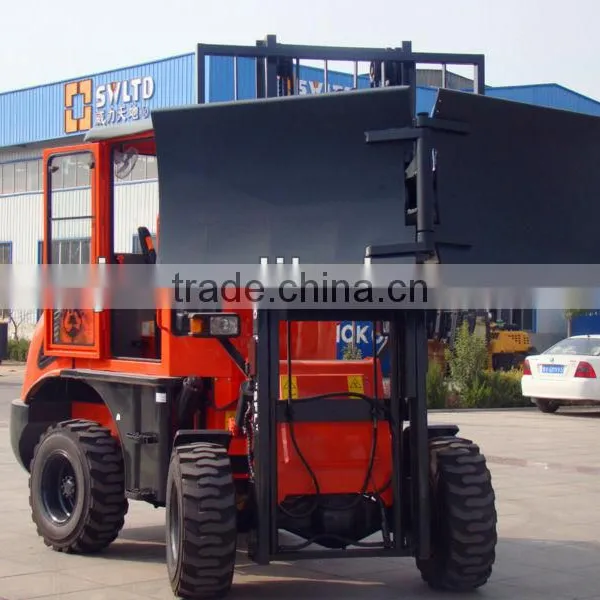

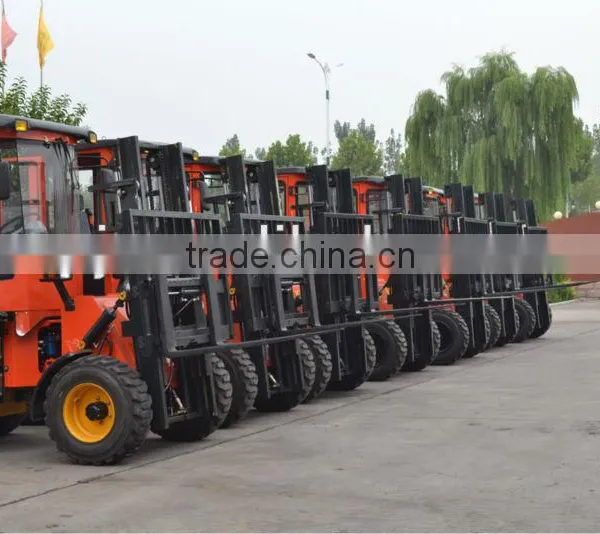

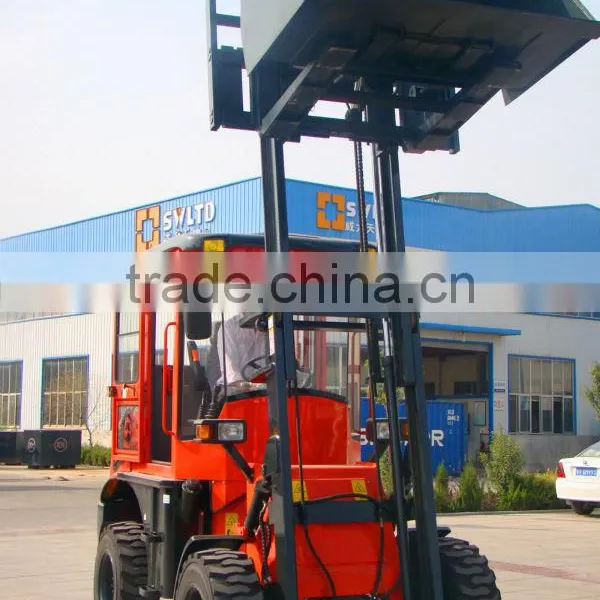

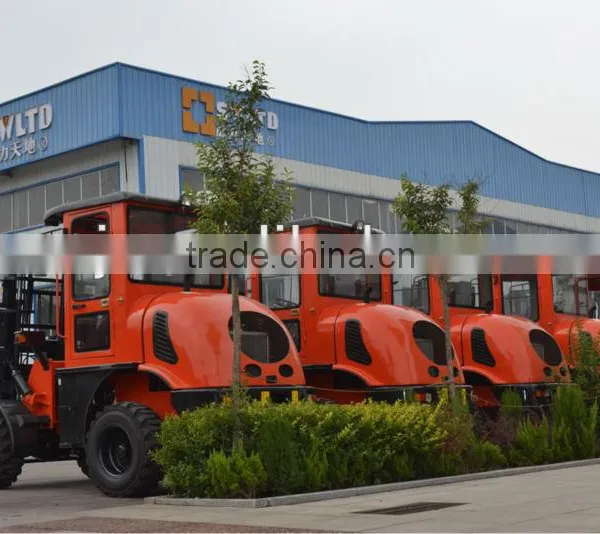

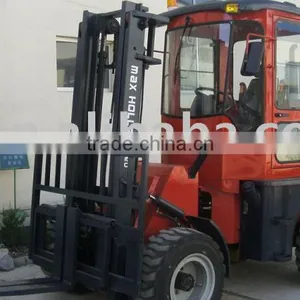

Help Center4X4WD CPCY28 Rough Terrain Forklifts(with CE,Air-conditioning, Triple Valve Pilot Control,EuroIII Emissions Engine,side Shifter)
Related Products
-
off Road Forklift;cross-country Forklift;4X4 Forklift CPCY28,NegotiableMOQ: 1 Set -
2.8t CPCY28 Rough Terrain ForkliftNegotiableMOQ: 1 Set
-
4X4 Forklift CPCY28 With ce for SaleUS$ 10,000 - 15,000MOQ: 1 Set
-
Rough Terrain Forklift CPCY28 With ce for SaleUS$ 10,000 - 15,000MOQ: 1 Set
-
off Road Forklift CPCY28 With ceUS$ 10,000 - 15,000MOQ: 1 Set
Model |
CPCY28 Forklift(with CE) |
|
|
Engine |
Model |
Xinchai C490BPG or Xinchai A498BT( EuroIII emissions) |
Rated output(kw) |
36.8KW |
|
Type |
In line,vertical,water cooled,four-stroke |
|
Number of cylinders |
4 |
|
Cylinder bore |
98 |
|
Cylinder sroke |
105 |
|
Rated speed(r/min) |
2200 |
|
Method of staring |
Electric |
|
Total displacement (L) |
3.168 |
|
Rated load(kg) |
2800 |
|
Load center distance(mm) |
565 |
|
Lift height(mm) |
3700 |
|
The freedom lifts the altitude(mm) |
150 |
|
Max lifts the speed(full load)(mm/s) |
372 |
|
Gate inclination angle (F/R)(°) |
6/12 |
|
Moving velocity (idling)(km/h) |
19 |
|
Max climbing power(%) |
50 |
|
Overal dimensions(L*W*H)(mm) |
4585*1730*2720 |
|
Dead weight(kg) |
3268 |
|
Min ground clearance(mm) |
260 |
|
Wheel distance(mm) |
1320 |
|
Axle-base(mm) |
2040 |
|
Forks the tooth size(L*W*H)(mm) |
1070*130*45 |
|
Max traction(kgf) |
2587 |
|
Max steering angle(°) |
±35° |
|
The after brige swing angle(°) |
±12° |
|
Min turning radius(mm) |
4500 |
|
Drive Mean |
Four are drive |
|
|
Detailed configuration European III emissions engine, Air-conditioning and heating, Triple valve pilot control, 30cm wider tubeless tires, Side shifter, Quick change devices, Adjustable steering wheel, Deluxe adjustable seat | ||
