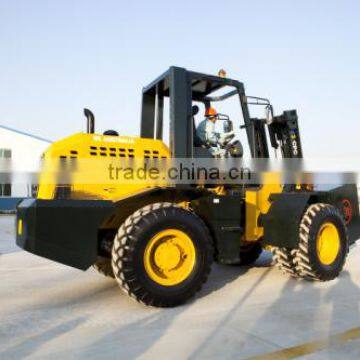

CPCY100 clamp forklift truck
- 1000 Set / Sets per Month
- Qingdao China
- T/T
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | SWLTD |
Model Number: | CPCY100 | Type: | Powered Pallet Truck | Power Souce: | Diesel Engine |
Rated Loading Capacity: | 14500kgs | Max. Lifting Height: | 4500 mm | Min. Lifting Height: | 210 mm |
Fork Length: | 1200-1800 mm | Fork Width: | 150 mm | Overall Dimensions: | 6650*2620*3400 mm |
Certification: | CE | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1.Luxurious cabin2.Air condition
3.3 stage 4.5m mast
4.Optional accessory
Features
Parameter
The main parameters CPCY100 CPCY100
| |||||
No | item |
|
|
| |
1 | Limit load | KG | 10000 | 10000 | |
2 | length | No fork | MM | 5425 | 5425 |
Belt fork | MM | 6650 | 6650 | ||
3 | width | MM | 2620 | 2620 | |
4 | height | Door frame height | MM | 3035 | 3035 |
Height bridge | MM | 3400 | 3400 | ||
When maximum lifting height | MM | 4430 | 5880 | ||
5 | wheelbase | MM | 2745 | 2745 | |
6 | Before hanging distance | MM | 930 | 930 | |
7 | Front wheel tread | MM | 1850 | 1850 | |
8 | Wheel track after | MM | 1805 | 1805 | |
9 | Ground clearance | MM | 390 | 390 | |
10 | Maximum lifting height | MM | 3000 | 4500 | |
11 | The door frame top rake/door frame caster Angle | (°) | 6/12 | 6/12 | |
12 | Standard no load state of the overall quality | KG | 14500 |
| |
13 | Load maximum lifting speed | MM/s | 187 | 187 | |
14 | minimum turning radius | MM | 5500 | 5500 | |
15 | With its maximum speed | KM/H | 24 | 24 | |
16 | Gradeability | % | 20 | 20 | |
17 | Load maximum traction hook | KN | 75.0 | 75.0 | |
18 | Load center distance | MM | 600 | 600 | |
19 | Engine model | ---- | Deutz WP6G125E22 | Deutz WP6G125E22 |
Certification
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our company is the only Importing and Exporting Company invested by our Head Company, Shandong Weili World Machinery Co., Ltd. The factory is located in Qingzhou City, Shandong Province, and it is one big and professional Wheel Loader and Forklift manufacturer.
We have many years experience in exporting the machinery products, with the main products are as construction machinery, mining machinery, agricultural machinery and spare parts for all machineries. And the specific products are Wheel Loader, Forklift, Roller, Excavator, Motor Grader, Dredger, Gold Mining Machines, Environmental Protection Machines, etc.
