HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale

HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale thumbnail-1
HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale thumbnail-2
HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale thumbnail-3
HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale thumbnail-4
HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale thumbnail-5
HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale thumbnail-6
HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale photo-1
HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale photo-2

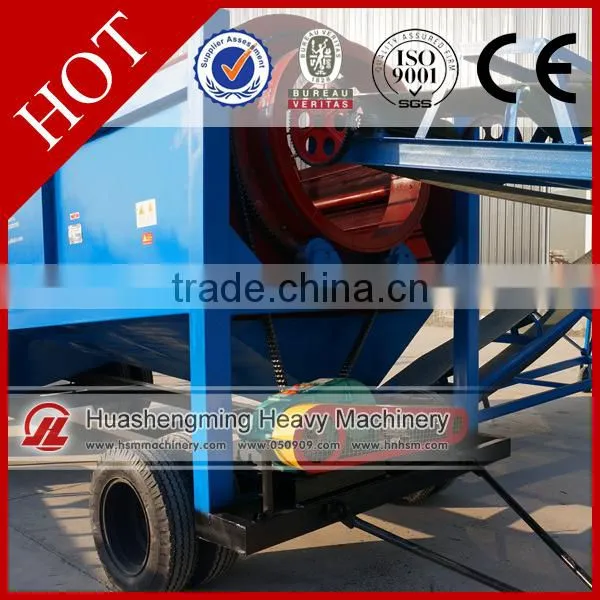

HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale photo-3

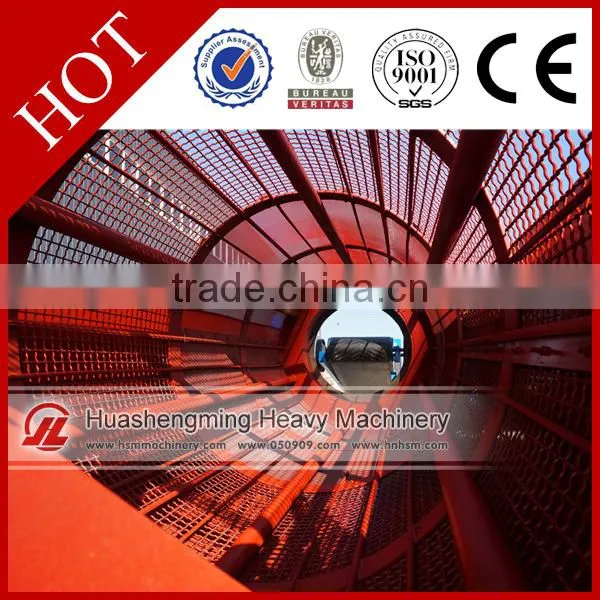

HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale photo-4

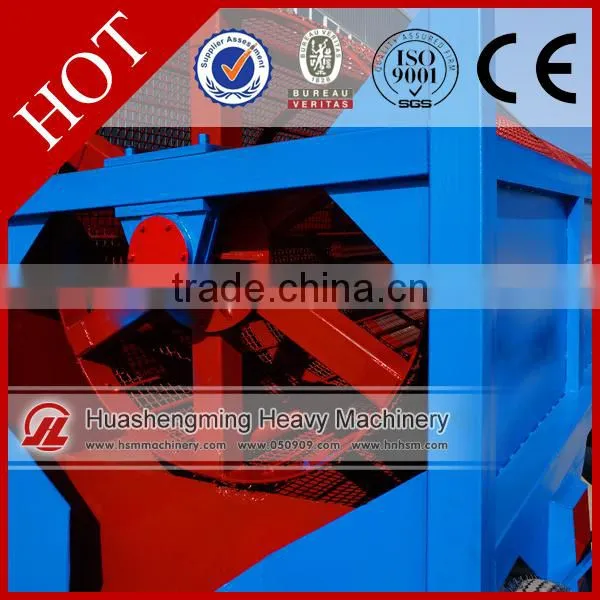

HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale photo-5

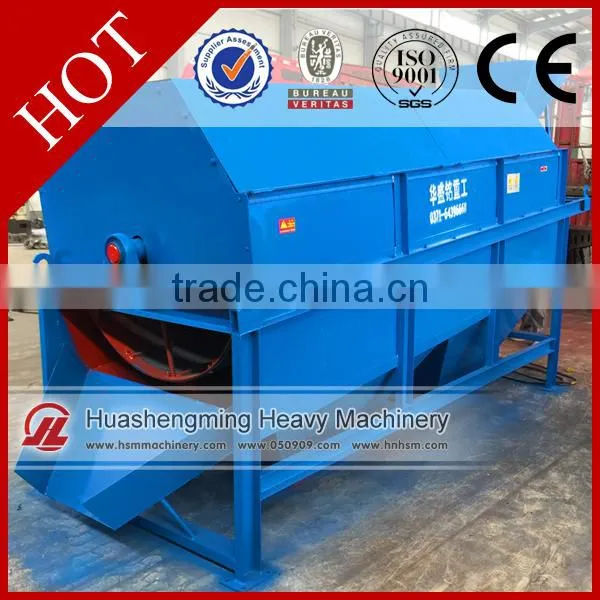

HSM ISO CE Professional Manufacture Trommel Screen Machine For Sale photo-6
US$ 2,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Other, Ore, Stone,sand wood soil compost and etc.
Contact Supplier Request Quote Chat Now
Gongyi City Hua Sheng Ming Heavy Industry Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Circular
Application Other, Ore, Stone,sand wood soil compost and etc.
Place of Origin Henan, China
Brand Name HSM
Model Number GTS1230
Voltage 380V as for customer local
Power(W) 5.5kw
Dimension(L*W*H) Ref.parameter
Weight 2t
Certification ISO,CE
Warranty 2 YEARS, 2 Years
After-sales Service Provided Engineers available to service machinery overseas
Product Description

HSM ISO CE Trommel Screen


Product Application

The trommel screen is used for screening and classifying materials, widely used in metallurgy, mining, chemical, coal, building materials, abrasives, and other industries.

Typical material:

Crushed stone and concrete
Construction and demolition waste

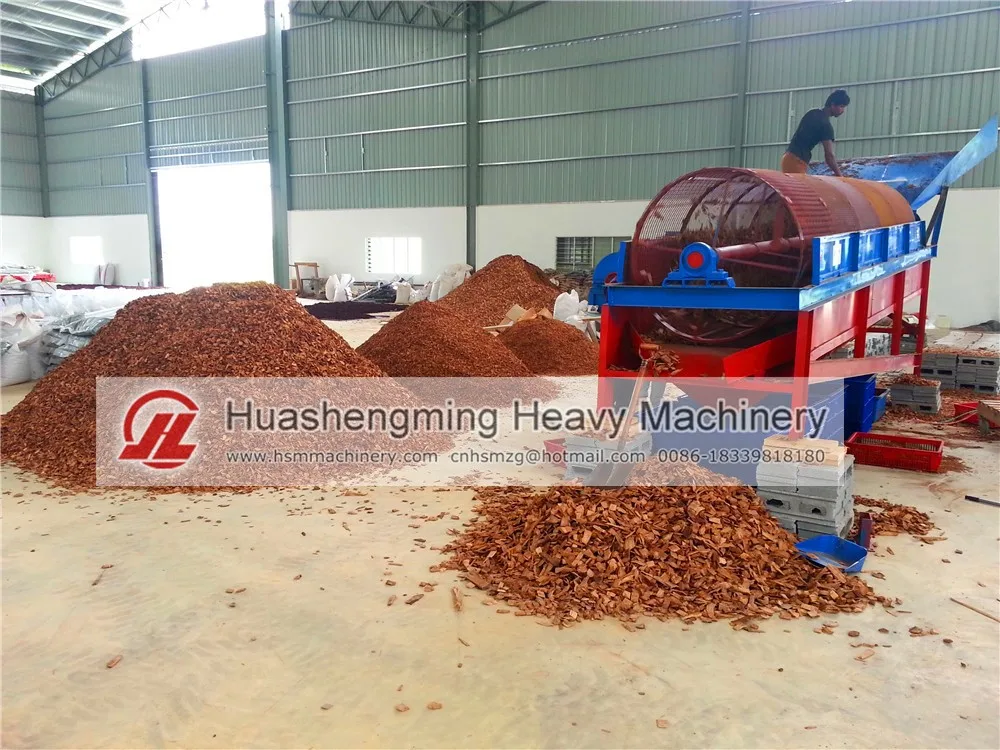

Woodchip
Compost
Hardcore
Skip
Waste
Topsoil
Sand and gravel Peat

Trommel Screen Main Features

1. Include single, double, and muti layer type
2. Strong processing ability
3. Easy maintenance and long life
4. High-efficient and power-saving
5. Simple and various feeding ways
6. non-pollution and low noise

Trommel Screen Working Principle

Material is fed into the trommel and lifted up by the

rotation and aerated as it falls back down. This action is

repeated with each revolution along the length of the

trommel. The finer material passes through the screen

openings while the larger material tumbles towards its

eventual exit at the rear of the trommel.

Trommel Screen Technical Parameter


Model
Drum
Specifications
（m）
Rotation
Speed
（r/min）
Screen
mesh
size （mm）
Max Feeding
Sizes
（mm）
Capacity
（m3/h）
Motor
Power
（kw）
GTS820
Φ0.8X2
17-32
2-20mm
Mesh size* 2.5
8-30
3
GTS830
Φ0.8X3
17-32
2-20mm
Mesh size* 2.5
10-50
3
GTS1030
Φ1X3
17-32
2-20mm
Mesh size* 2.5
12-60
4
GTS1040
Φ1X4
17-32
2-20mm
Mesh size* 2.5
15-80
4
GTS1230
Φ1.2X3
17-32
2-20mm
Mesh size* 2.5
16-100
5.5
GTS1240
Φ1.2X4
17-32
2-20mm
Mesh size* 2.5
18-120
5.5
GTS1250
Φ1.2X5
17-32
2-20mm
Mesh size* 2.5
20-120
5.5
GTS1530
Φ1.5X3
17-32
2-20mm
Mesh size* 2.5
20-140
5.5
GTS1540
Φ1.5X4
17-32
2-20mm
Mesh size* 2.5
22-150
7.5
GTS1550
Φ1.5X5
17-32
2-20mm
Mesh size* 2.5
25-180
11

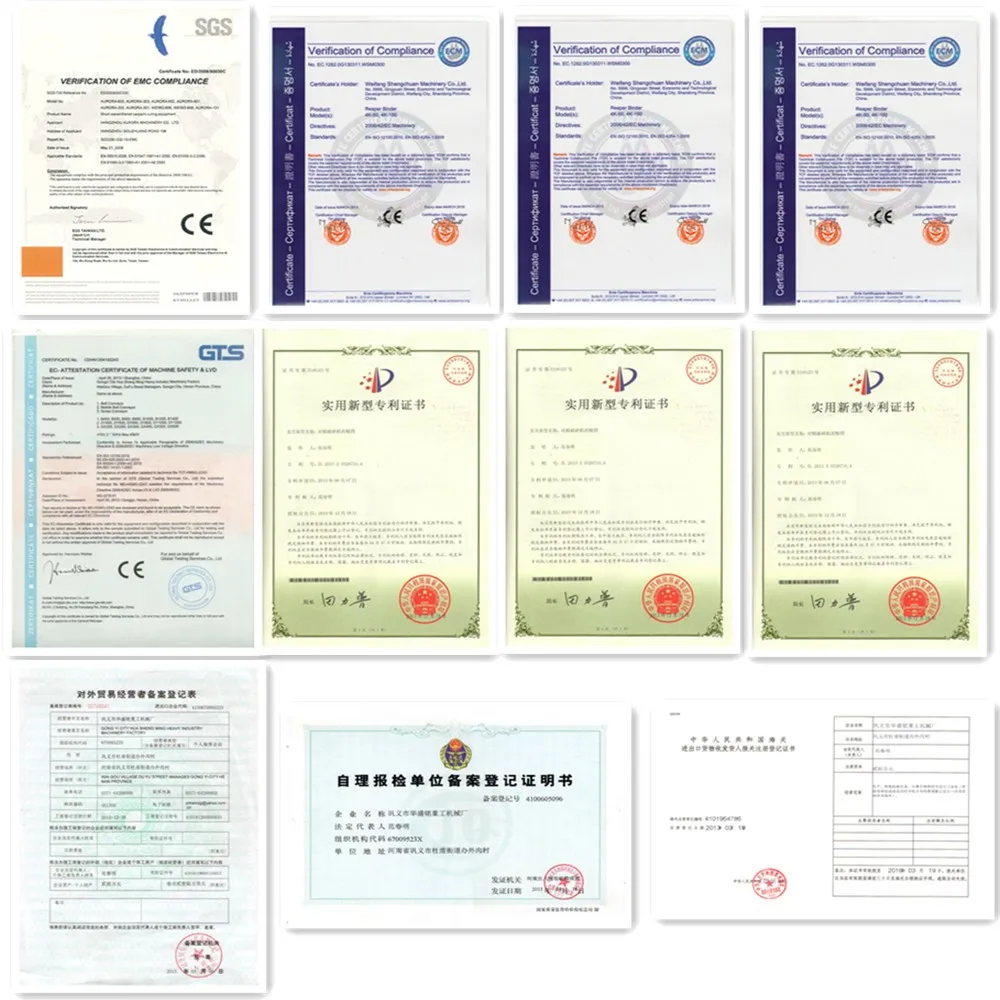

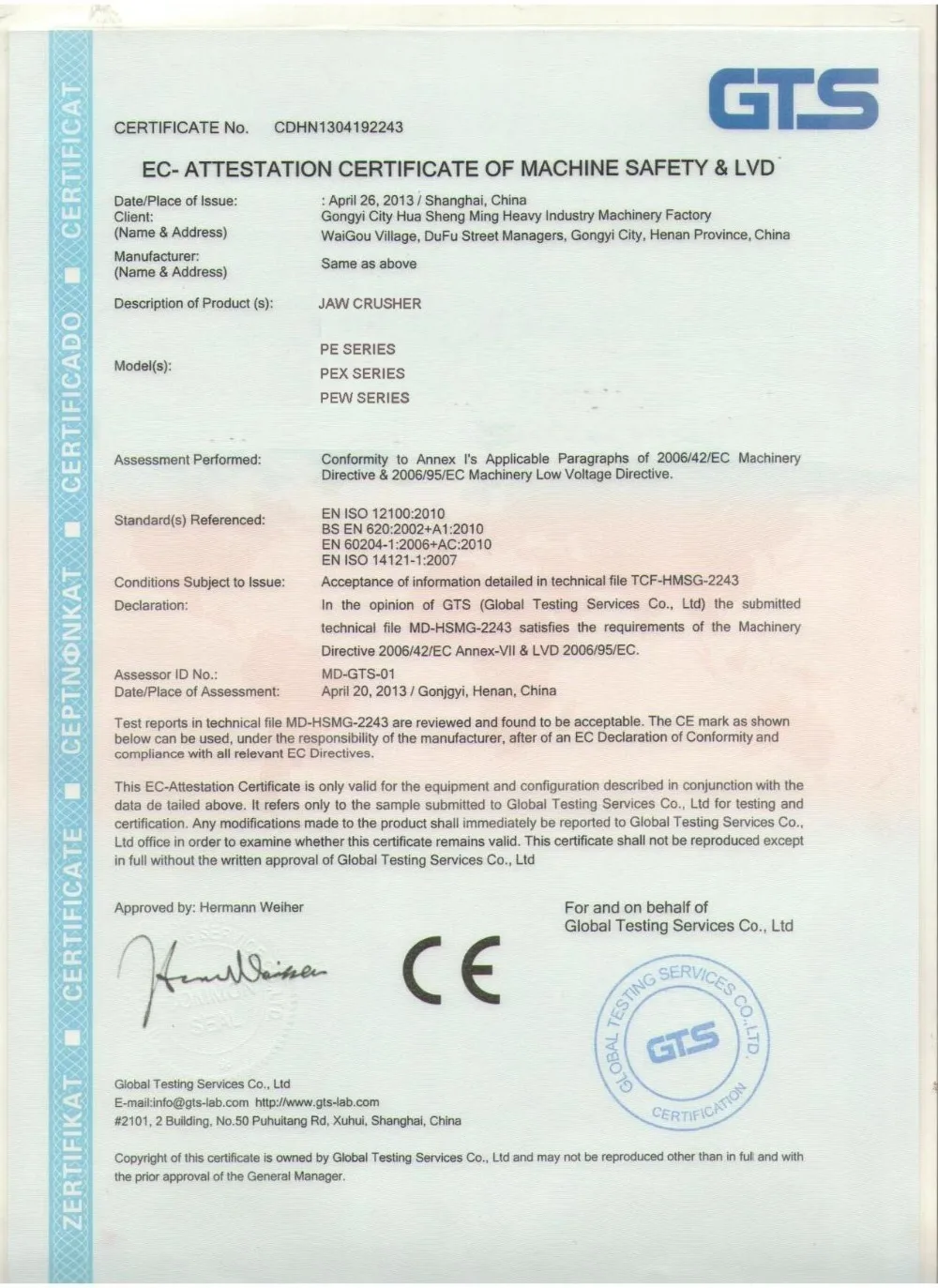

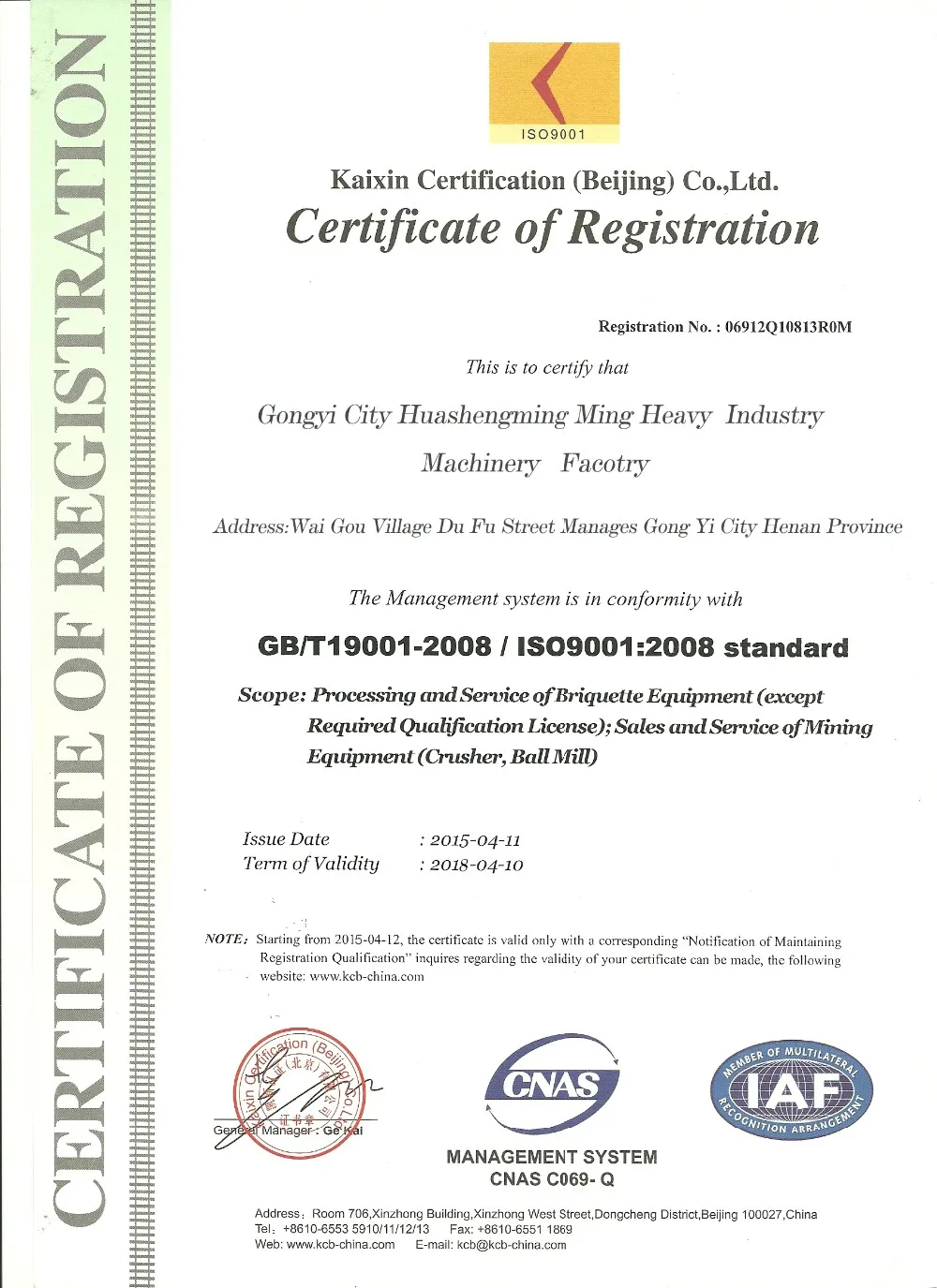

Certifications

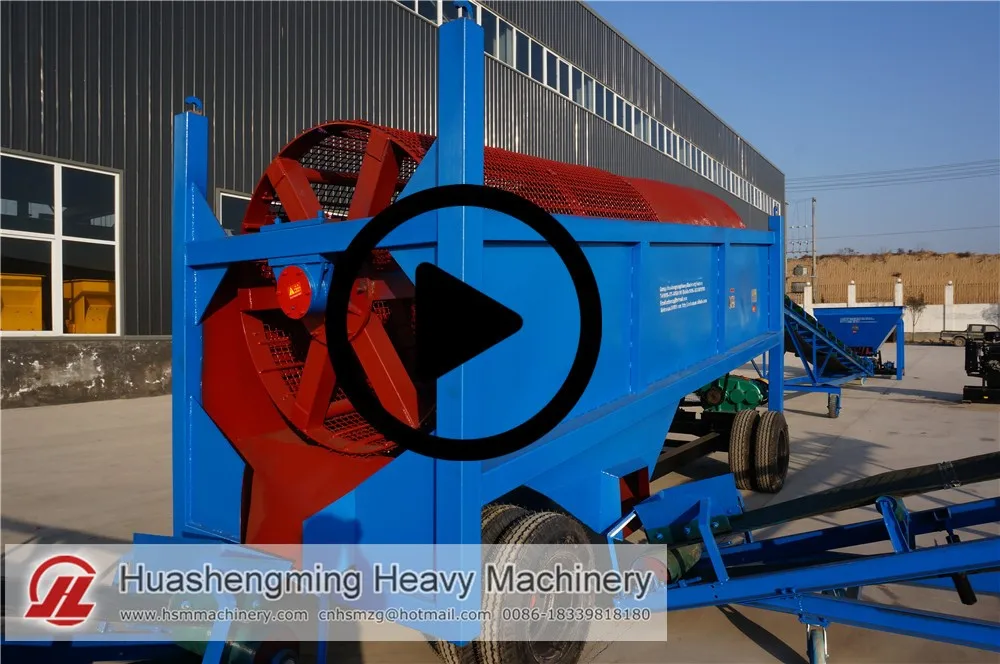

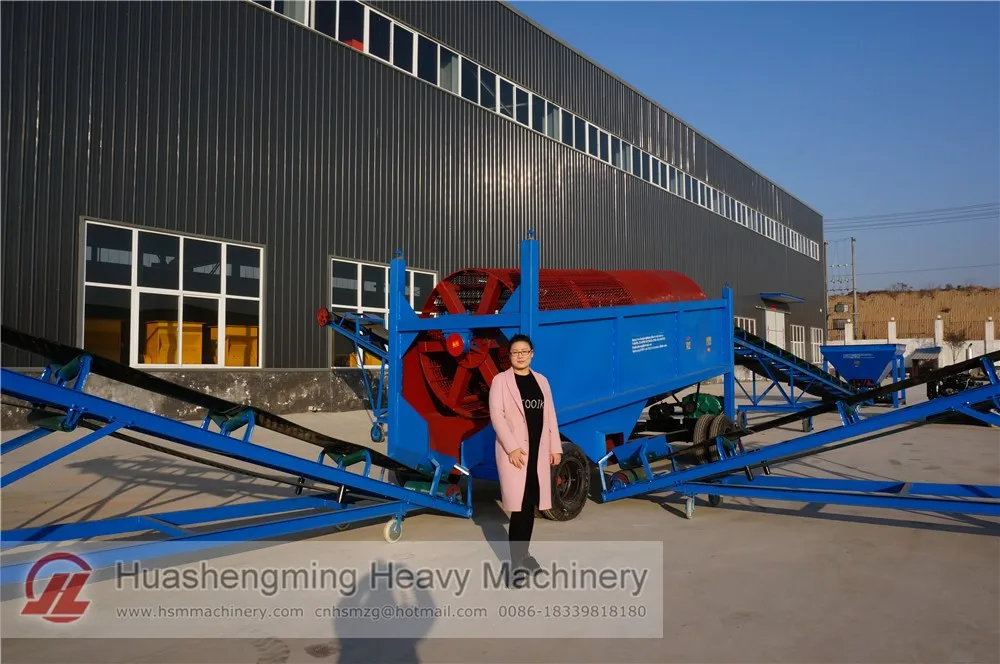

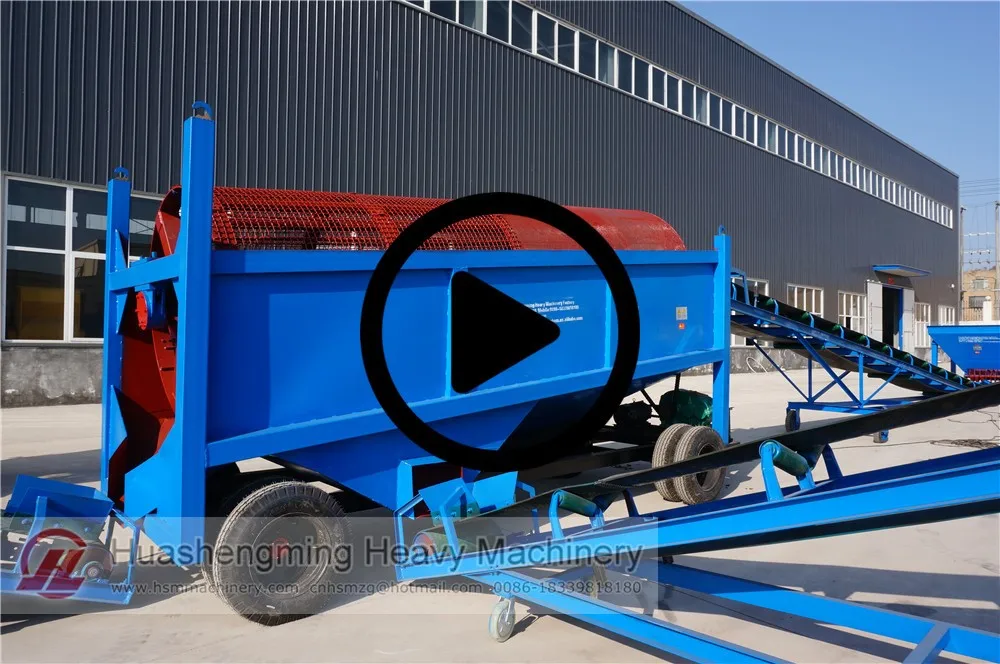

Detailed Images

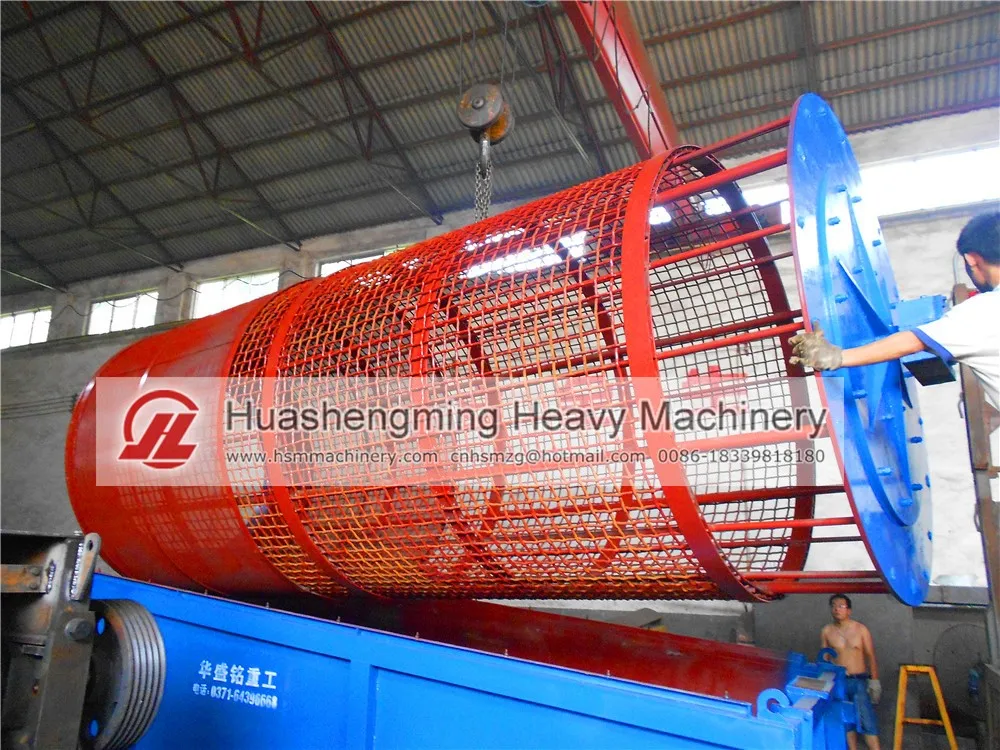

Machine Parts

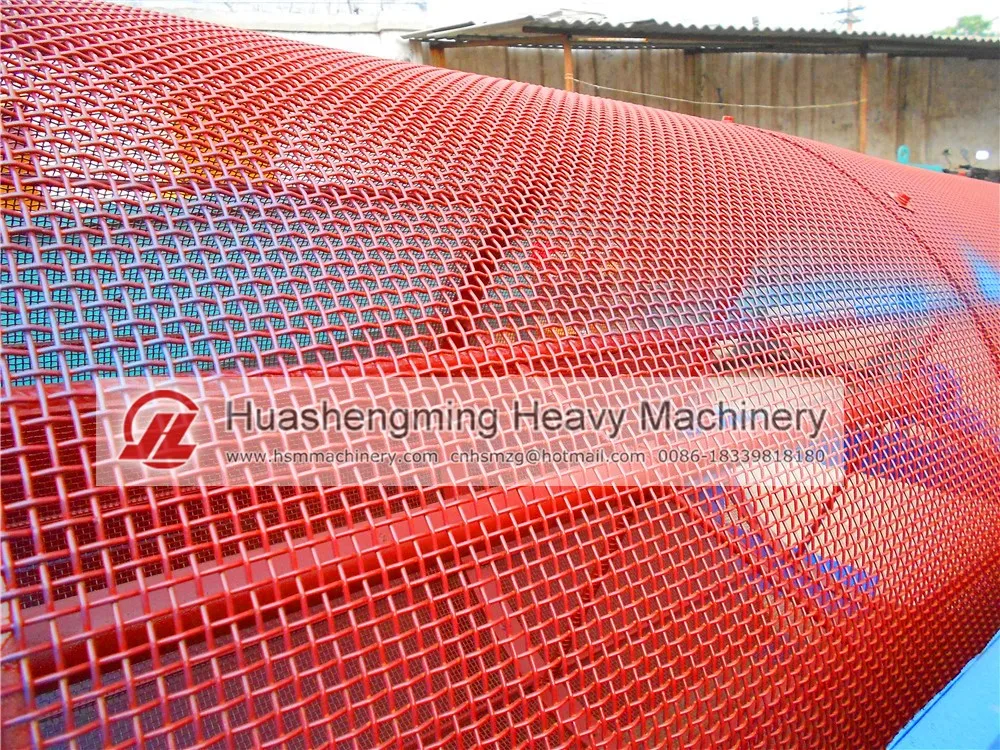

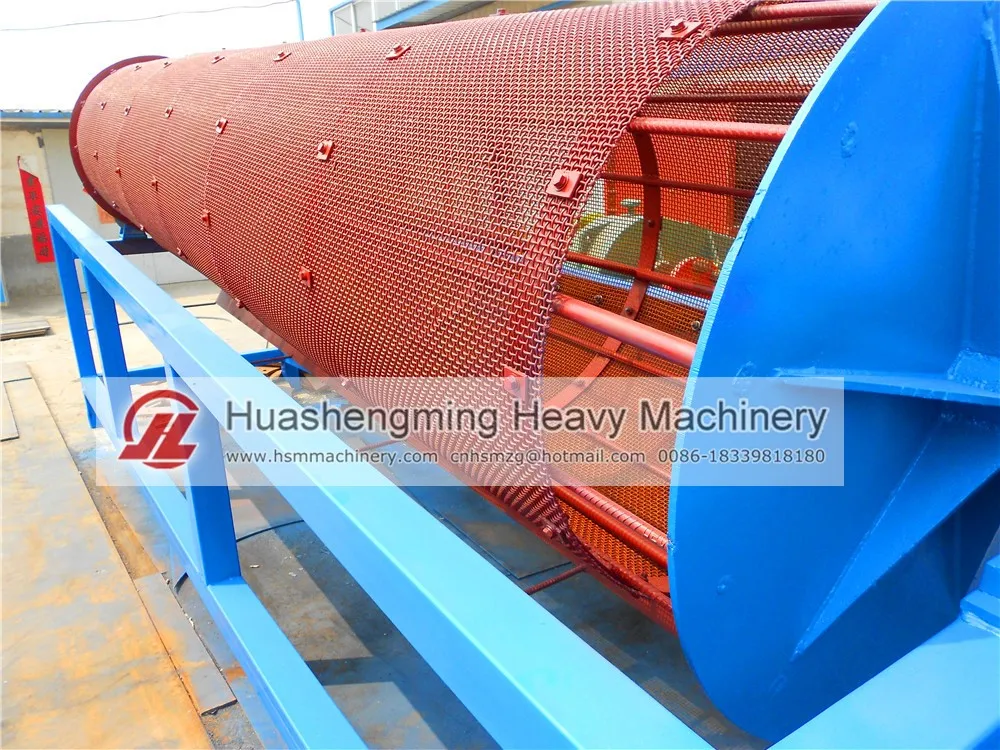

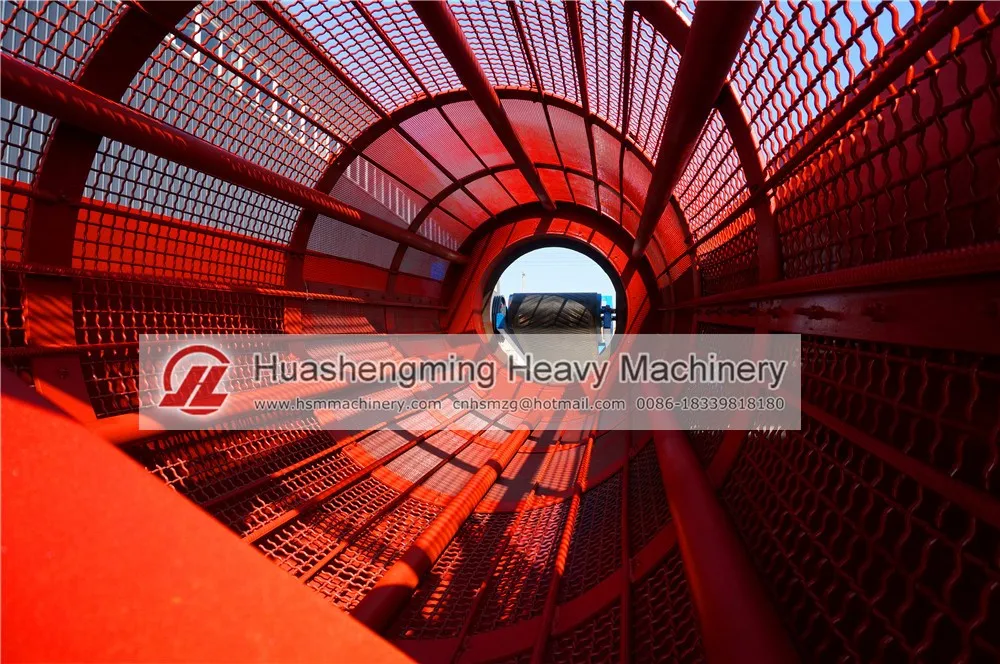

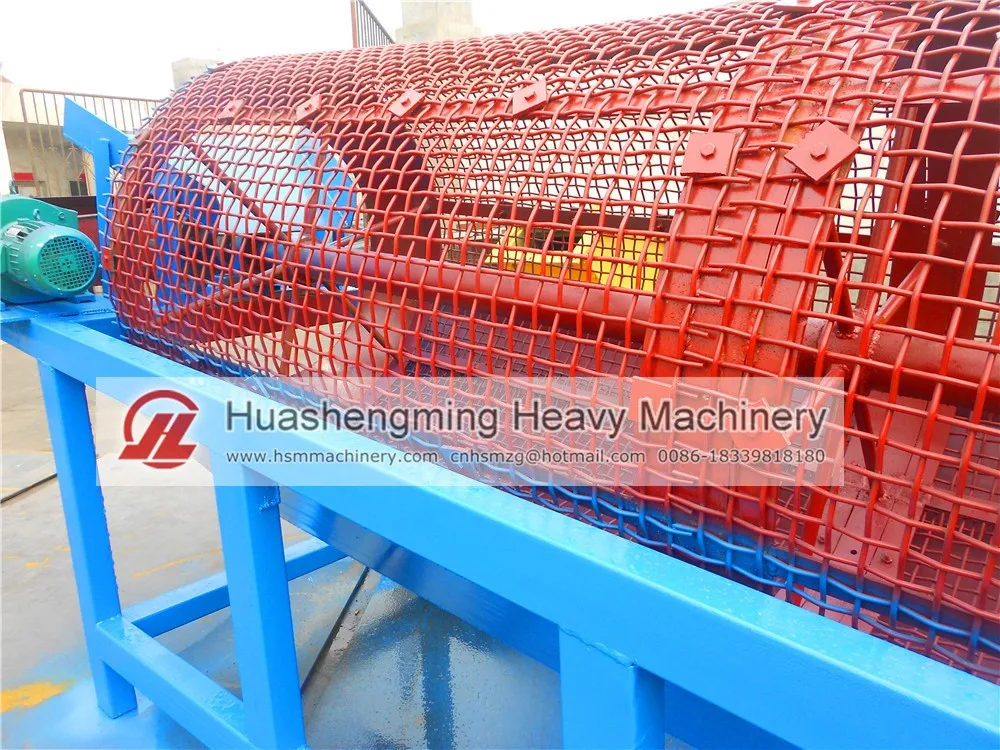

Name: Screen Mesh

Size: Different screen mesh sizes

Brand: HSM

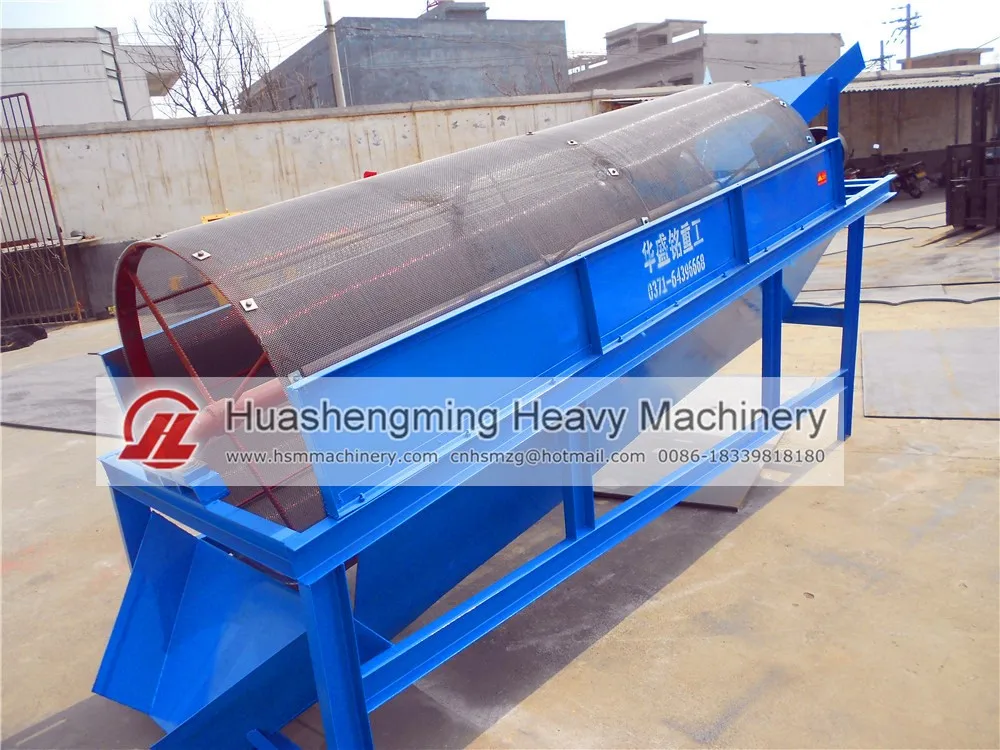

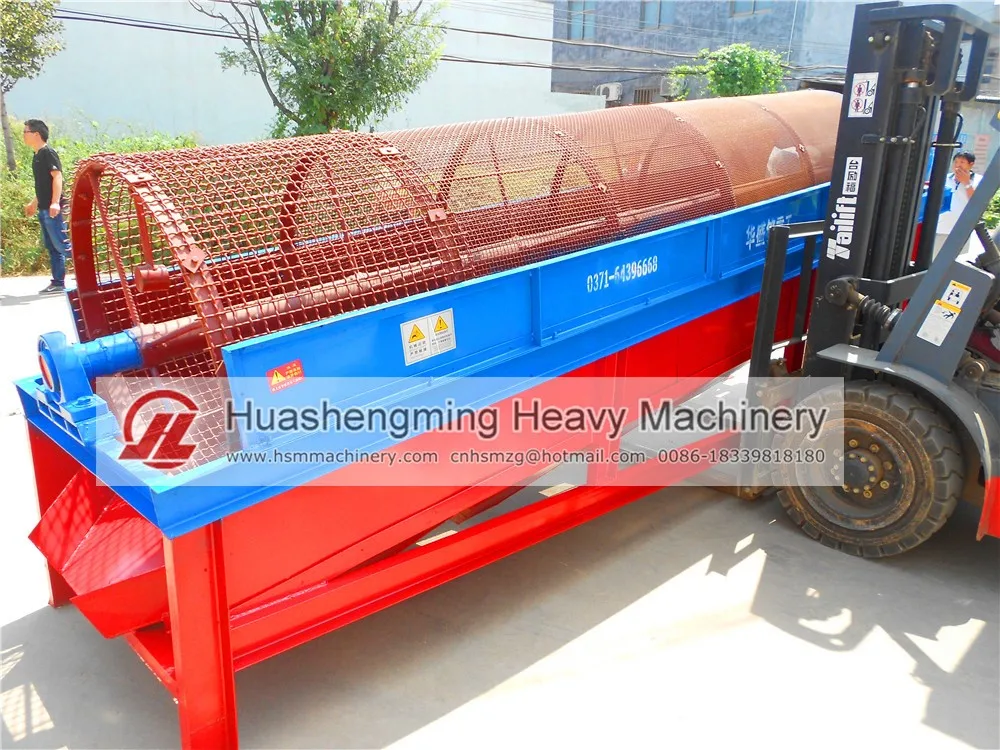

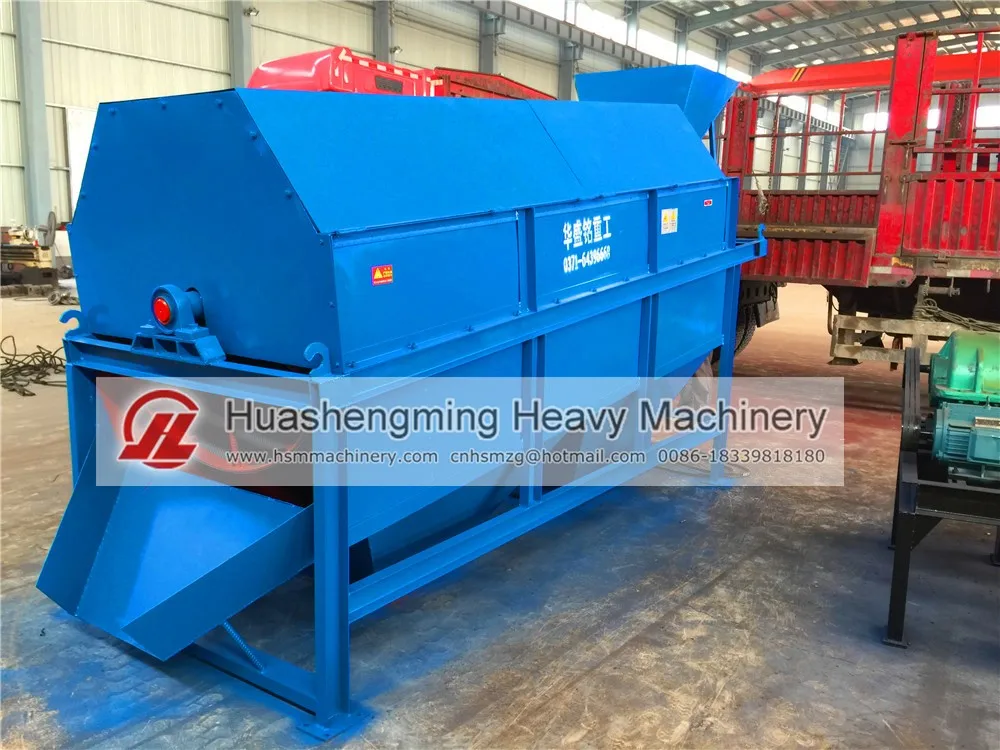

Trommel Screen

Machine Parts

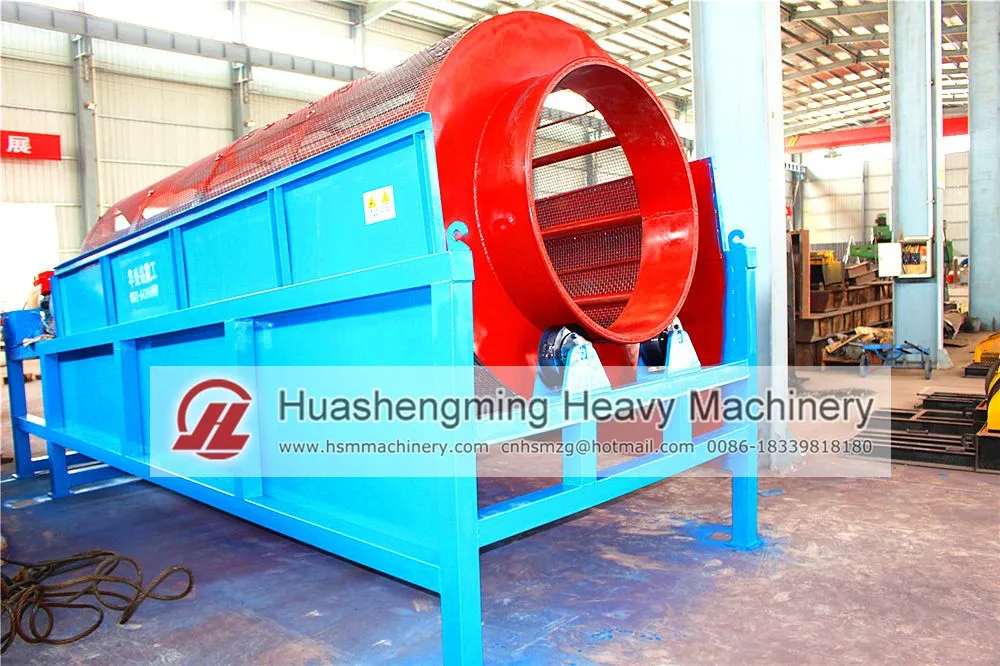

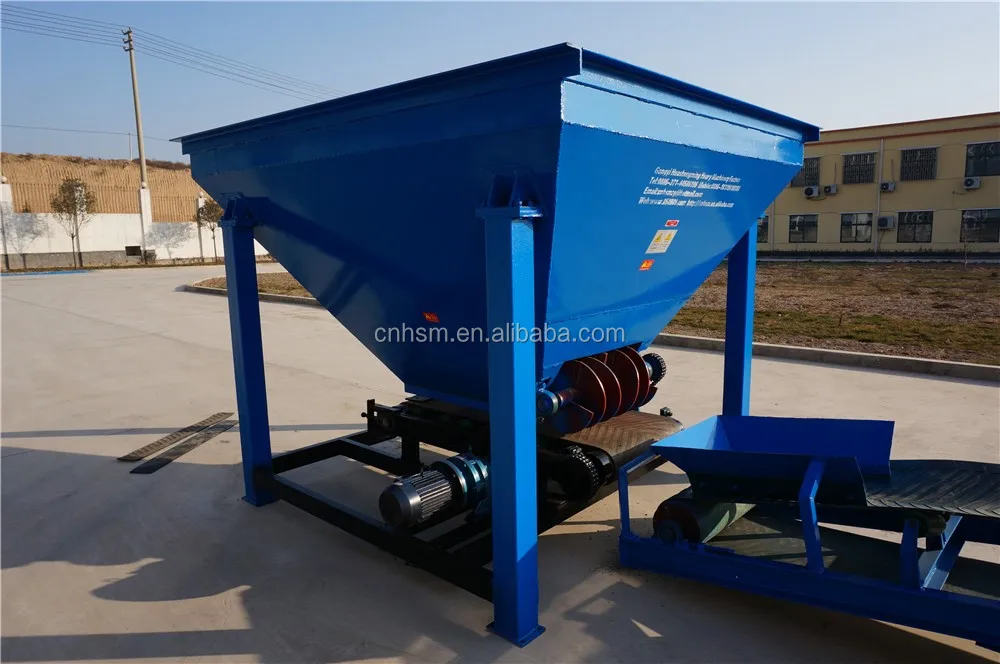

Name: trommel screen hopper
Brand: HSM

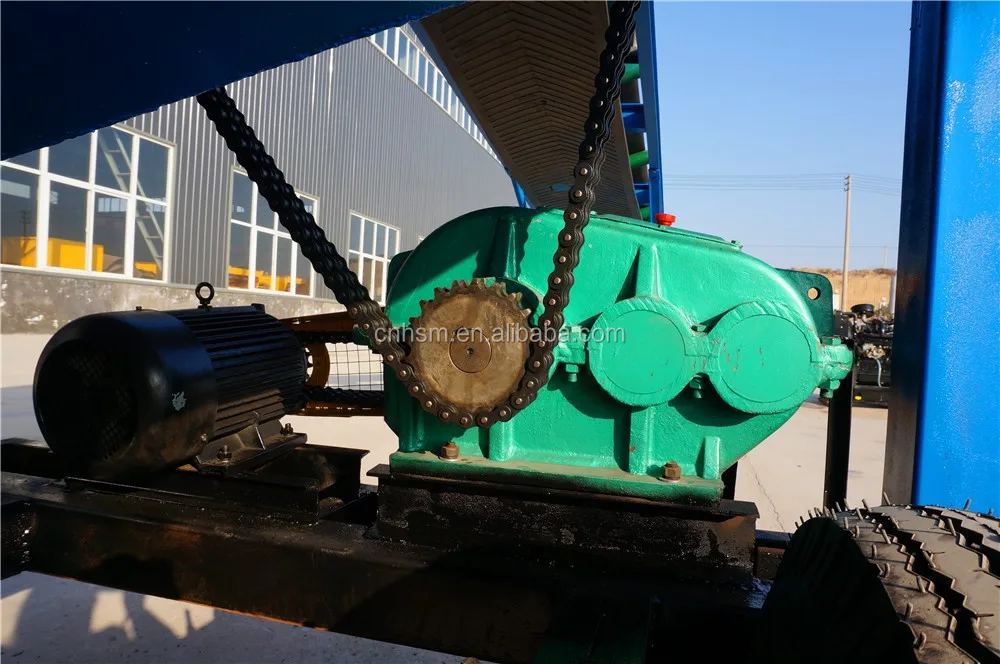

Machine Parts

Name: Motor and Reducer
Brand: China Famous brand warranty 2 years




Machine Parts

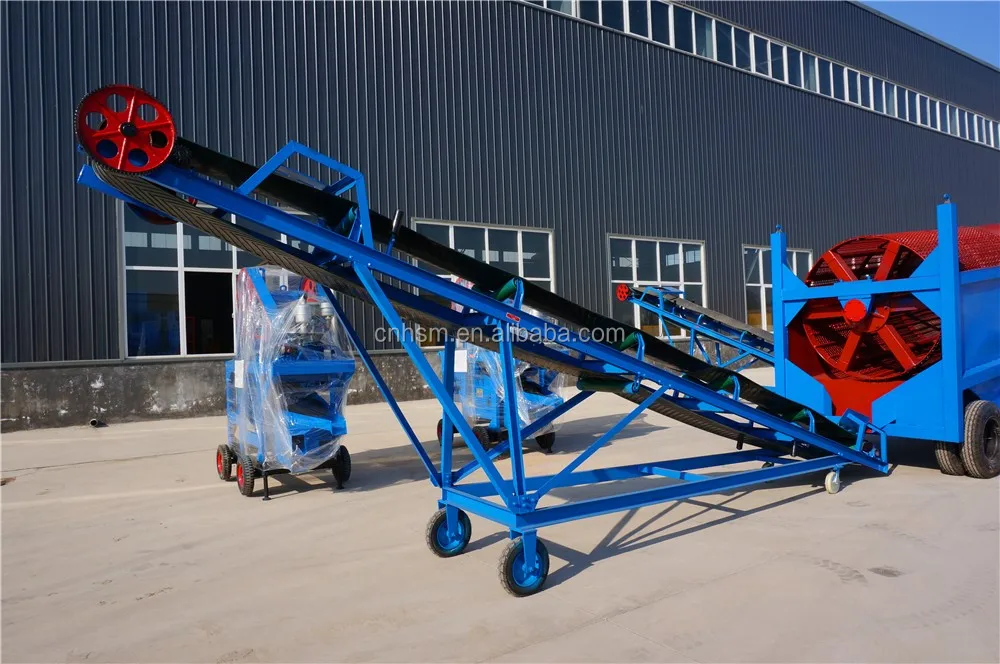

Name: Belt Conveyor
Brand: HSM

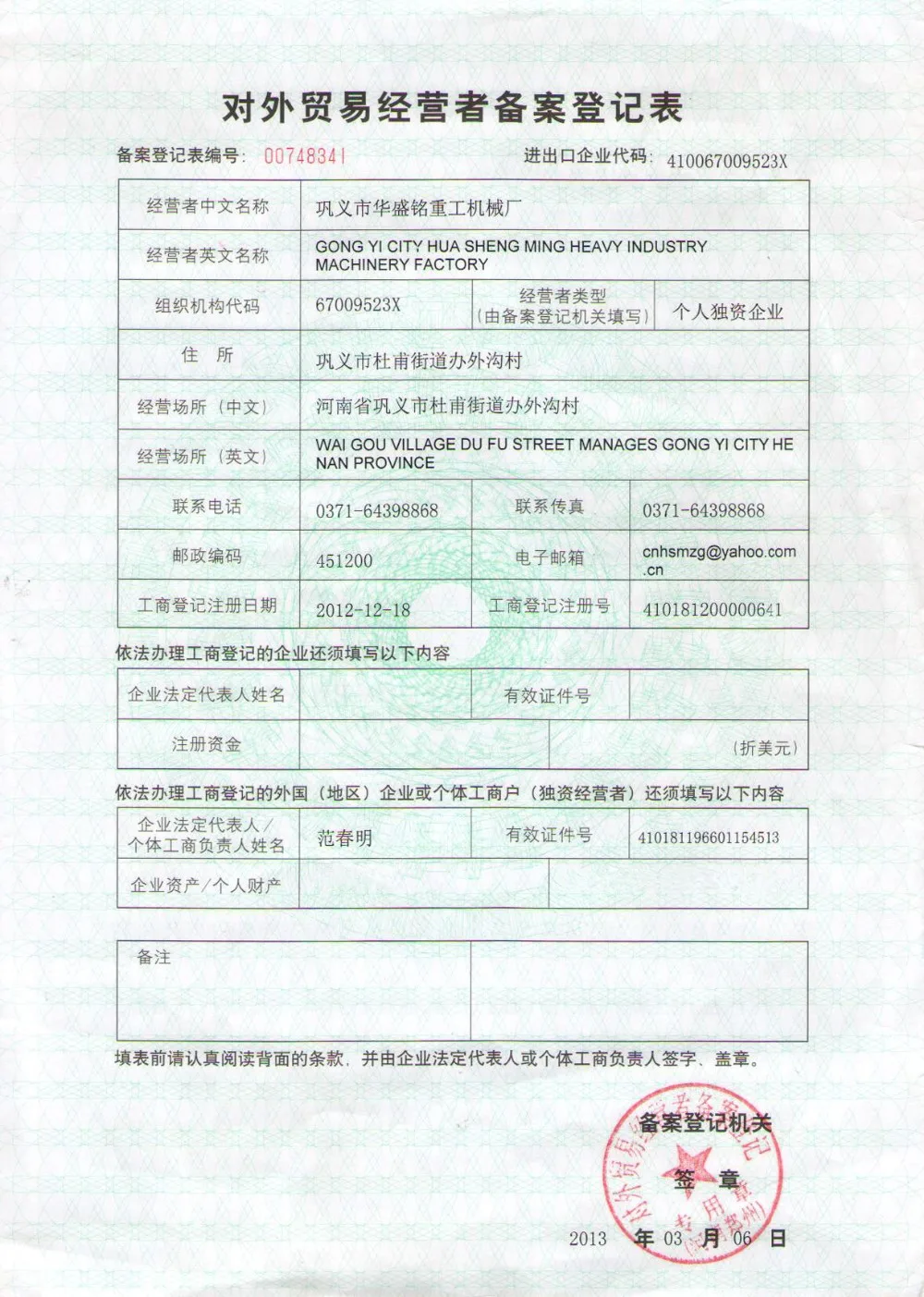

Our Company

Gongyi Huashengming Heavy Machinery Factory are mainly produce crushing and screening equipment.
We have 20 years experience.Our products got ISO CE BV SGS certificate. If your are interested in any of our machine,

pls feel free to contact us.Trommel Screen

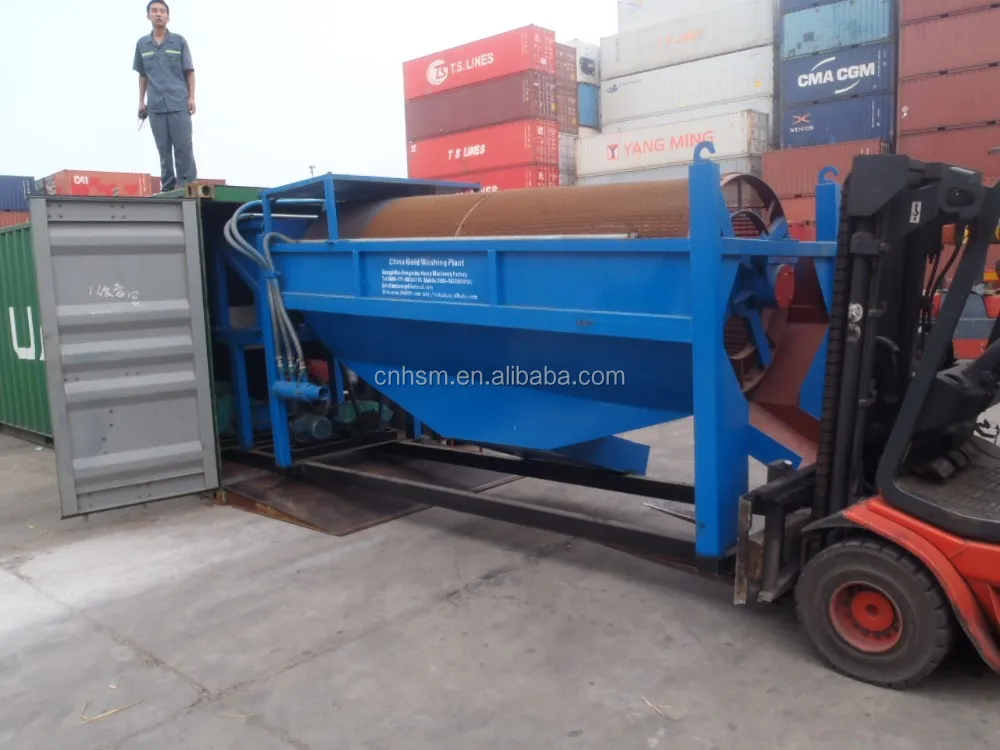

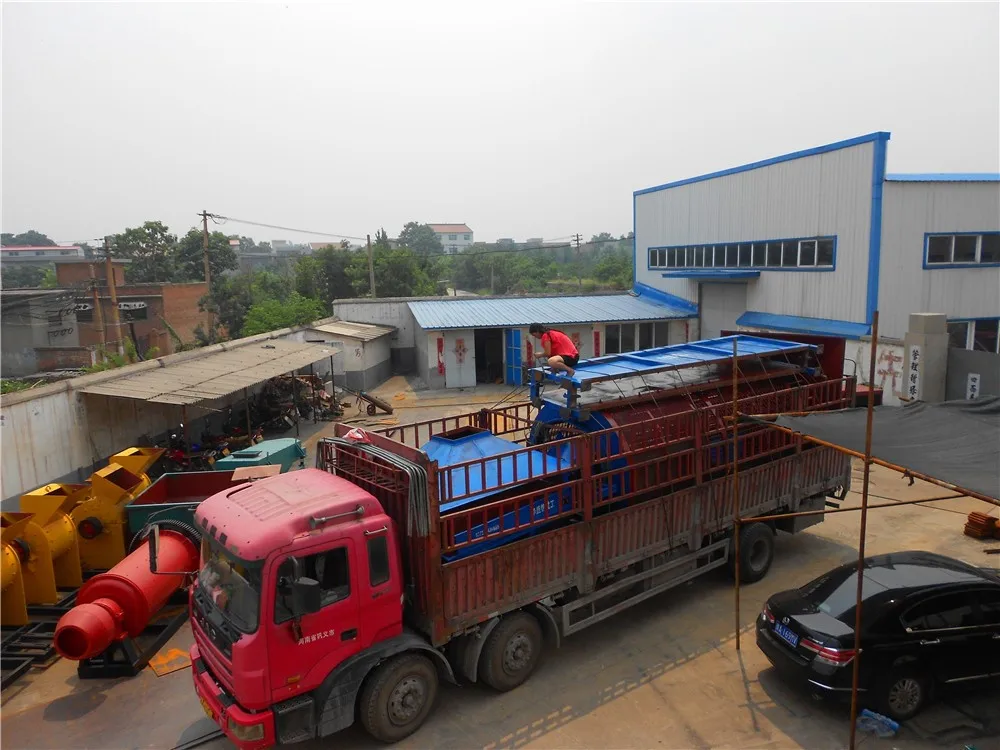

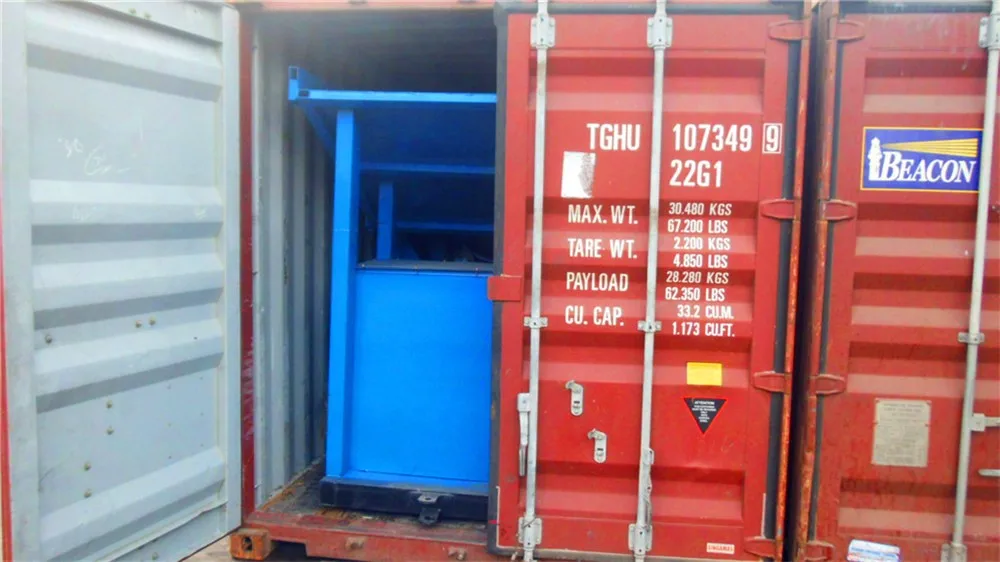

Packing & Delivery
FAQ
Q: Can I visit your factory?
A: Yes. Many domestic and overseas customers visited our factory every year.
Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is 2 years(24 months), and we can supply spare parts also.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
Q: Do you provide producution flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for trommel screen equipment.
Q: Can you test our sample raw material?
A: Yes. You can send your samples to us for testing and analysis.
Q: Have you made the whole trommel screen line?
A: Yes. We have made many large&small scale trommel screen line at home and abroad.
