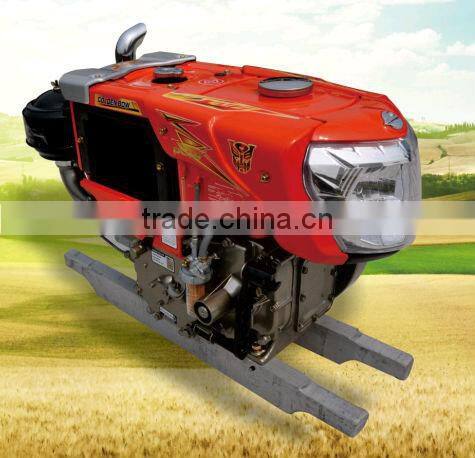

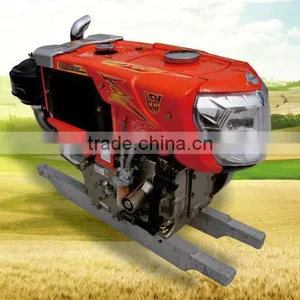

11HP Water Cooled Diesel Engine

Name: 11HP Water Cooled Diesel Engine
Brand: Golden Bow
SKU: 140824828
Availability: InStock

Chongqing Goldenbow Group Power Co., Ltd.

US$ 400 - 550 MOQ: 5 Sets

Key Specifications

Condition:

New

Usage:

Other, Agriculture

Fuel:

Diesel

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, Agriculture

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Water-cooled

Start Kick Start

Place of Origin Chongqing, China

Brand Name Golden Bow

Model Number King Kong JG110

Dimension(L*W*H) 800x348x560mm

Weight 109kg

Certification ISO90001:2008

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Small size and low noise
2.Completely mature technology and quality
3.Highest safety,light weight
4.User-friendly operation

Product Description

Model	Unit	JG110
Type		Single cylinder, Horizontal, water-cooled, 4-cycle
Bore x Stroke	mm	92x90
Displacement	cc	598
Maximum output	Hp(kW)/rpm	11(8.09)/2400
Continuous rated output	Hp(kW)/rpm	9.5(6.99)/2400
Fuel consumption	g/Hp(kW).h	190(258)
Rated speed	rpm	2400
Idle speed	rpm	≤600
Compression ratio		21:1
Maximum torque	kgf.m/rpm	3.8/1600
Valve clearance(cold engine)	mm	0.195-0.235
Cooling system		Radiator
Governor system		Flying hammer centrifugal speed type
Fuel injection pressure	kgf/cm2	120-125
Fuel delivery position		19-21º
Combustion system		(TVCS) Three vortex combustion system
Lubricating system		Forced lubrication with trochoid pump
Lubricating oil		SAE 40 API CF
Fuel		Light diesel oil (SAE No.2-D)
Fuel tank capacity	1	10
Cooling water capacity	1	2.1
Crankcase oil capacity	1	2.8
Starting system		Speed doubling handle by hand / Electric start
Direction of Rotation		Counterclockwise facing flywheel
Measurement	mm	800×348×560
Net weight	kg	109
