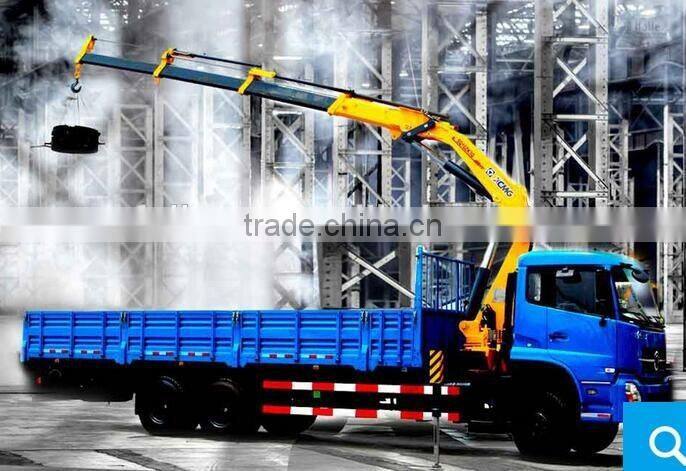

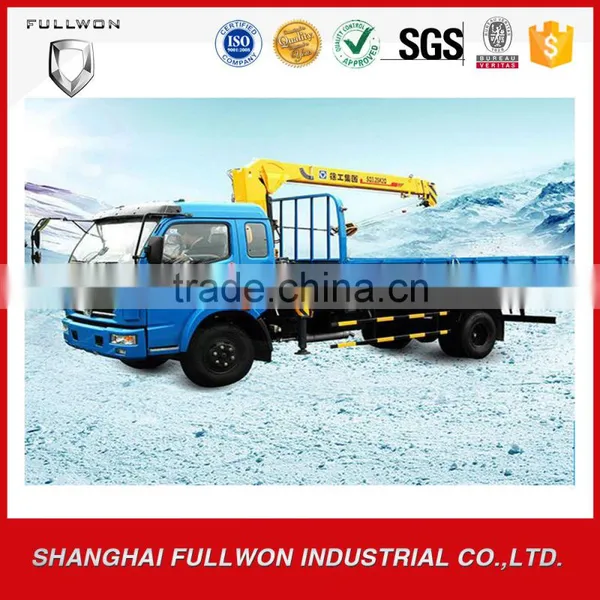

Xcmg 10t Small Pickup Truck Mounted Hydraulic Folding Crane for Sale in Qatar SQ10ZK3Q

Name: Xcmg 10t Small Pickup Truck Mounted Hydraulic Folding Crane for Sale in Qatar SQ10ZK3Q
Brand: XCMG
Availability: InStock

FOB Price

US$ 25,000 - 50,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	Construction	Rated Loading Capacity	10t
Rated Lifting Moment	6.72t.m	Max. Lifting Load	3.5
Max. Lifting Height	42m	Span	7.6m
Brand Name	XCMG	Model Number	SQ10ZK3Q
Certification	CE/ISO9001	Warranty	1 Year
After-sales Service Provided	No overseas service provided

Product Description

Product name	Xcmg 10t small pickup truck mounted hydraulic folding crane for sale in qatar SQ10ZK3Q
Model	SQ10ZK3Q	Unit
Max Lifting Moment	20	t.m
Max Lifting Capacity	10000	kg
Recommend Power Needed At Recommend Oil Flow	28	kw
Max Oil Flow of Hydraulic System	40	L/min
Rated Pressure Of Hydraulic System	28	MPa
Oil Tank Capacity	160	L
Rotation Angle	(360°)All Rotation	。
Crane Weight	3477	kg
Installation Space	1150	mm
Choice of Chassis	DFL1250A9 ; CA1240PK2L7T4EA81; HFC1202KR1K3; EQ5201GFJ6; CA1200PK2L7T3EA80; BJ1317VNPJJ-S5; BJ5253ZKPJJ; CA1253P7K2L11T1E ; EQ1252GFJ; DFL1253AX;
