Home > Transportation > Trailer > Truck Trailer > SEENWON Brand Hot Popular 15ton Small Farm Dump Trailer

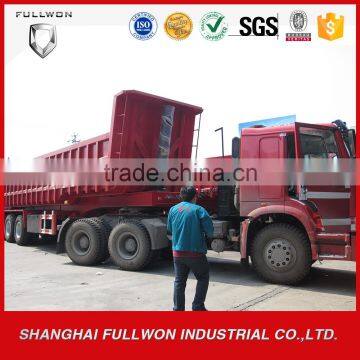

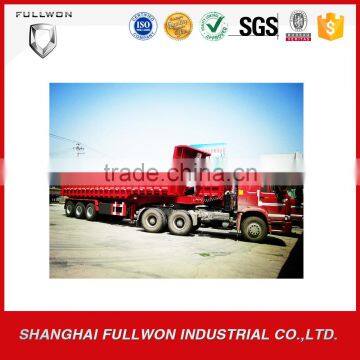

SEENWON Brand Hot Popular 15ton Small Farm Dump Trailer

Name: SEENWON Brand Hot Popular 15ton Small Farm Dump Trailer
Brand: seenwon
SKU: 140823922
Availability: InStock

Shanghai Fullwon Industrial Co., Ltd.

US$ 3,000 - 7,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Aluminum / Alloy

Certification:

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Aluminum / Alloy

Certification CE

Size 11280*2495*3970mm

Max Payload 15ton

Brand Name seenwon

Model Number sw 156

Product Description

Product name	SEENWON brand Hot Popular 15ton small farm dump trailer
Dimension	1128024953970mm ( outside)
Dimension	1050023001700mm (work space ) size can be your choose
Tare weight	About 15600KGS
Total Volume（m3）	37 m³ or less than 60tons
Side wall thickness（mm）	6mm Q235 steel
Bottom plate thickness(mm)	8mm /Q235 steel
Lifting system	Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Lifting system	(FC196 MODEL use for 9 m length trailer)
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/HUAJING brand 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber; 2 pieces of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	Transport by bulk cargo carrier, RORO or 40HQ container.
