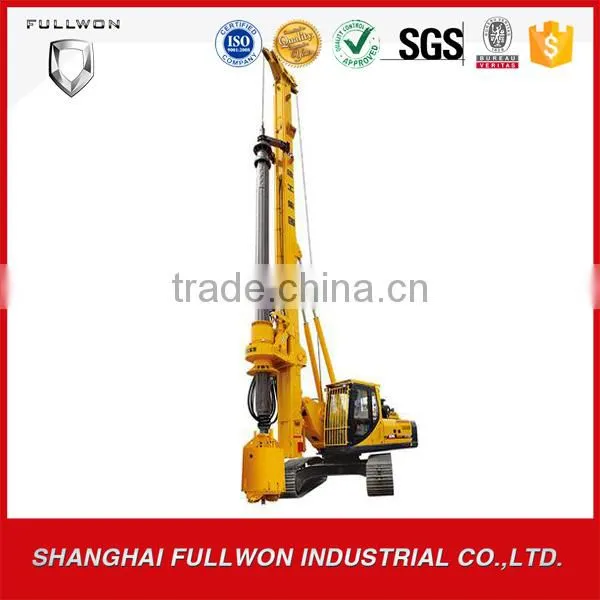

SEENWON XR400E excavator mounted drilling rig

Name: SEENWON XR400E excavator mounted drilling rig
Brand: SEENWON
Availability: InStock

FOB Price

USD $50,000 - $100,000 / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Efficiency	High Efficiency
Piling Speed(m/min)	72m/min	Brand Name	SEENWON
Model Number	SW400E	Weight	113000kg
Dimension(LWH)	2075535003910mm	Certification	ISO
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

SEENWON XR400E excavator mounted drilling rig
Project	Unit	Parameter
Max.Drilling Diameter
Uncased	(mm)	φ2800/φ2500
Cased	(mm)	φ2200
Max.Drilling Depth	(m)	103

Dimension
Working condition L × W × H	(mm)	10995×4900×26640
Transportation condition L × W × H	(mm)	20755×3500×3910
Overall Drilling Weight	(t)	113

Engine
Model	-	CUMMINS QSX15-C500
Rated Power	(kW)	373/2100

Hydraulic System
Working pressure	(MPa)	35

Rotary Drive
Max. output torque	(kN.m)	400
Rotary speed	(r/min)	5.5~21
Spin off speed	(r/min)	-

Pull-Down Cylinder
Max.pull-down piston push	(kN)	300
Max.pull-down piston pull	(kN)	400
Max.pull-down piston stroke	(mm)	6000

Crowd Winch
Max.pull-down piston push	(kN)	400
Max.pull-down piston pull	(kN)	400
Max. pull-down piston stroke	(mm)	18000

Main Winch
Max.pulling force	(kN)	360
Max. single-rope speed	(m/min)	60
Diameter of the steel wire rope	(mm)	36

Auxiliary Winch
Max. Pulling force	(kN)	100
Max. single-rope speed	(m/min)	65
Diameter of the steel wire rope	(mm)	20

Drilling mast
Left/right inclination of mast	(°)	42464
Front inclination of mast	(°)	5
Rotary table slewing angle	(°)	360

Traveling
Max. traveling speed	(km/h)	1.3
Max.grade ability	(%)	35

Crawler
Track shoe width	(mm)	800
Distance between tracks	(mm)	3500~4900
The length of crawler	(mm)	5600
Average ground pressure	(kPa)	120
