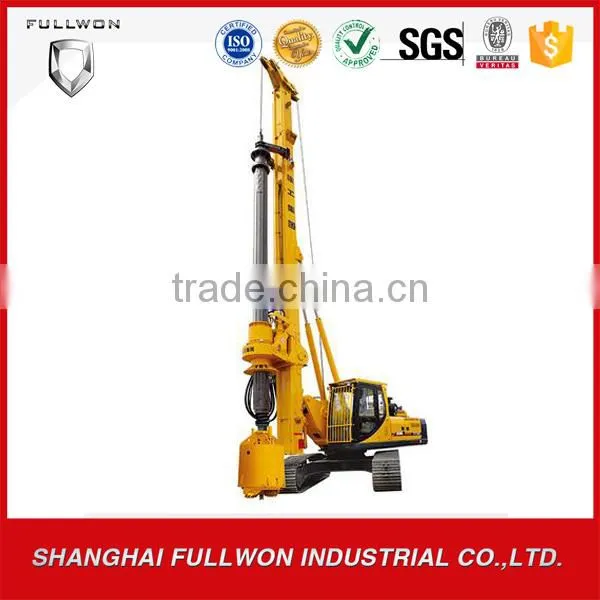

SEENWON SW220D Soil Investigation Drilling Rig

Shanghai Fullwon Industrial Co., Ltd.
SEENWON SW220D Soil Investigation Drilling Rig thumbnail-1
SEENWON SW220D Soil Investigation Drilling Rig photo-1
US$ 50,000 - 100,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Efficiency:
High Efficiency
Piling Speed(m/min):
72m/min
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Efficiency High Efficiency
Piling Speed(m/min) 72m/min
Brand Name SEENWON
Model Number SW220D
Weight 70000kg
Dimension(L*W*H) 16355*3500*3510mm
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description
SEENWON SW220D soil investigation drilling rig
Project
Unit
Parameter
Max.Drilling Diameter
Uncased
(mm)
φ2000
Cased
(mm)
φ1700
Max.Drilling Depth
(m)
80
Dimension
Working condition L × W × H
(mm)
10260×4400×22120
Transportation condition L × W × H
(mm)
16355×3500×3510
Overall Drilling Weight
(t)
70
Engine
Model
-
CUMMINS  QSL-325
Rated Power
(kW)
242/2100
Hydraulic System
Working pressure
(MPa)
35
Rotary Drive
Max. output torque
(kN.m)
220
Rotary speed
(r/min)
7~22
Spin off speed
(r/min)
90
Pull-Down Cylinder
Max.pull-down piston push
(kN)
200
Max.pull-down piston pull
(kN)
200
Max.pull-down piston stroke
(mm)
5000
Crowd Winch
Max.pull-down piston push
(kN)
-
Max.pull-down piston pull
(kN)
-
Max. pull-down piston stroke
(mm)
-
Main Winch
Max.pulling force
(kN)
230
Max. single-rope speed
(m/min)
70
Diameter of the steel wire rope
(mm)
30
Auxiliary Winch
Max. Pulling force
(kN)
80
Max. single-rope speed
(m/min)
60
Diameter of the steel wire rope
(mm)
20
Drilling mast
Left/right inclination of mast
(°)
42464
Front inclination of mast
(°)
5
Rotary table slewing angle
(°)
360
Traveling
Max. traveling speed
(km/h)
1.5
Max.grade ability
(%)
35
Crawler
Track shoe width
(mm)
800
Distance between tracks
(mm)
3250～4400
The length of crawler
(mm)
5715
Average ground pressure
(kPa)
90
