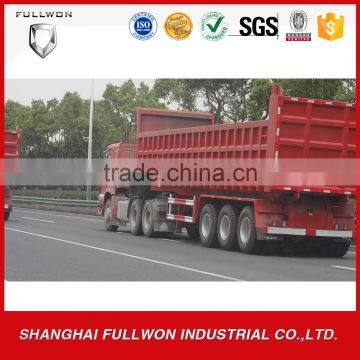

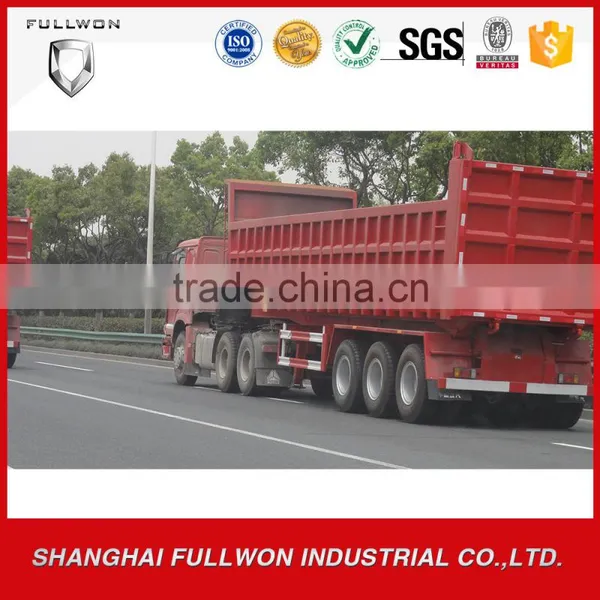

SEENWON Most Popular Best Selling 15ton Small Farm Dump Trailer

Name: SEENWON Most Popular Best Selling 15ton Small Farm Dump Trailer
Brand: seenwon
Availability: InStock

FOB Price

US$ 3,000 - 7,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Semi-Trailer	Material	Aluminum / Alloy
Certification	CE	Size	1128024953970mm
Max Payload	15ton	Brand Name	seenwon
Model Number	sw 156

Product Description

Product name	SEENWON Most Popular Best Selling 15ton small farm dump trailer
Dimension	1128024953970mm ( outside)
Dimension	1050023001700mm (work space ) size can be your choose
Tare weight	About 15600KGS
Total Volume（m3）	37 m³ or less than 60tons
Side wall thickness（mm）	6mm Q235 steel
Bottom plate thickness(mm)	8mm /Q235 steel
Lifting system	Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder
Lifting system	(FC196 MODEL use for 9 m length trailer)
Chassis
Main Beams	Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel
Axle	3 axles, FUWA/HUAJING brand 16tons per axles
Landing Gear	JOST (D200T）or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/ America type /
Leaf Spring	90(W)mm13(Thickness)mm10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber; 2 pieces of 45L air tanks.
Rim	9.00-22.5/8.00-20/8.5-20 China Brand
Tire	/12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional
ABS	Optional
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories	One standard tool box
Shipping Terms	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
	By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	Transport by bulk cargo carrier, RORO or 40HQ container.

Our Company

Truck

Fullwon is officially authorized 4S dealer and exporter of SINOTRUK, Professional on the truck for more than 15 years, also cooperate with:

_ Dongfeng

_ Qingling (Isuzu)

_ Foton

_ Shacman

_ Iveco

_ Kinglong

etc

Construction equipment

The super dealer of Volvo in China, who are providing all kinds of construction equipment, the domestic brands which including:

_ XCMG

_ XGMA

_ Lonking

_ Liugong

_ Changlin

_ Pengpu

_ Hangcha

etc

Spare parts

Full range of spare part for the trucks and construction quipment. Professional spare parts technical support with rich experience.

_ Genuine parts

_ Quality OEM parts

_ Customized parts

_ Seenwon

_ FIAMM

_ Tire

etc

Our certificate

Why choose us

Advantage

* Have Our Own Logistics Company
* Senior Engineers with over 20 Years' Working Experience
* Offer Operation and Maintenance Training
* Have No Limit of Order Quantity

Value-added Services

* Forty-five Predelivery Inspections
* Export Brand New Vehicle with Clean Cab
* Export Vehicle with Full Wax Protection
* Reasonable Packing
* One-stop service supplied
